Installation
3–8 152315 Rev C

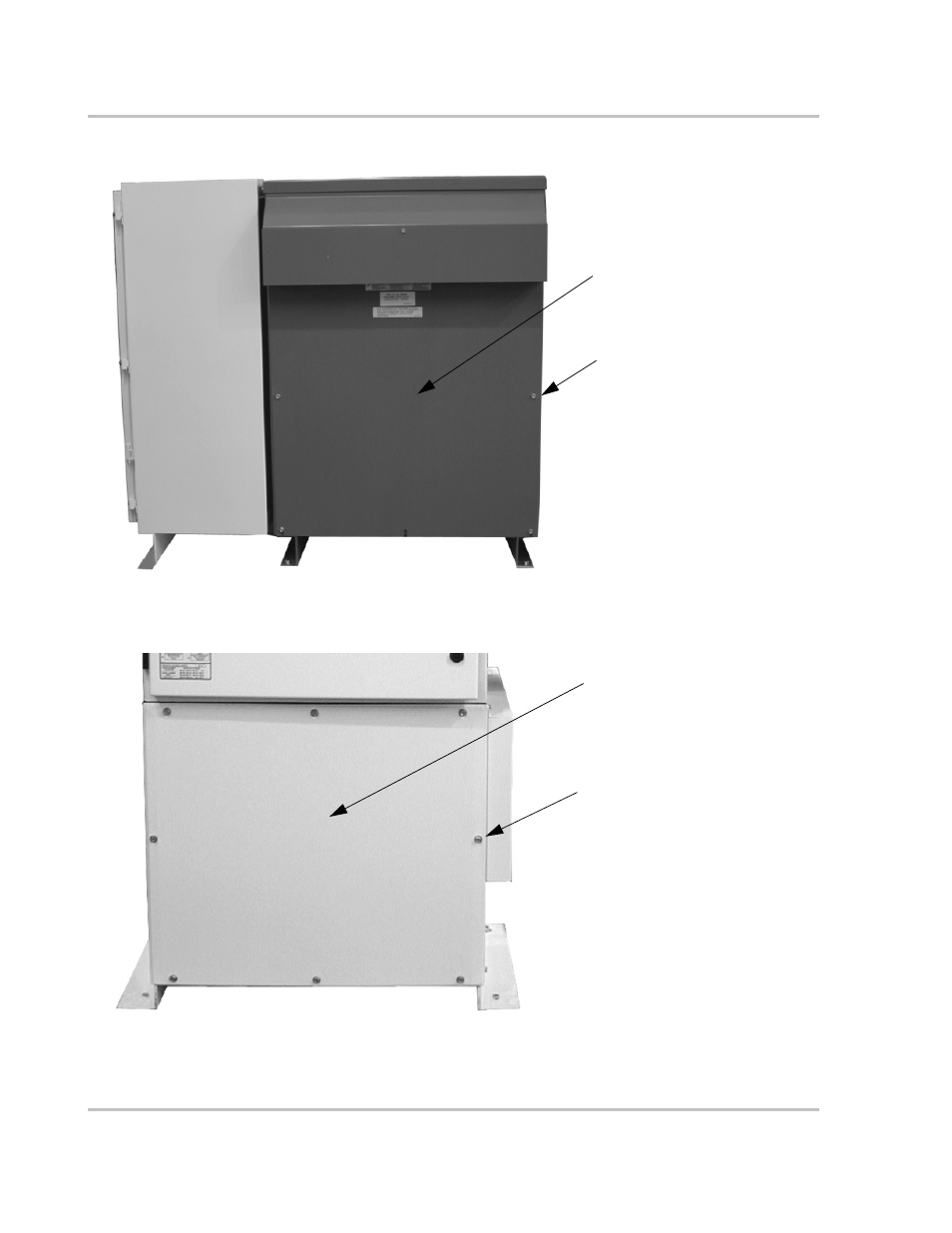

Figure 3-7 Transformer Access Panels
Figure 3-8 Inductor Access Panels
Transformer Access Panel
To Remove the Access Panel:
Loosen and remove the 1/4"
self-tapping sheet metal screws
(x6).
To Replace the Access Panel:
Replace and tighten the 1/4"
self-tapping sheet metal screws.
Inductor Access Panel
To Remove the Access Panel:
Use a Phillips screwdriver to loosen
and remove the 1/4-20 Phillips
round-head bolts (x8).
To Replace the Access Panel:
Replace and tighten the 1/4-20
Phillips round-head bolts.
