Opening or Closing Access Doors
To lock or unlock the front door on the main inverter:
1. Use the 7 mm triangle key provided with the unit.
a) Insert the key in the lock and turn counterclockwise to open;
clockwise to lock.
b) Pull front door open from the right side.

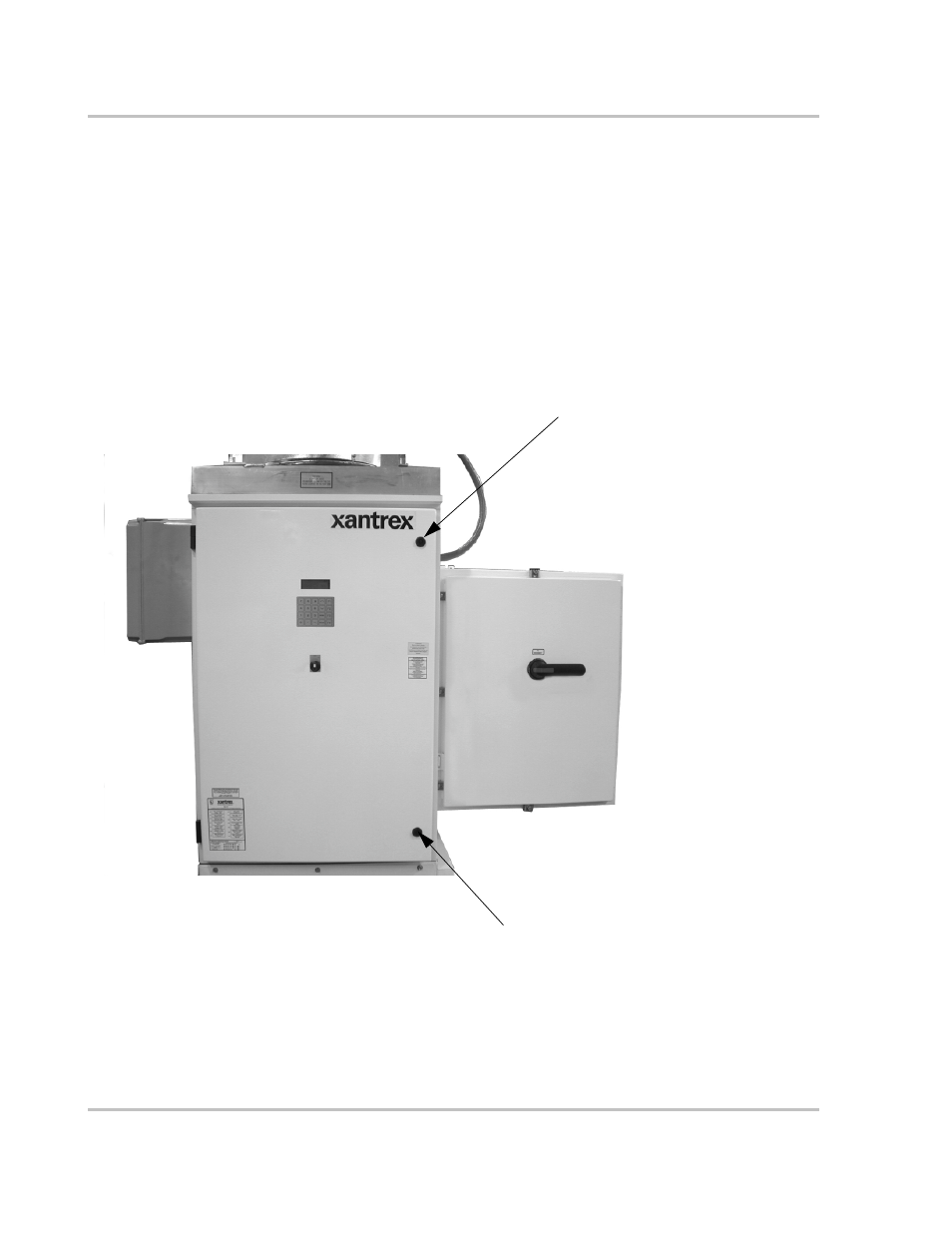

Figure 3-4 Inverter Enclosure Access Doors
Main Inverter Front Door Lock
Main Inverter Front Door Lock
