On/Off Switch
The PV100S incorporates a maintained position ON / OFF switch located on the
front door of the main enclosure. Under normal conditions, the ON / OFF switch is in
the ON position. Turning the switch to the OFF position will initiate an immediate
controlled shutdown of the PV100S and opens both the main AC and DC
contactors within the unit. The main AC and DC contactors cannot be closed
unless the switch is in the
ON position. The PV100S is prevented from being
restarted until the
ON
/
OFF
switch is turned back to the
ON
position.
WARNING: Shock Hazard
Disengaging the main enclosure door interlock switch does NOT remove all hazardous
voltages from inside the inverter. Before attempting to service the PV100S, follow the
de-energize Lockout and Tag procedure on page x.
WARNING: Shock Hazard
Turning the ON/OFF switch to the OFF position does NOT remove all hazardous voltages
from inside the inverter. Before attempting to service the PV100S, follow the de-energize
Lockout and Tag procedure on page x.

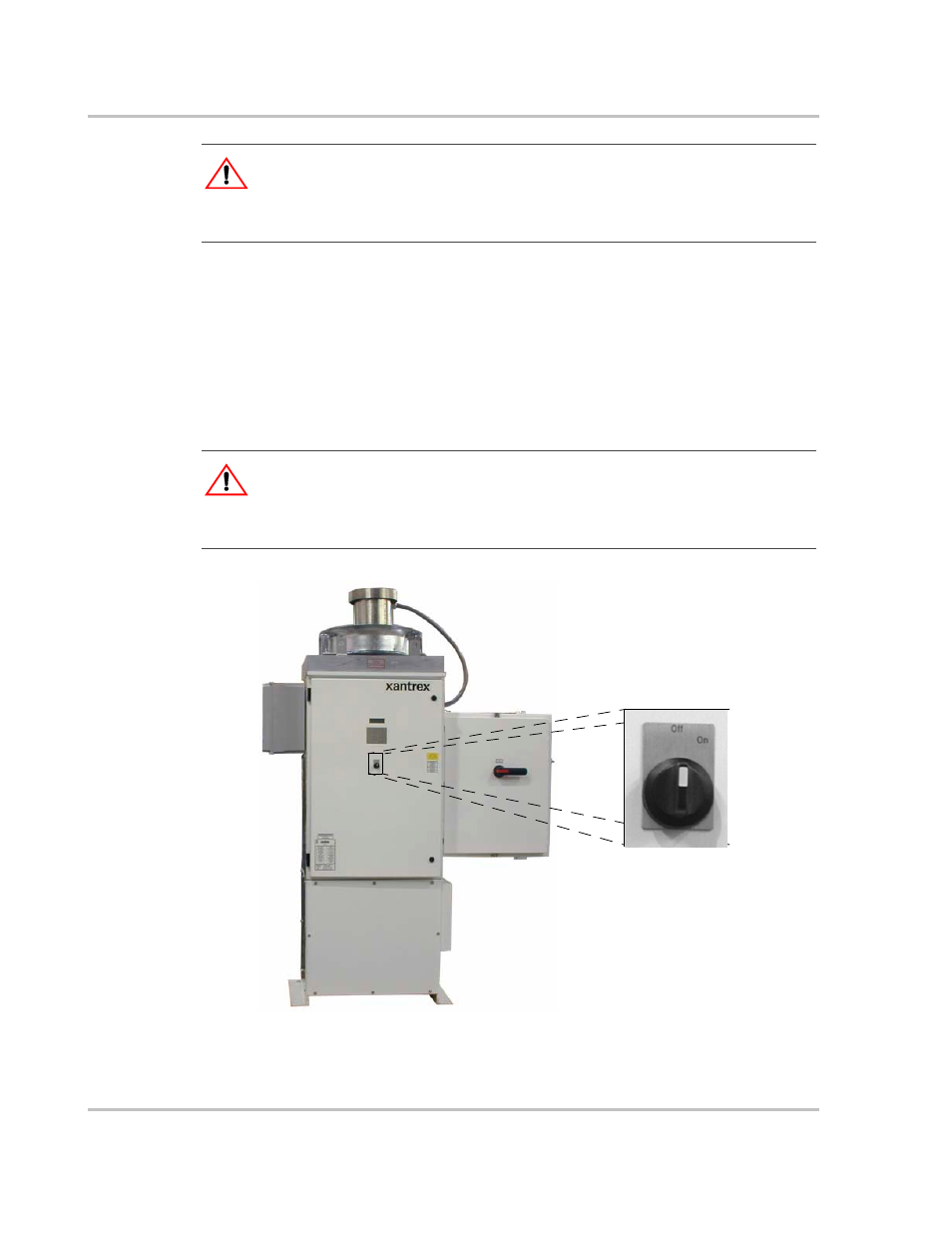

Figure 1-3 On/Off Switch
