York CHAMPION PLUS DNP024 - Manual (Page 22)

036-21366-003-C-0405
22 Unitary Products Group

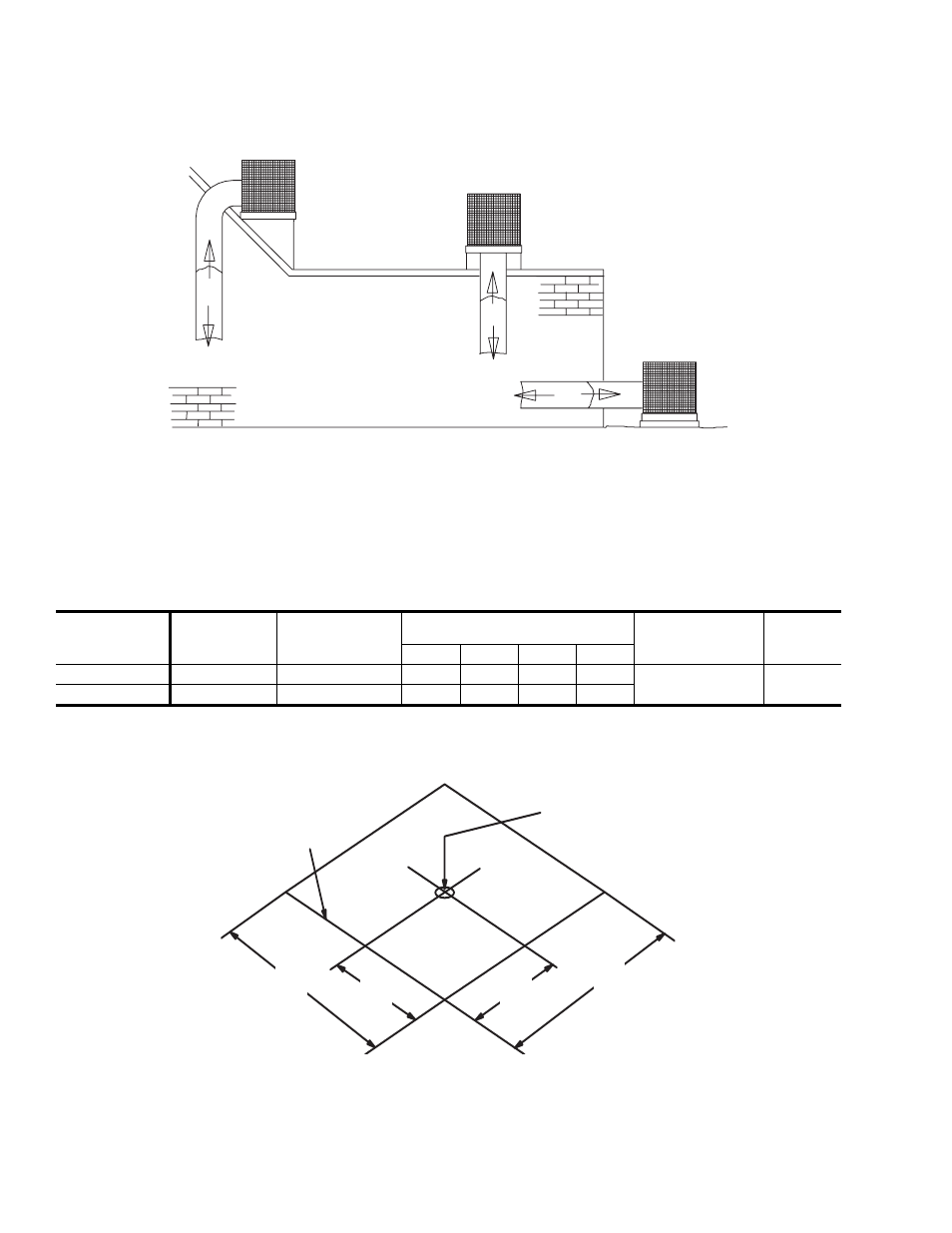

FIGURE 10 - TYPICAL DUCT APPLICATIONS
FIGURE 11 - UNIT CENTER OF GRAVITY
R O O F C U R B
I N S T A L L A T I O N
R E A R D U C T
R O O F C U R B
I N S T A L L A T I O N
B O T T O M D U C T
S L A B O N G R O U N D
I N S T A L L A T I O N
TABLE 16: UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
SIZE
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
CORNER WEIGHTS
(location, lbs.) ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.)
“A” “B” “C” “D”
024, 030, 036 400 395 100 96 98 101
40
8” - 70
14” - 75
042, 048 475 470 133 130 102 104
"A"
"B"
"C"
"D"
49-1/8
25 25
47-1/4
FRONT
OF
UNIT
CENTER OF
GRAVITY
