Chapter 2 Tutorial
NWD210N User’s Guide
29

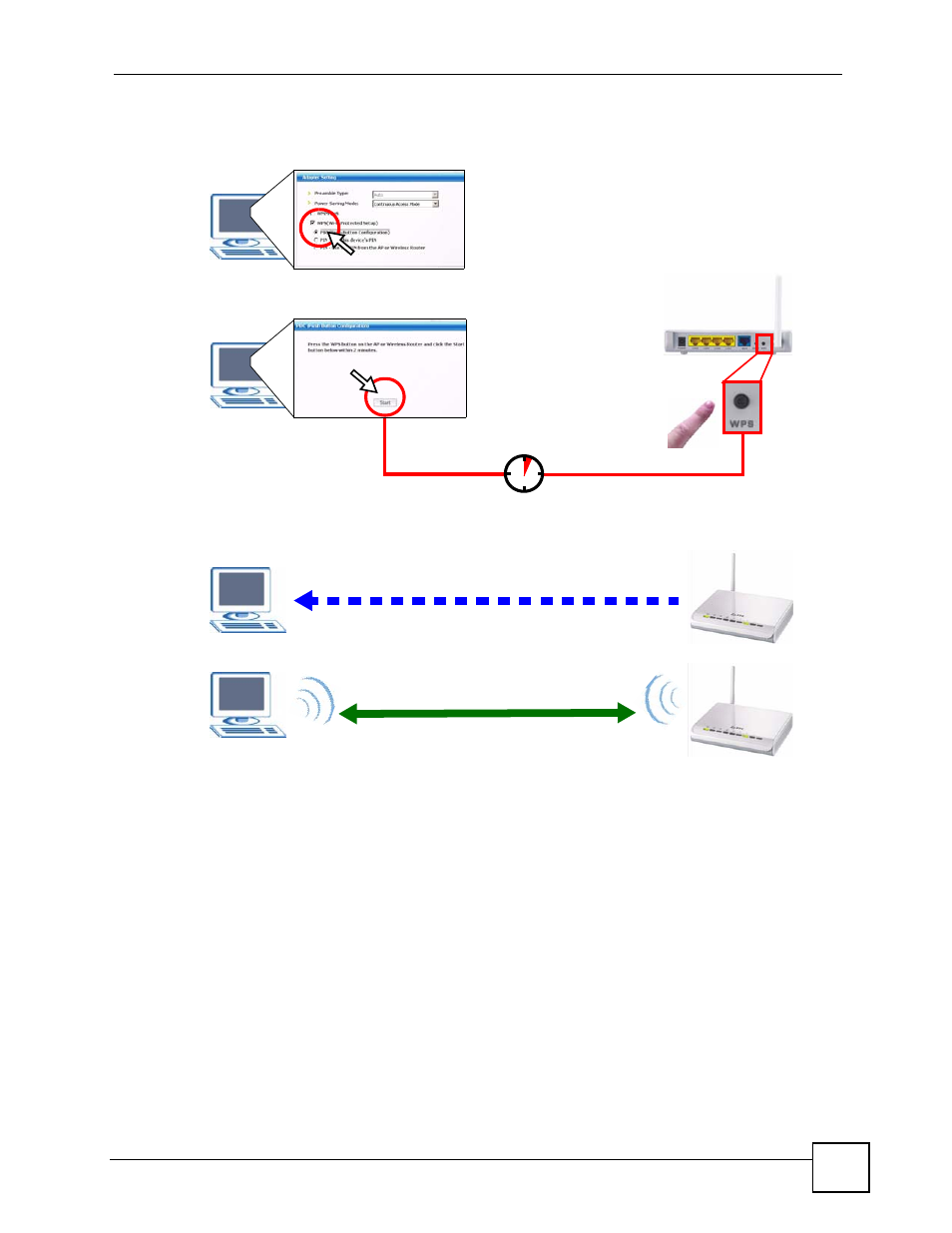

Figure 7 Example WPS Process: PBC Method
2.1.2 PIN Configuration
When you use the PIN configuration method, you need to use both the NWD210N’s utility and
the AP’s configuration interface.
1 In the NWD210N’s Adaptor tab, select WPS and PIN - Use this Device’s PIN. Note
down the PIN in the screen that appears.
2 Enter the PIN number in the AP’s configuration interface. In the NBG334W, use the PIN
field in the Network > Wireless LAN > WPS Station screen.
3 Click the Start buttons on both the NWD210N utility screen and the AP’s configuration
utility (the WPS Station screen on the NBG334W) within two minutes.
The NWD210N authenticates the wireless client and sends the proper configuration settings to
the wireless client. This may take up to two minutes. Then the wireless client is able to
communicate with the NWD210N securely.
NWD210N AP
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
