Walker MC (20 HP) - Manual (Page 32)

Operating Instructions
28

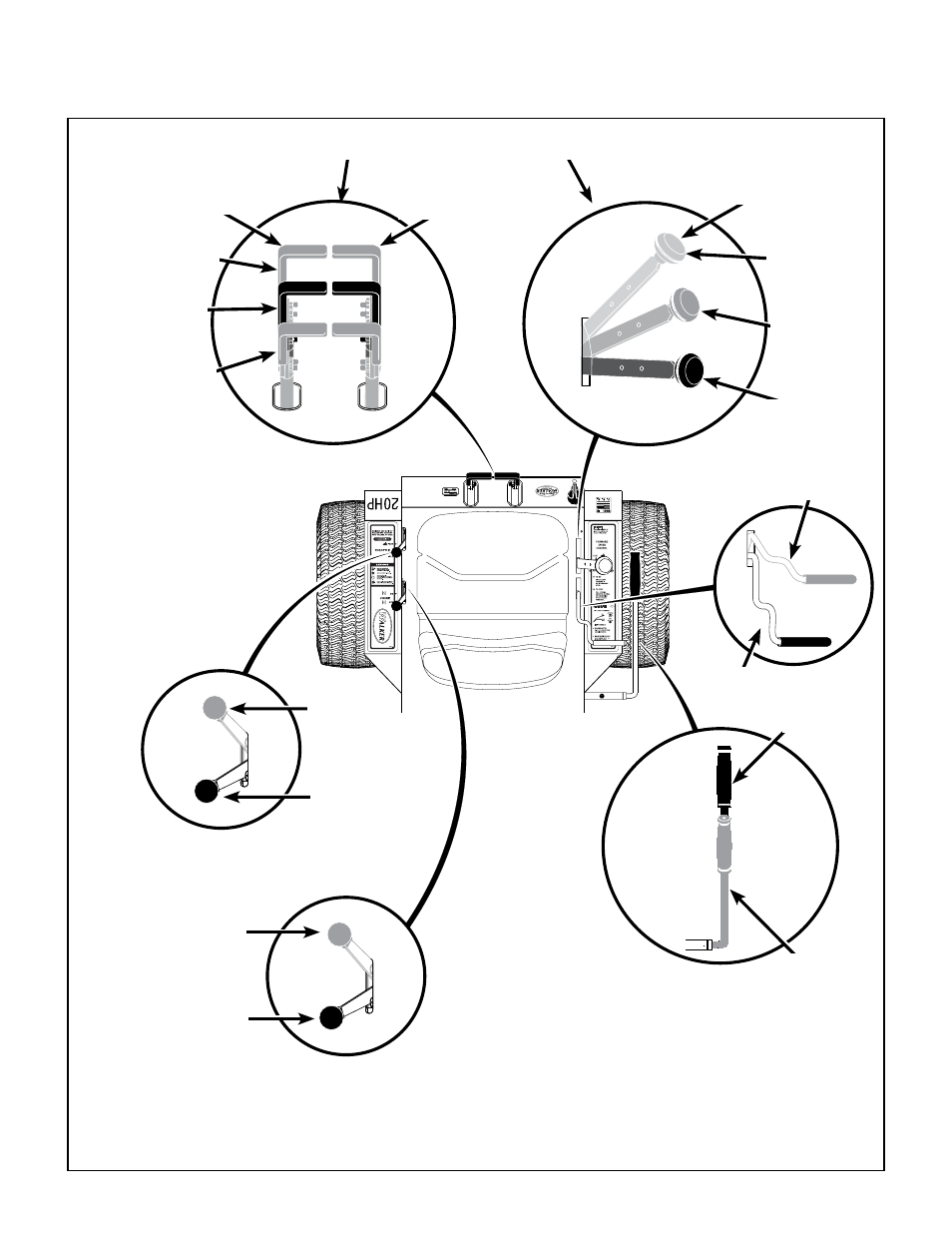

Operating Controls (Top View from Drivers Point of View)
FORWARD SPEED
CONTROL LEVER (FSC)
BLADE CLUTCH (PTO)
Pull Up to Engage
Neutral-Park
Position
Forward Position
(No Control Change)
Engaged
Position
RIGHT WHEEL
STEERING LEVER
LEFT WHEEL
STEERING LEVER
CHOKE
PARKING
BRAKE
THROTTLE
OFF Position
ON Position
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
Fast
Throttle
Position
Idle
Position
Disengaged
Position
Engaged
Position
Disengaged
Position
