Walker MC (20 HP) - Manual (Page 13)

Component Identification
9

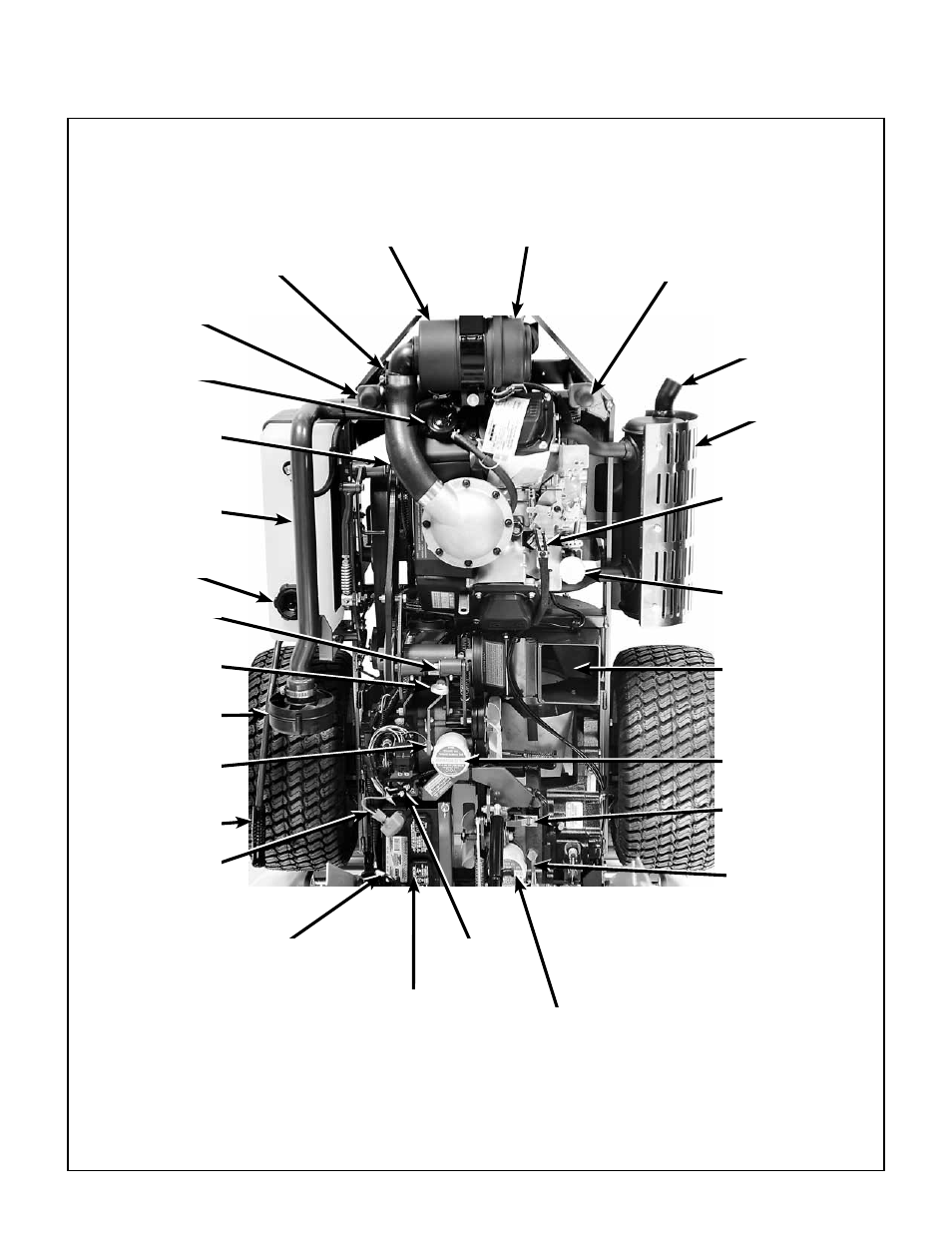

Top View (Engine Compartment)
Muffler Heat
Shield
Muffler
Donaldson
Air Cleaner
Air Cleaner
Cover
Throttle and
Choke Linkage
Neutral Safety
Switch
Air Restriction
Indicator
(Not Visible)
Rubber Bumpers
(Body Support)
Rubber Bumpers
(Body Support)
Oil Fill/
Dipstick
GHS Blower
Fuel Tank Cap
Fuel Pump
Jackshaft
RH Hydrostatic
Transmission
LH Hydrostatic
Transmission
LH Transmission
Lockout Lever
RH Transmission
Lockout Lever
Turbine
Precleaner
PTO Gearbox
Dipstick
Precleaner
Tube
Air Intake
Hose
30 Amp
Circuit Breaker
Positive (+)
Battery Cable
Negative (-)
Battery Cable
PTO
Clutch Lever
Battery
