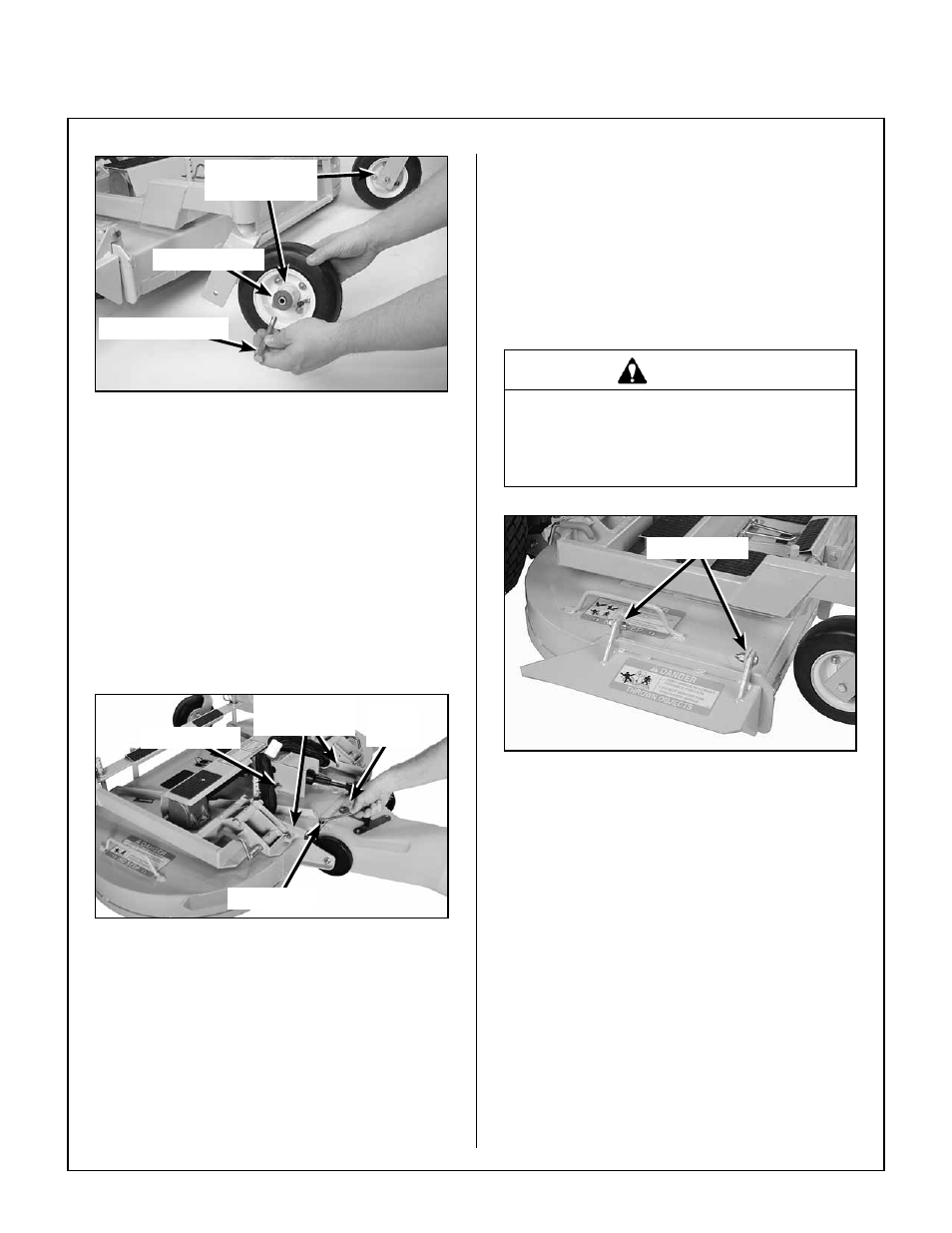

Walker MC (20 HP) - Manual (Page 23)

Assembly Instructions
19
Grease Fitting
Locations
Spacer Washer
Axle Spacer Tube
Deck Caster Wheel Installation
5. Grease the caster wheel bearings and caster
pivot bearings - one grease fitting for each
wheel and each pivot.
Deck Discharge Chute Installation
(GHS Rear Discharge Models Only)
Mount the discharge chute hinge on top of the deck
discharge opening using the 1/4-20 x 1/2 in. socket
button head screw and 1/4-20 ESNA nut. Position
the screw with the head inside of the chute and the
nut on the outside. Attach spring for tilt-up action
from chute to bracket on deck.
Carrier Frame
Tube Sockets Attach
Chute Attach Guard
Nut on Top
Discharge Chute and PTO Shaft Guard
Installation on Rear Discharge Deck
Deck Discharge Shield Installation
(Side Discharge Models Only)
Attach the deck side discharge shield by positioning
the shield hinge lug in front of the deck mount and
fastening with two (2) 3/8-16 x 1-1/4 in. bolts, 3/8-16
ESNA nuts, and 3/8 in. wave spring washers. The
wave washers fit between the two hinging surfaces.
Tighten the nuts until the shield moves freely but is
not loose.
WARNING
DO NOT operate the machine without the
grass deflector shield attached and in the
lowest possible position.
Attach Shield
Discharge Shield Installation
on Side Discharge Deck
PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two (2) 1/4-20 x 1/2 in. bolts.
Tilt-Up Roller Wheel Installation
Mount the two (2) tilt-up roller wheels on the brack-
ets on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. wave spring washer and
3/8-16 in. Whiz locknut. Tighten the axle bolt until
the wheel rolls freely, but is not loose.
