Connecting a Component Video source device
The projector provides one Component input socket that allows you to connect Component Video output from DVD
player or other equipment.
z
Make sure you have Component cable; this cable is not a standard part in shipping content.

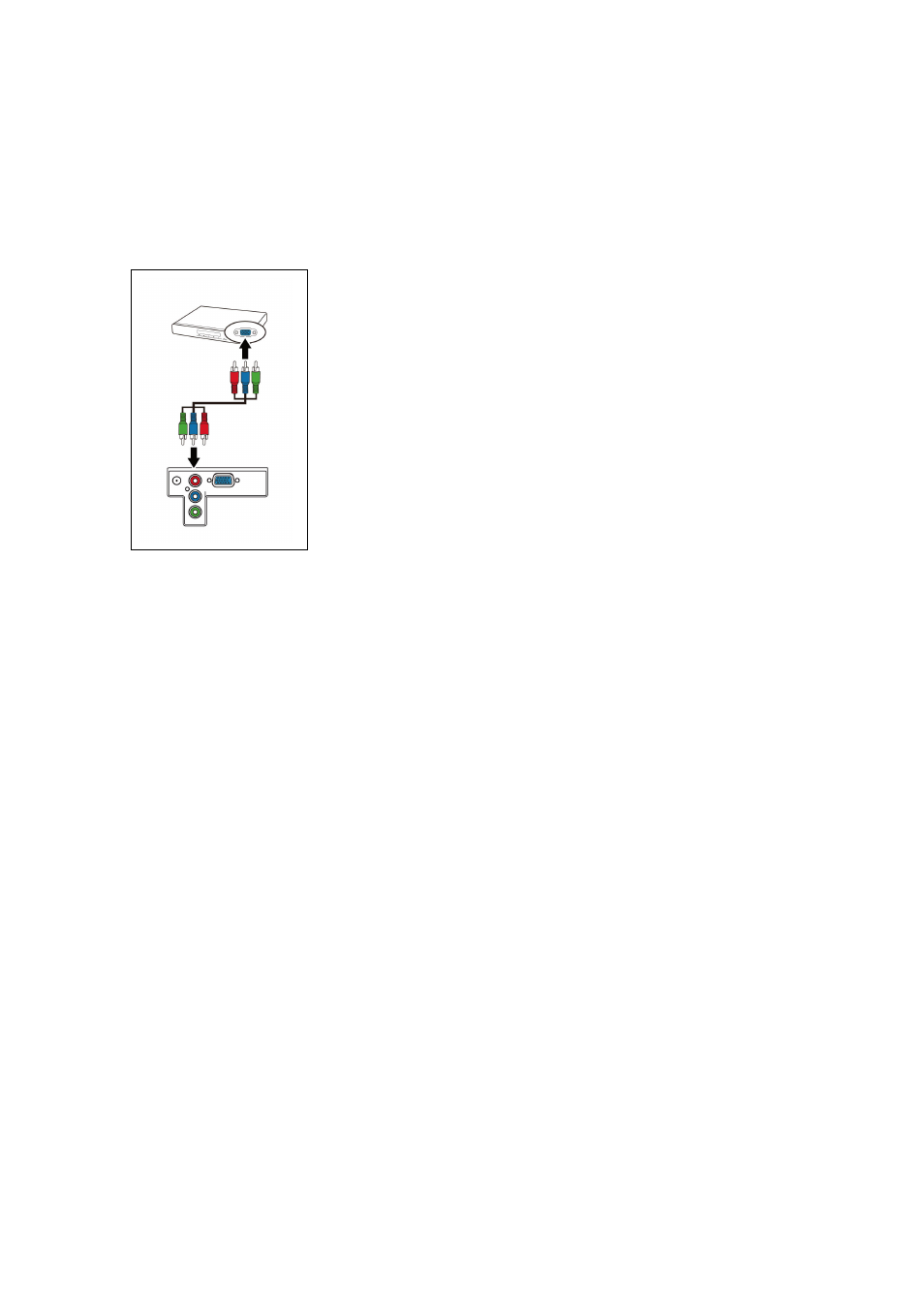

The final connection path should be like that shown in the following diagram:
PJD2121
ViewSonic
