7
Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location
and distance between the projector and the rest of your equipment.
Your projector is designed to be installed in the following installation locations:
1. Front Table
Select this location with the projector placed near the
floor in front of the screen. This is the most common way
to position the projector for quick setup and portability.

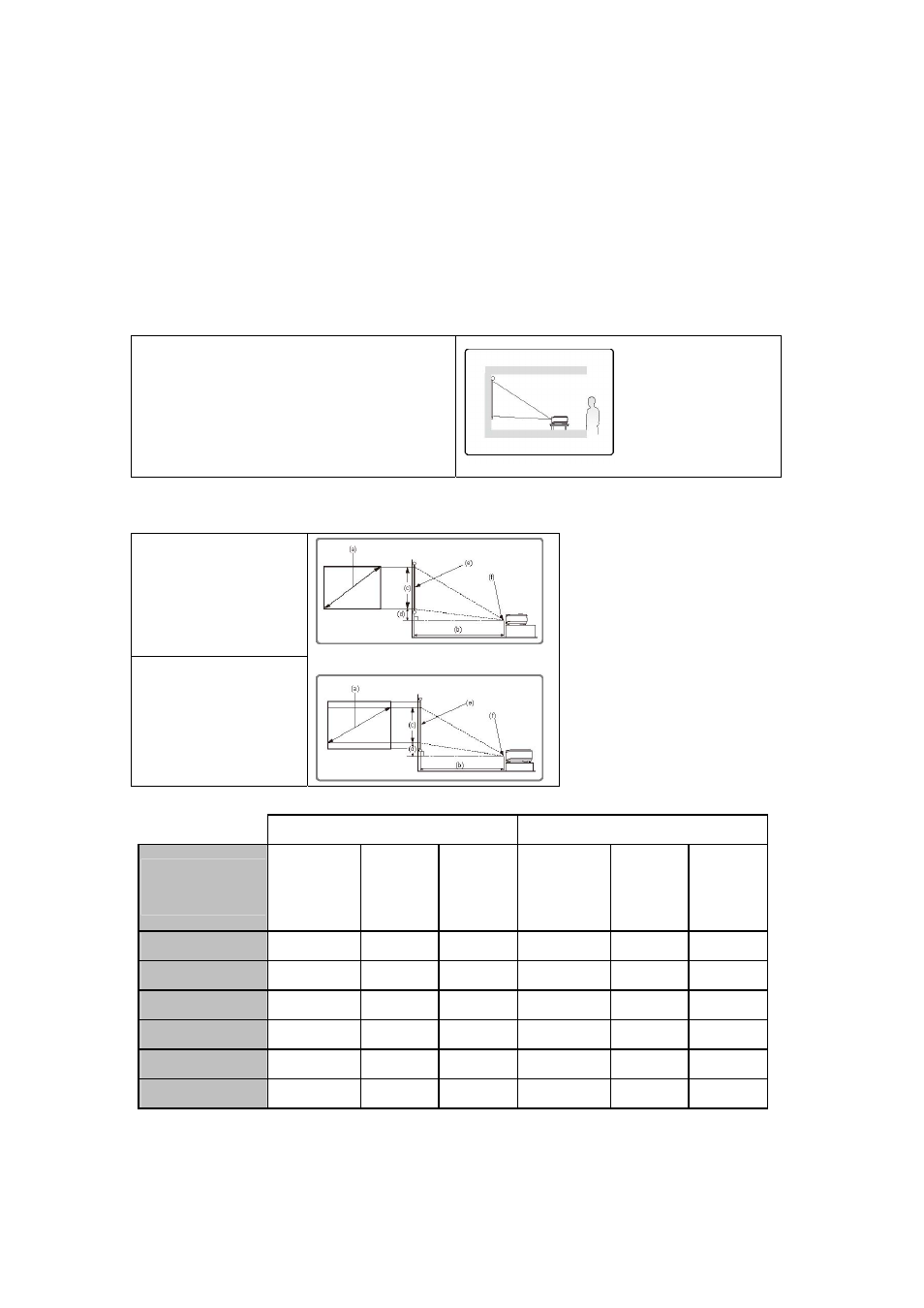

Projection dimensions
4:3 image on a 4:3 screen
16:9 image on a 4:3 screen
(e): Screen (f): Center of lens
4:3 Screen 16:9 Screen
(b)Projection (c)image (d)Vertical (b)Projection (c)image (d)Vertical
(a)Image Diagonal
[inch(m)]
Distance
[m(inch)]]
height
[cm(inch)]
offset
[cm(inch)]
Distance
[m(inch)]]
height
[cm(inch)]
offset
[cm(inch)]
40 (1.0) 0.8 (32) 61 (24) 5 (2) 0.88(34.6) 48(18.9) 9.5(3.7)
60 (1.3) 1.2 (48) 91 (36) 7 (3) 1.34(52.8) 74(29) 13(5)
80 (1.5) 1.6 (64) 122 (48) 9 (4) 1.8(70.9) 98(38.6) 17(6.7)
100 (1.8) 2.0(79 ) 152(60) 11(4.3) 2.26(89) 121(47.6) 21.5(8.5)
120 (2.0) 2.4 (94) 183(72) 14(5.5) 2.72(107) 142(55.9) 25.5(10)
150 (2.0) 3.0(118) 229(90) 17(6.7) 3.4(134.3) 160(63) 32.3(12.7)
There is +/- 2% tolerance among these numbers due to optical component variations.
This will help you determine the exact mounting position so that it best suits your installation location.
