64 © 2009 VBrick Systems, Inc.

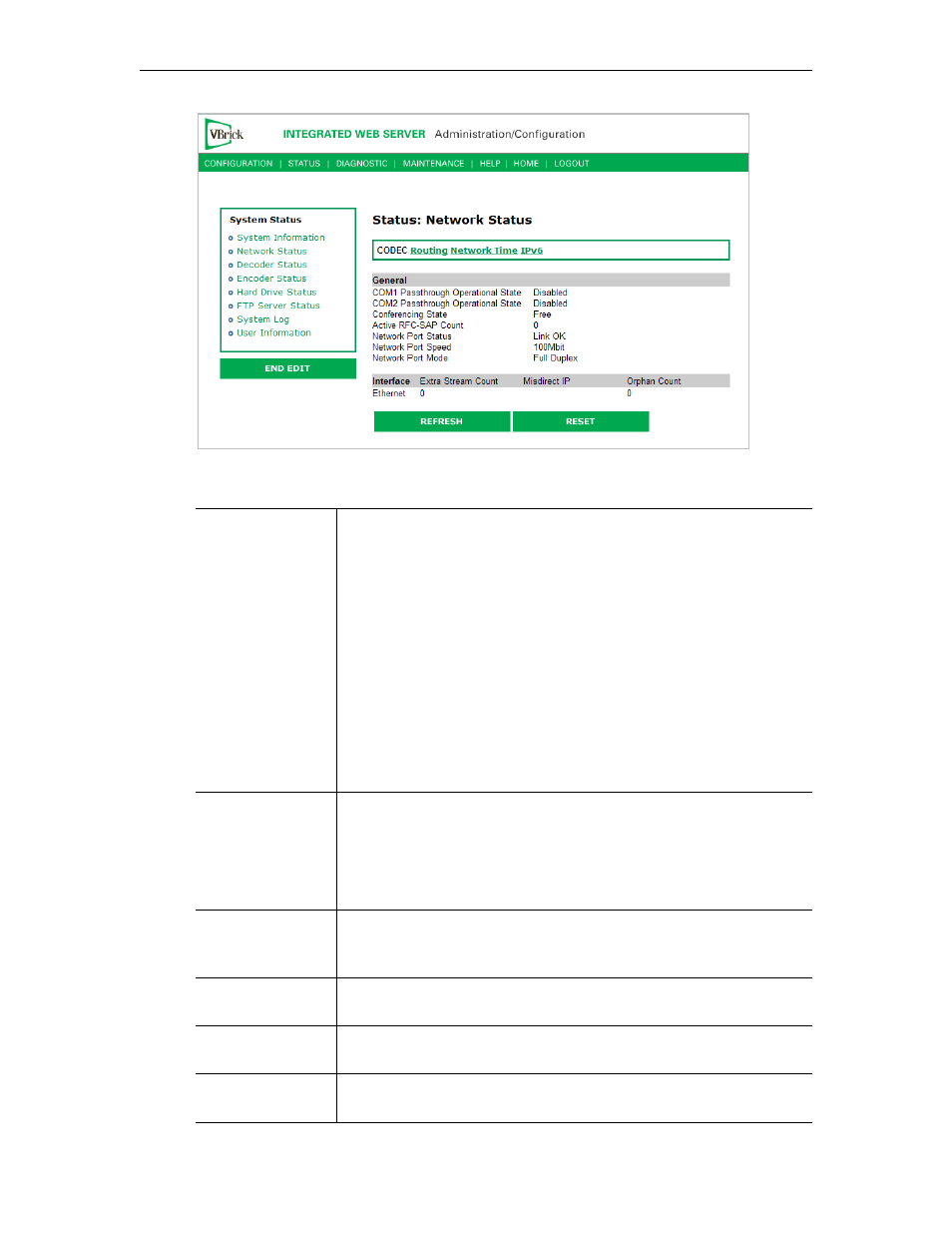

General
COM1/COM2
Passthrough
Operational State The current operational state of COM1/COM2 serial Passthrough
port. There will be a conflict if the slot selected through the
Passthrough Destination parameter has neither an encoder nor a
decoder present; or has an encoder with a multicast destination; or has
an encoder with no configured destination. The possible values are:
• Disabled
• Enabled Active
• Enabled Conflict No Enc Or Dest
• Enabled Conflict Enc Multi Dest
• Enabled Conflict Enc No Dest
• Enabled Internal Error
• Enabled Rejected
• No Dedicated IP Addr
Conferencing State This setting indicates the unicast call state of the encoder.
• Free – Available for a conference.
• Busy – The VBrick is currently engaged in a conference.
• Disabled – The conference feature has been disabled.
• Unknown – The VBrick is in a transition state.
Active RFC-SAP
Count This is the number of SAP sessions the appliance is currently listening
to for the purpose of RFC 2974-compliant SAP timing. This field
displays values when SAP timing is configured for RFC 2974 mode.
Network Port
Status The status of the Ethernet network interface:
Link OK
or
No Link
.
Network Port
Speed The speed of transmission for the Ethernet network interface:
10Mbit
or
100Mbit
.
Network Speed
Mode The mode of transmission for the Ethernet network interface:
Full
Duplex
or
Half Duplex
.
