RT-PRC005-EN

(6-10 Tons)

Dimensional
Data

All dimensions are in inches.

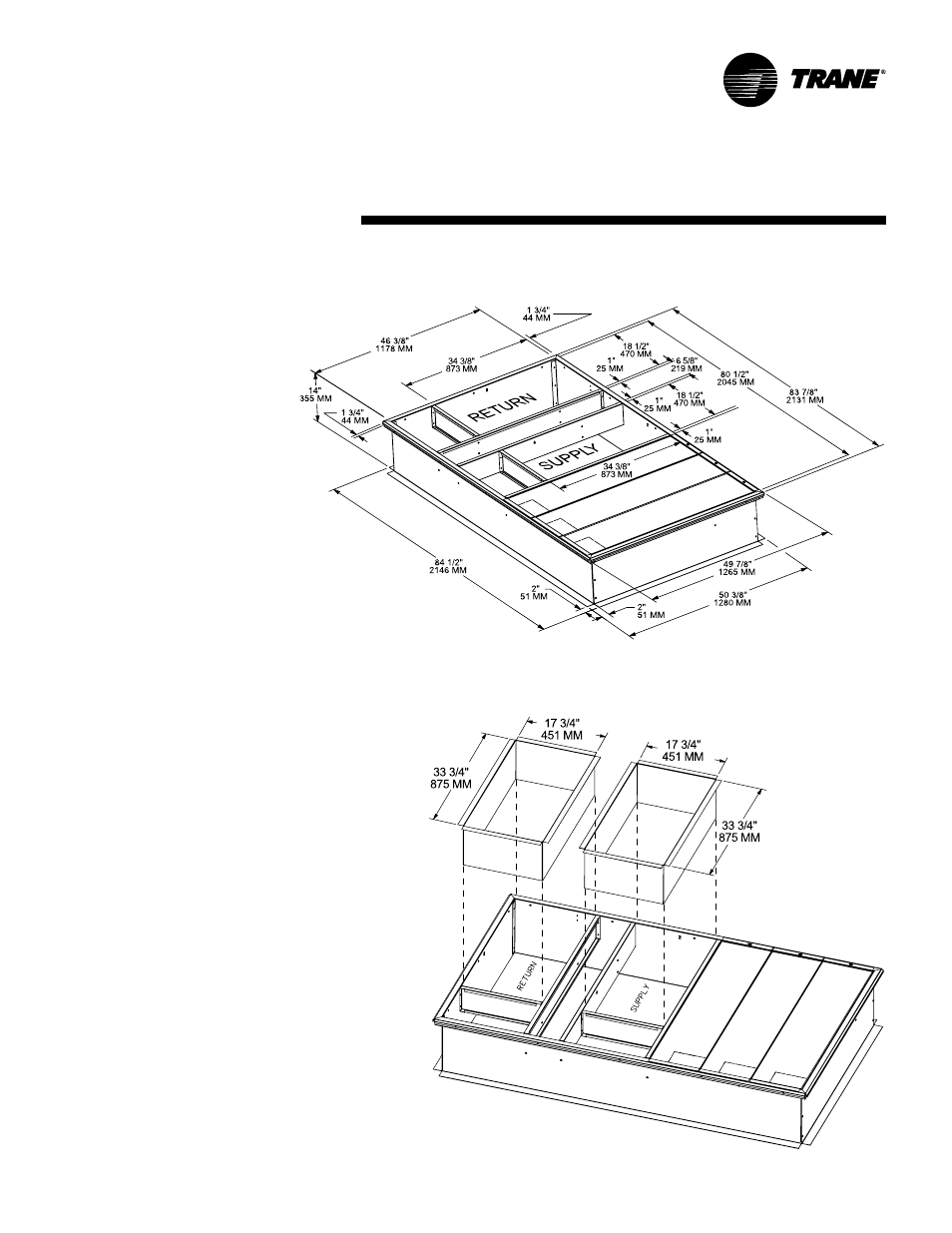

6-10 Tons — Roof Curb

ALL FLANGES 1 1/4” (31 MM)

6-10 Tons — Downflow Duct Connections —

Field Fabricated
