TP-Link TL-R4299G - Manual (Page 62)

TL-R4299G Dual-WAN SMB Broadband Router User Guide
56

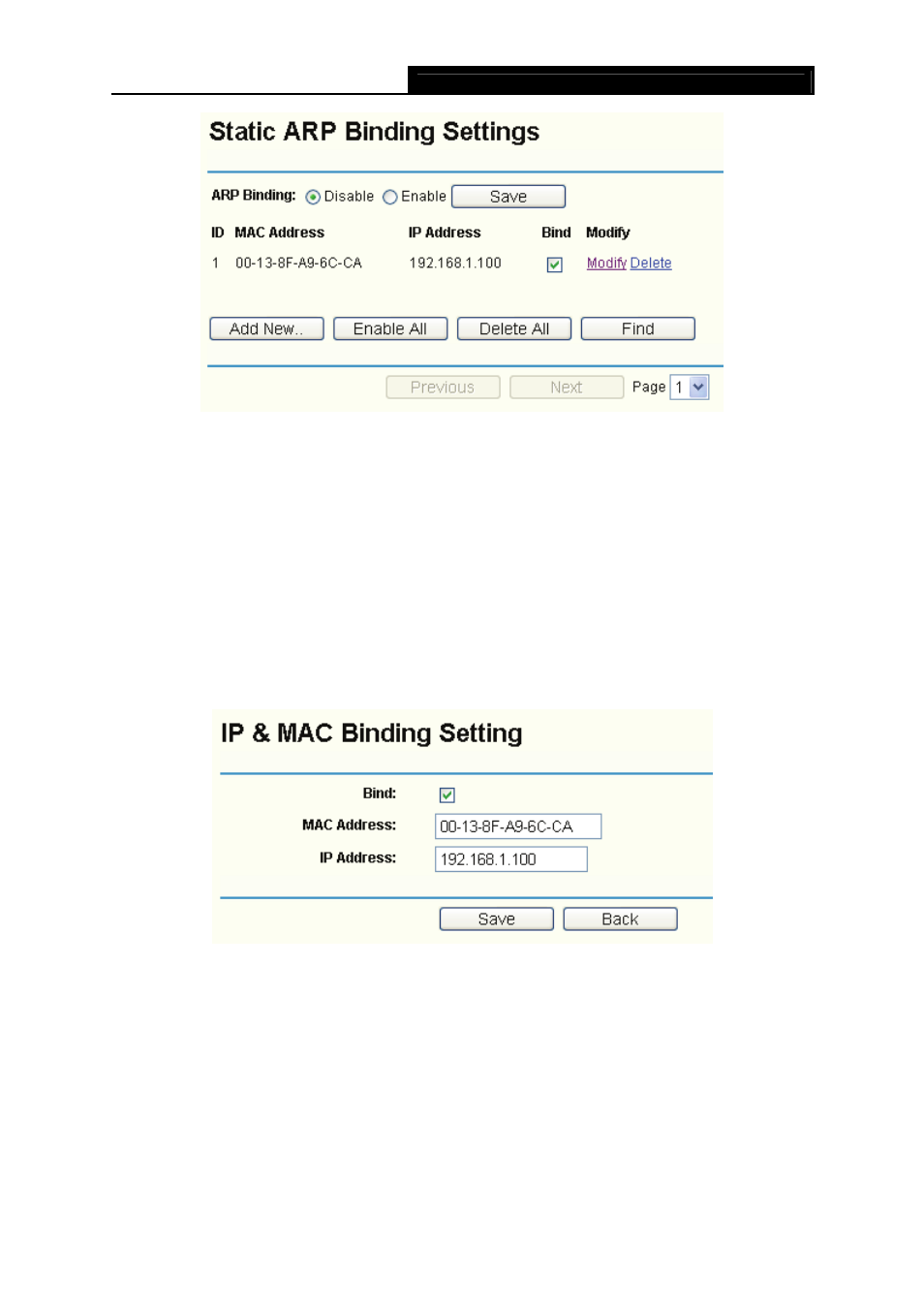

Figure 4-52
¾ MAC Address - This field displays the MAC address of the controlled computer in the LAN.
¾ IP Address - This field displays the assigned IP address of the controlled computer in the
LAN.
¾ Bind - Select Whether enable the arp binding or not. Only bind the MAC address and IP
address can the function take effect.
To add/modify an IP & MAC binding entry:
Step 1: Click Add New…/Modify shown in Figure 4-52, you will see a new screen shown in
Figure 4-53.
Step 2: Enter the MAC Address and IP Address in the corresponding field.
Figure 4-53
Step 3: Select Bind the MAC and IP address, then click Save button to save the configuration.
To find a specific IP & MAC binding entry:
Step 1: Click Find shown in Figure 4-52, you will see a new screen shown in Figure 4-54.
Step 2: Enter the specific MAC Address or IP Address in the corresponding field.
