TL-R4299G
Dual-WAN SMB Broadband Router User Guide
41

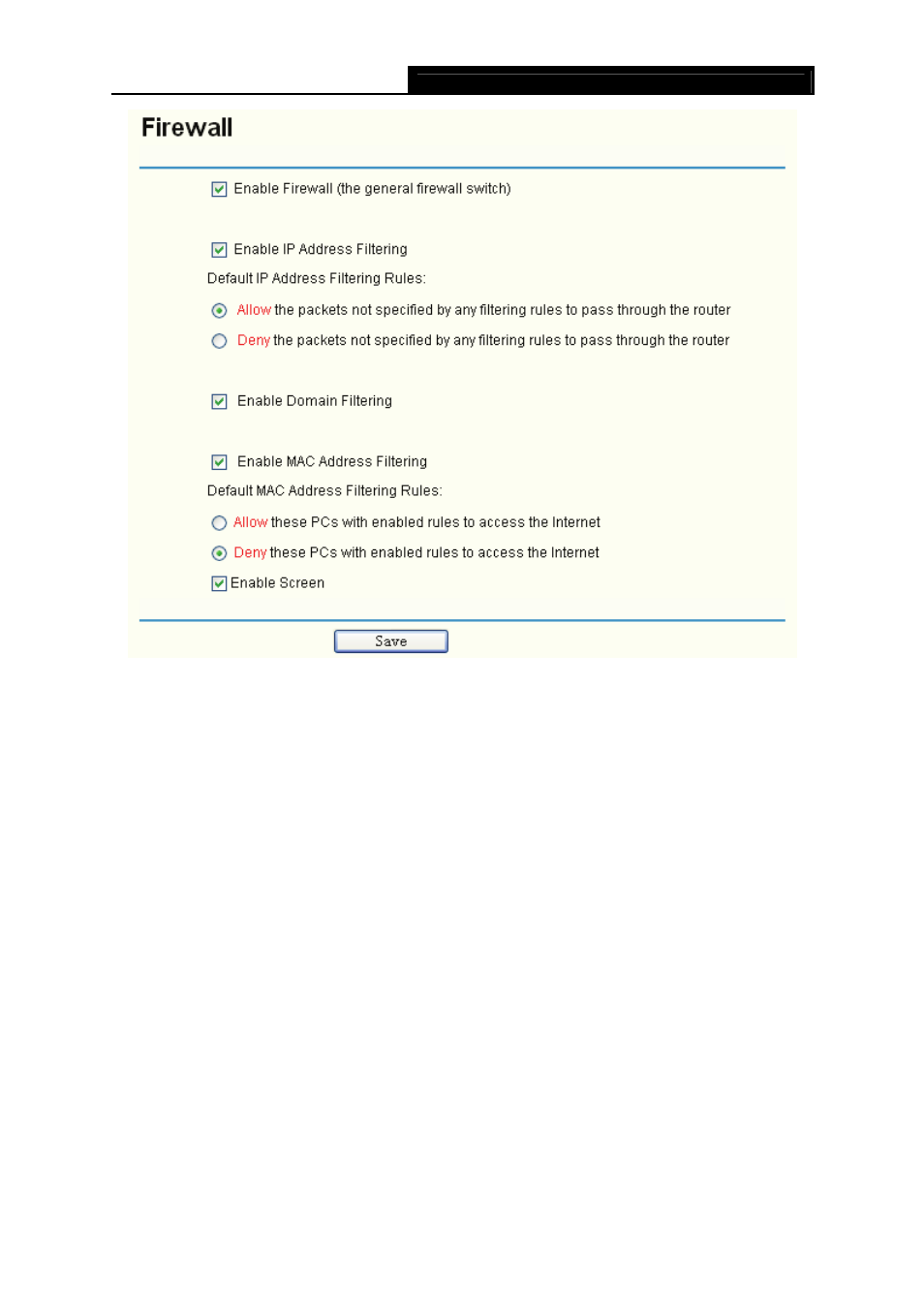

Figure 4-30
¾
Enable Firewall - Enable the general firewall switch or not.
¾
Enable IP Address Filtering - Enable the IP Address Filtering or not. There are two default
filtering rules, please select the rule for your need.
¾
Enable Domain Filtering - Enable the Domain Filtering or not.
¾
Enable MAC Address Filtering - Enable MAC Address Filtering or not. There are two
default filtering rules, please select the rule for your need.
¾
Enable Screen - Enable the screen function or not.
4.6.2 IP Filtering
Choose menu “Security→IP Address Filtering”, you can configure the IP Address filtering rule
in the next screen (shown in Figure 4-31). The IP Address Filtering feature allows you to control
Internet Access by specific users on your LAN based on their IP addresses.
