TL-R4299G Dual-WAN SMB Broadband Router User Guide
7

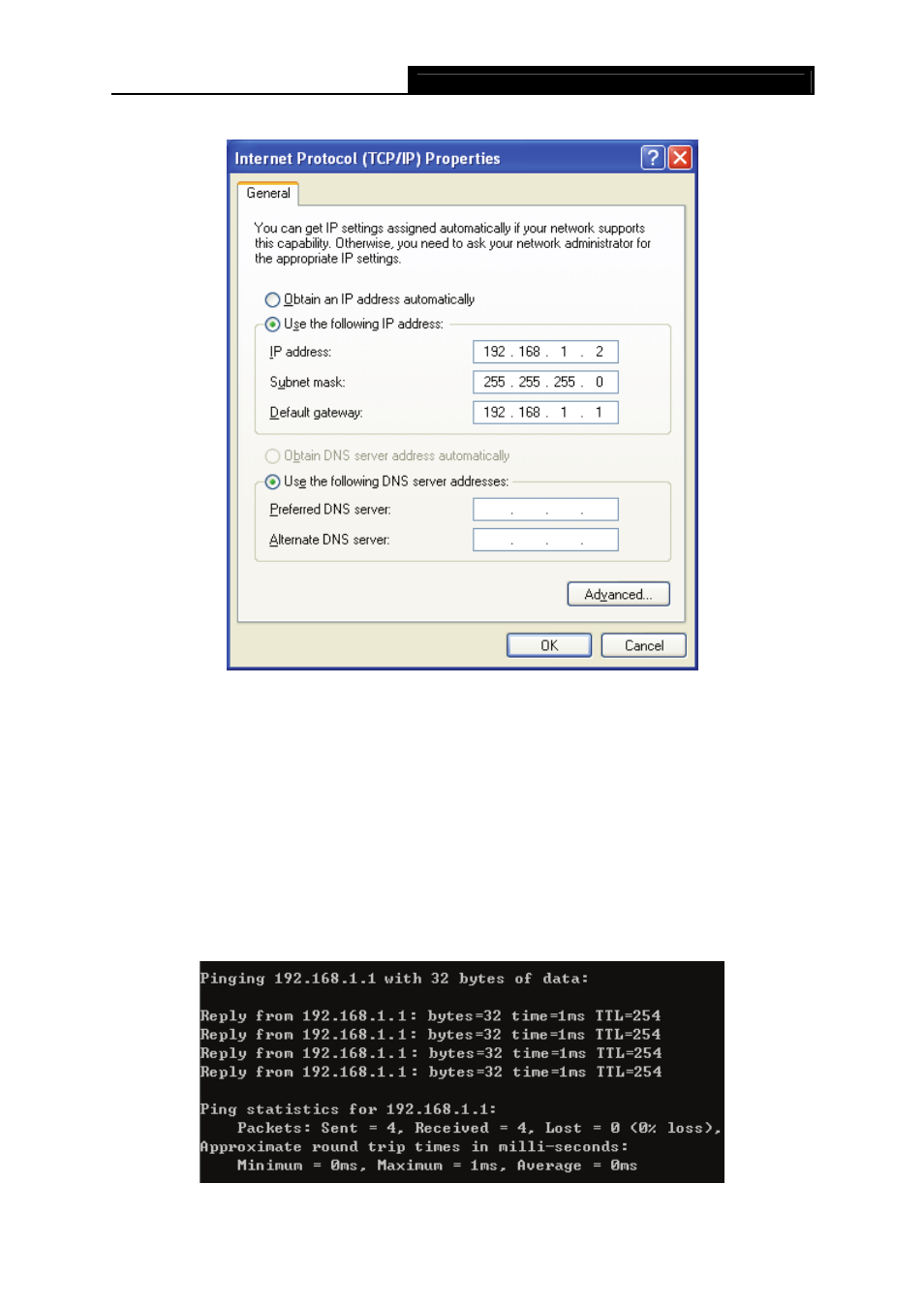

Step 4: Configure the IP address as shown in Figure 3-4. After that, click OK.
Figure 3-4
)
Note:
You can c onfigure the PC to get an IP address manually, select “Obtain an IP address
automatically” and “Obtain DNS server address automatically” in the screen above.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd in the field, and then type
ping 192.168.1.1 on the next screen, and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the
Router has been established.
Figure 3-5
