TP-Link TL-R4299G - Manual (Page 59)

TL-R4299G Dual-WAN SMB Broadband Router User Guide
53

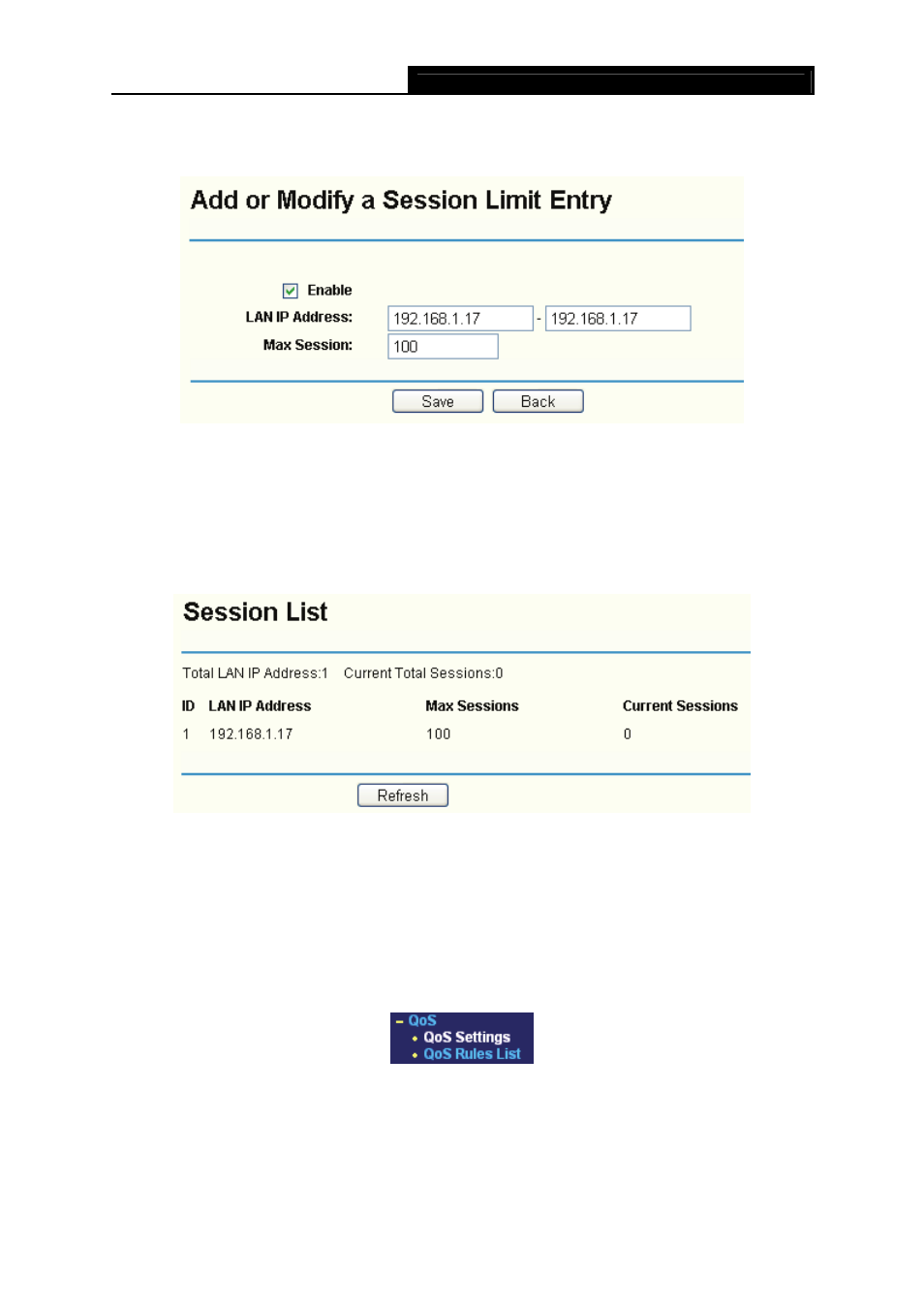

Figure 4-45.
Step 2: Enter the appropriate LAN IP Address, Max Session and then select the status.
Figure 4-45
Step 3: Click the Save button.
4.8.2 Session List
Choose menu “Session Limit→Session List”, you can view the the information about the
number of connection.
Figure 4-46
)
Note:
You can click the Refresh to update the information.
4.9 QoS
Choose menu “QoS”, you can see the submenus under the main menu:
Figure 4-47
Click any of them, and you will be able to configure the corresponding function. The detailed
explanations for each submenu are provided below.
