TL-R4299G
Dual-WAN SMB Broadband Router User Guide
20
4. BigPondCable
If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond
Cable option.

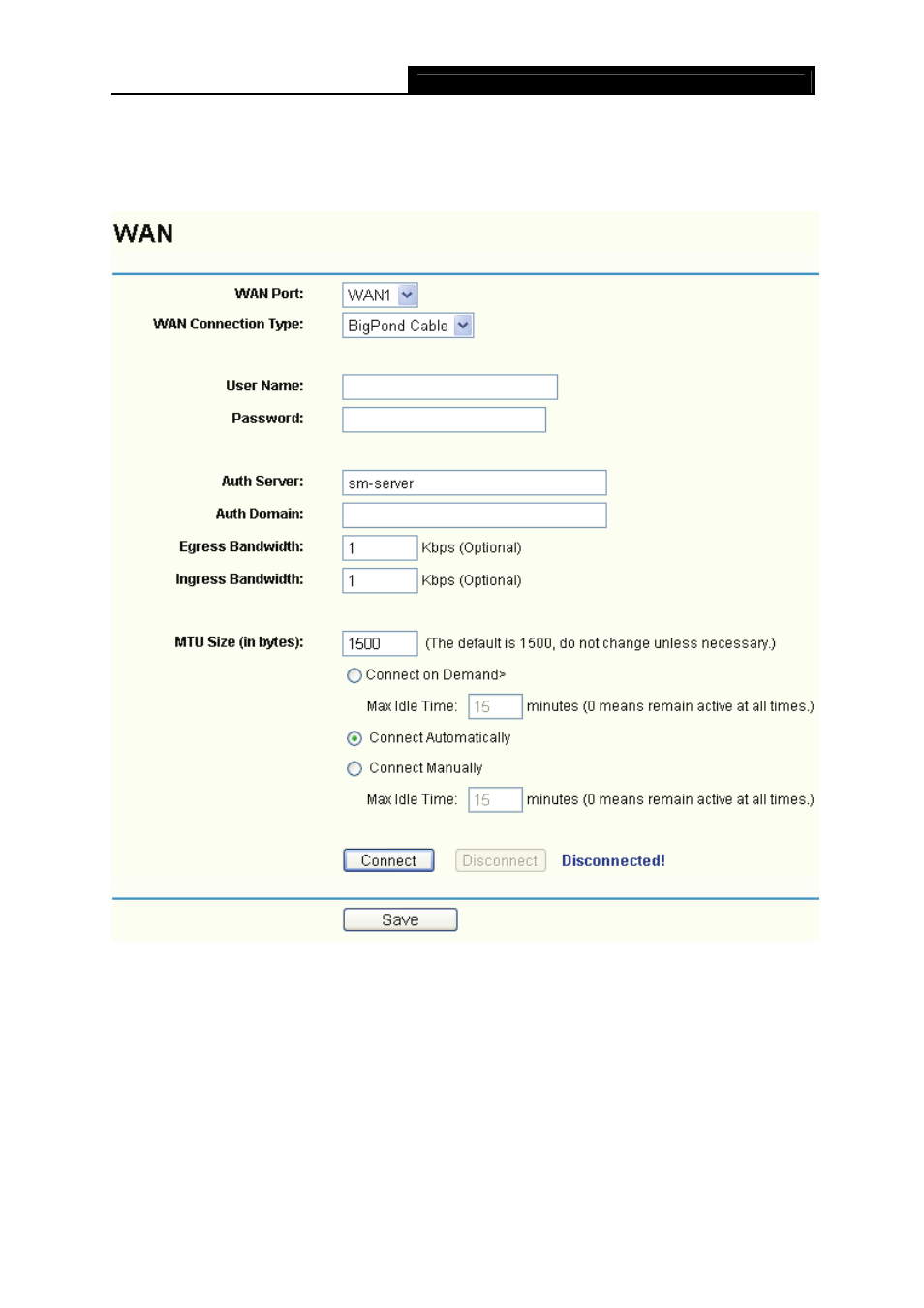

Figure 4-8
¾
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
¾
Auth Server - Enter the authenticating server IP address or host name.
¾
Auth Domain - Type in the domain suffix server name based on your location.
¾
MTU Size - The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is
1500 bytes. For some ISPs, you may need to modify the MTU. But this is rarely required, and
should not be done unless you are sure it is necessary for your ISP connection.
¾
Connect on Demand - You can configure the router to disconnect your Internet connection
