Multiple Camera support:

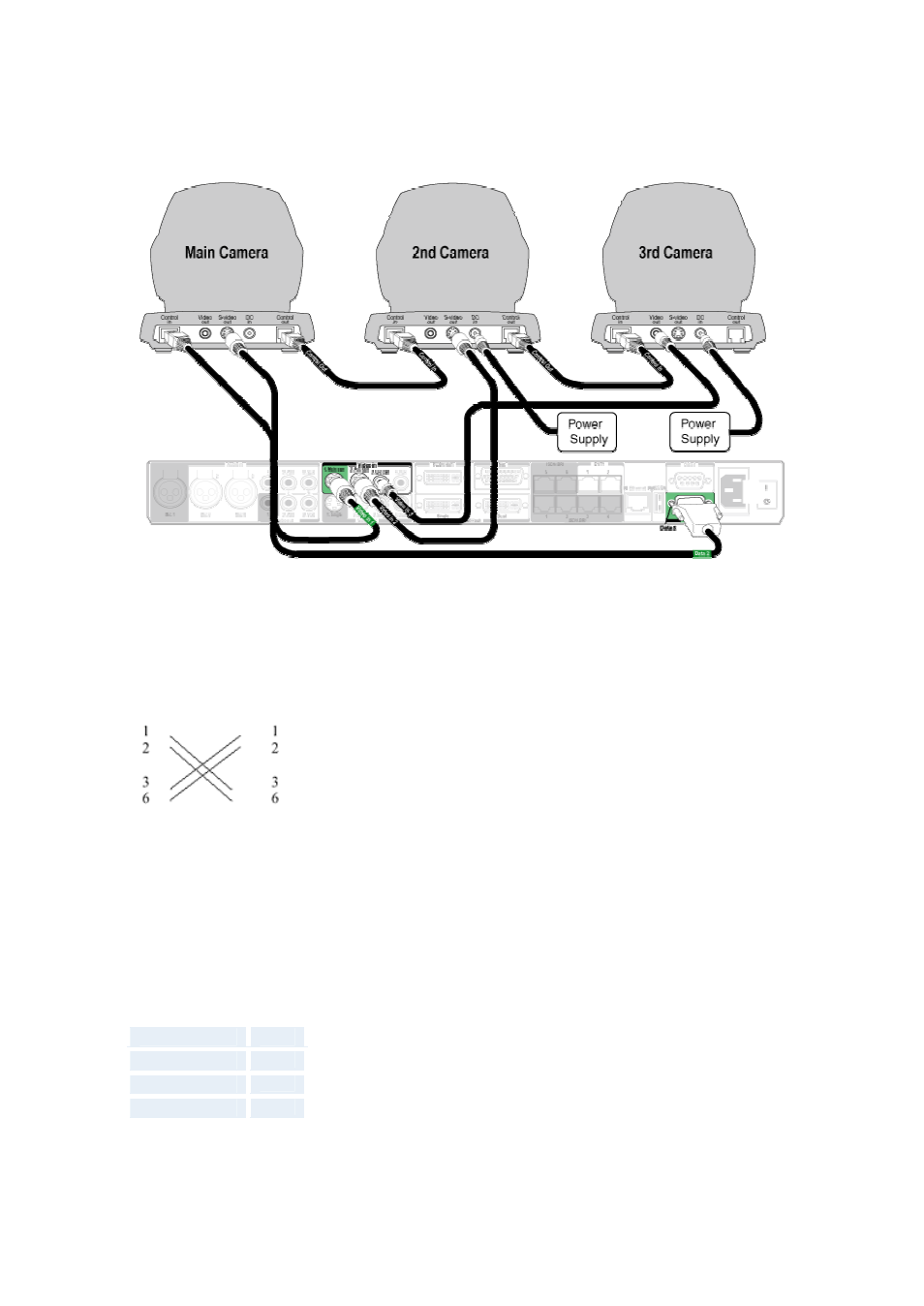

The figure below is an example of how multiple cameras should be connected:
Ethernet:
To connect the system to a LAN, use the Ethernet cable provided by TANDBERG (or a
standard Ethernet cable). If no LAN is available and the codec is connected directly to a
computer, use a crossover cable.
The crossover cable specification is:
If such a connection is needed, the system and the PC must use
‘
static
’
TCP/IP settings
because no DHCP server is controlling the small
“
LAN
”
, which has been created between the
computer and the system. When configuring a back-to-back connection between the PC and
the system, make sure both static IP addresses exist on the same subnet.
BRI ISDN Interface:
To connect the system to BRI, use the ISDN cable provided by TANDBERG (or a standard
BRI cable).
The pinout of the S/T interface is:
Pin-3 TX+
Pin-4 RX+
Pin-5 RX-
Pin-6 TX-
PRI ISDN Interface:
