7. LOADING THE LABEL

ENGLISH VERSION EO1-33014

Load the liner backed label roll as Fig.7-3 shows.

Slide the paper guide (R) to accommodate the label roll width, and then push the release lever
downward to fix the paper guide (R).

NOTE:

Before fixing the paper guide (R), make sure that the label roll rotates smoothly without
moving from side to side.

7.1 How to Load the Liner Backed Label Roll

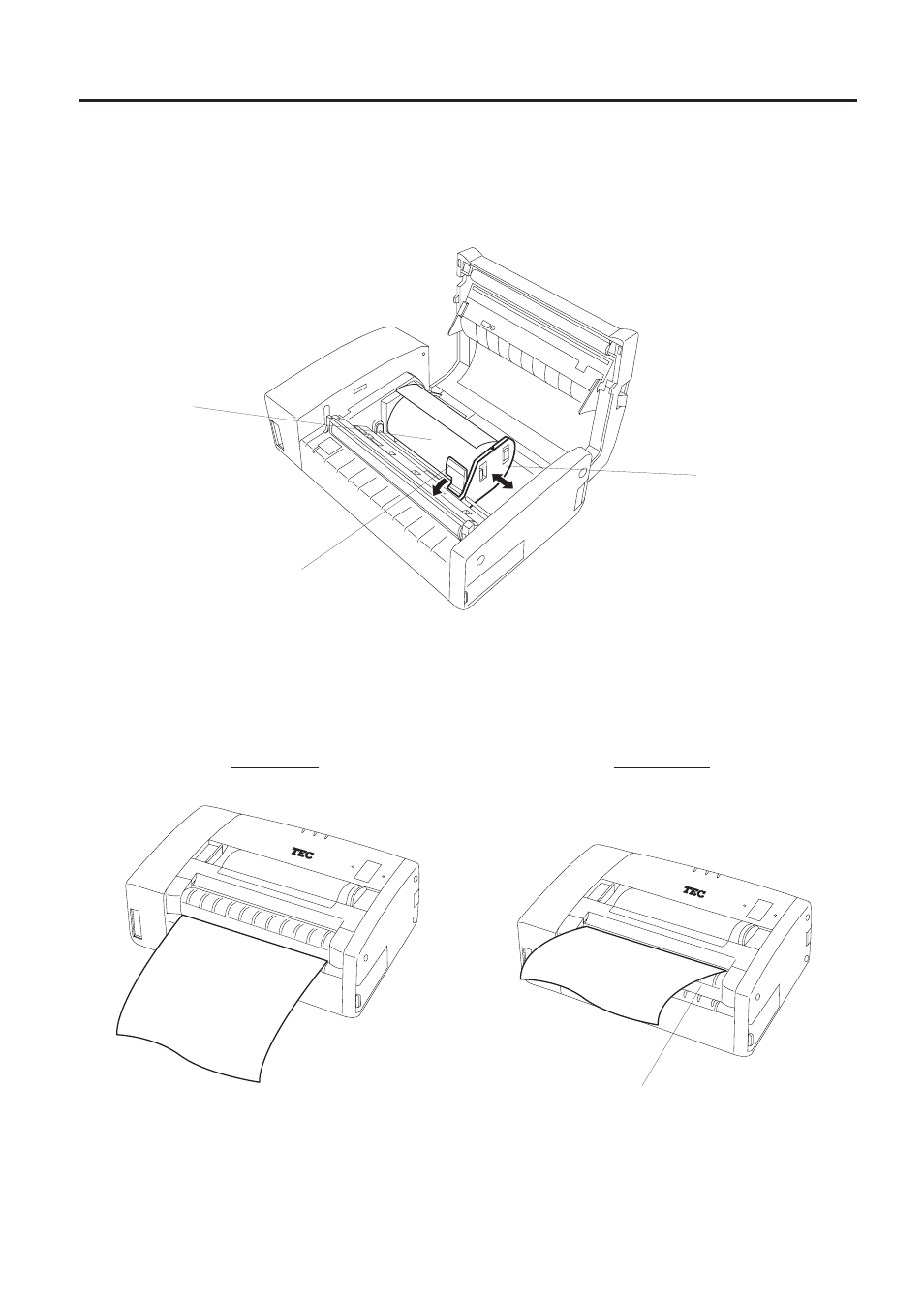

Fig. 7-3

When printing in strip issue mode, draw out the top of the label roll onto the platen. When printing
in continuous or batch issue mode, insert the top of the label roll into the outlet of the media cover.

NOTE: Batch issue can be performed without the strip module. For removing the strip module, refer

to section 7.2 How to load the linerless label roll.

Strip Issue

Batch Issue

Fig. 7-4

Fig. 7-5

Label Roll

Paper Guide (R)

Release Lever

Strip Module
