2 Getting Set Up
2-8 Phaser 240 Color Printer
Install the transfer roll
Note ColorCoat™ transfer rolls are used with common laser paper and
perforated premium laser paper; Black and 3-Color transfer rolls
are used with Tektronix transparencies and thermal-transfer
paper.

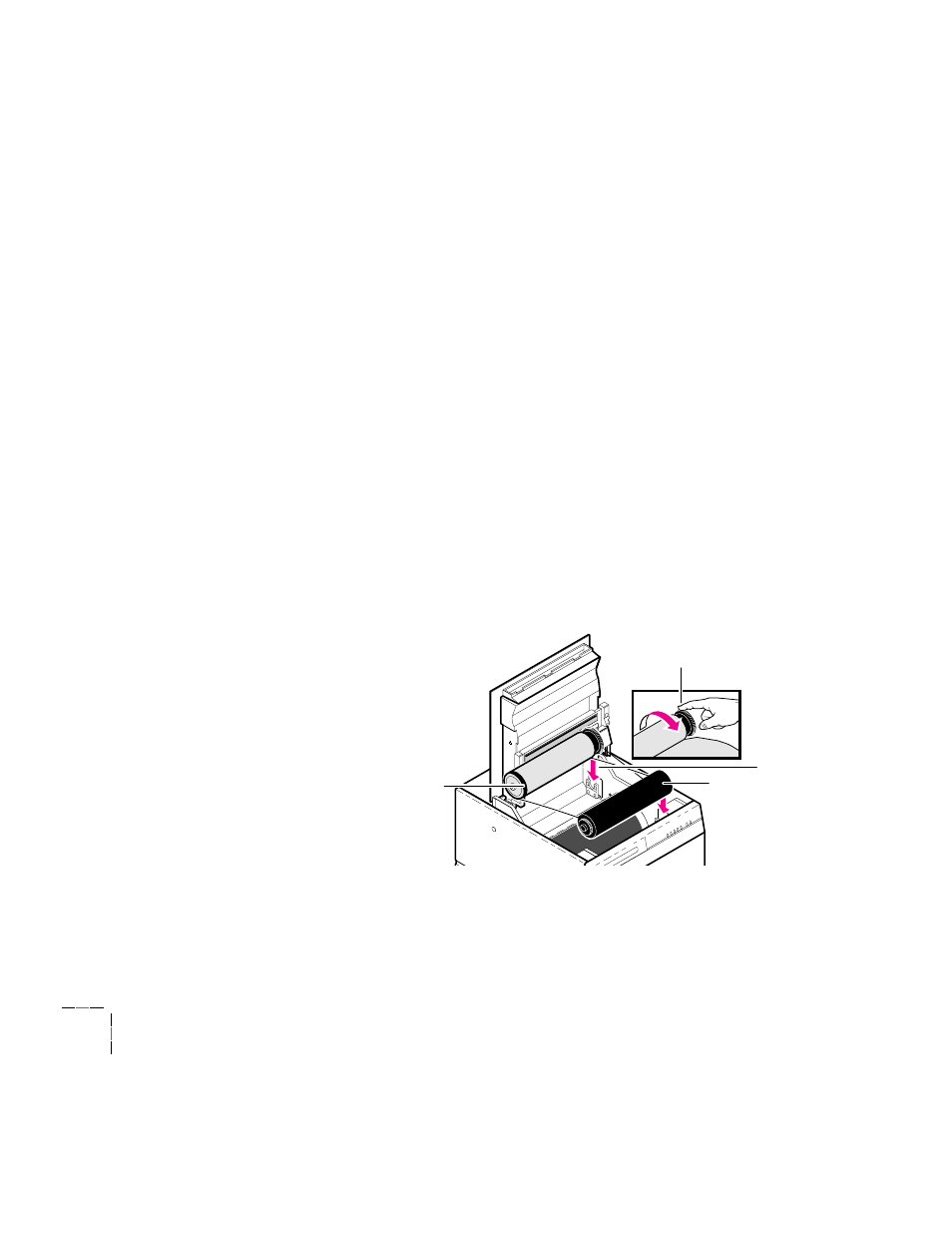

With the top cover still open, install the transfer roll:
1. Remove the transfer roll from the box. Remove the shipping foam
from the transfer roll. Remove the foam clip from the full end of
the roll.
2. Hold the transfer roll so that the black band on the roll is on
your left.
3. With the black band on the roll to your left, place the empty end of
the roll in the slots at the front of the printer.
4. Place the full end of the roll in the slots at the back of the printer.
5. Turn the full end of the roll to remove slack.
6. Close the cover.
9238-05
3 2
4
5
