35

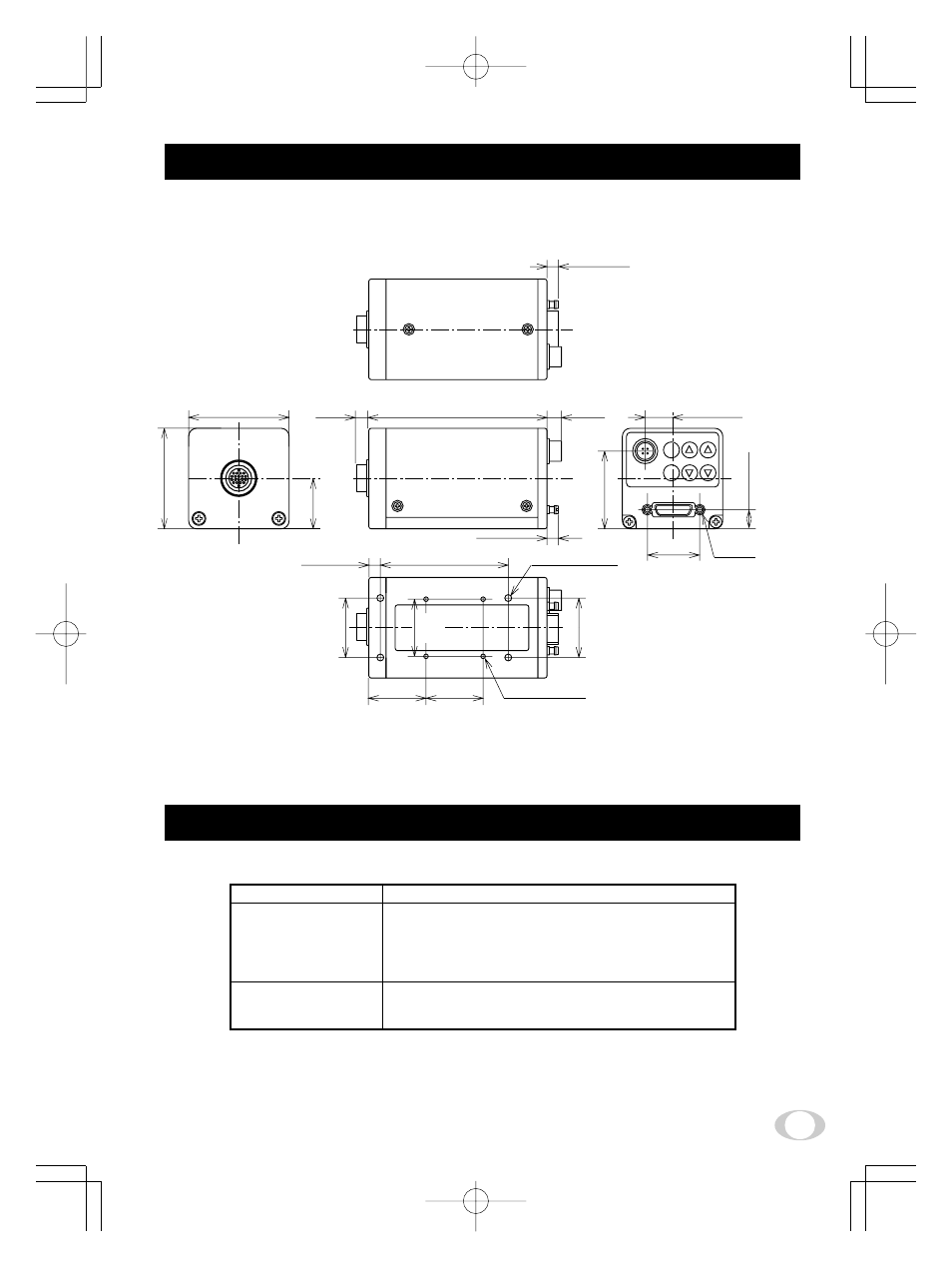

11. EXTERNAL APPEARANCE DIAGRAM
Unit : mm [inch]
* inch = mm/25.4
44 [1.73]
44 [1.73]
22 [0.87]
6.3
[0.25]
5.3
[0.21] 78 [3.07]
4.8 [0.19]
4.8 [0.19]
56 [2.20] 4.5 [0.18]
26 [1.02] 26 [1.02]
24.5
[0.96]
25
[0.98]
19.2
[0.76]
25
[0.98]
12 [0.47]
34 [1.34]
2-M2
4-M2 Depth 3
4-M3 Depth 3
8.2 [0.32]
12. BEFORE MAKING A SERVICE CALL
Symptom
No image
Poor color
Items to be checked
• Is the power supplied correctly?
• Is the lens iris adjusted correctly?
• Are the cables connected correctly?
• Is the shutter mode set correctly?
• Is the image process equipment set correctly?
• Is the monitor adjusted correctly?
• Is the white balance of the camera adjusted correctly?
• Is the illumination dark?
