Toshiba IK-TF5U User Manual

Page 19

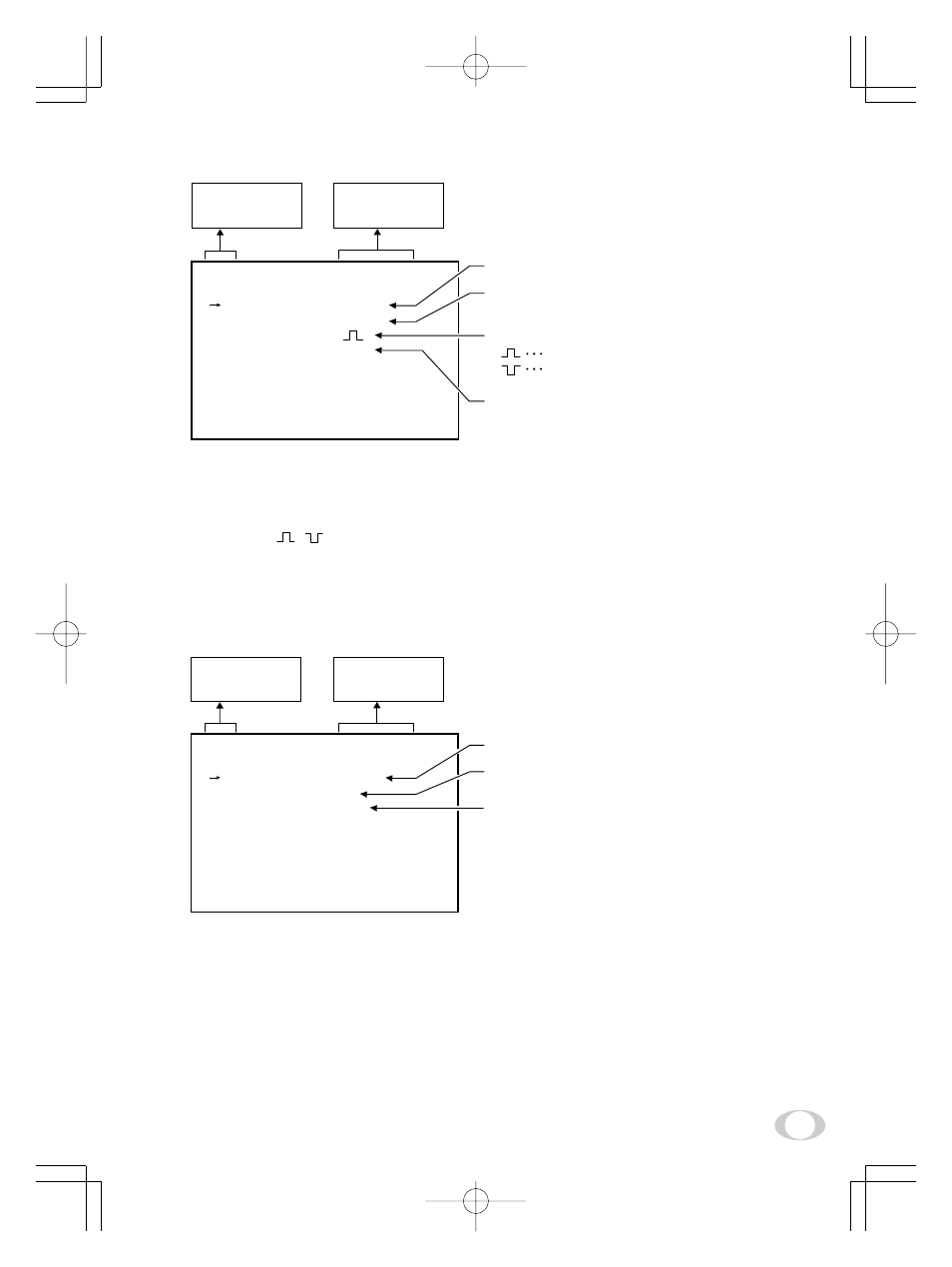

-- SHUTTER --

MODE

E.TRG

PW SR

TRG.P
PART

OFF

• Partial scanning switch
OFF/90fps/115fps/120fps/160fps/180fps/240fps/
E90fps/E115fps/E120fps/E160fps/E180fps/E240fps

Input trigger pulse : positive polarity
Input trigger pulse : negative polarity

1P SNR, 1P SR, PW SNR, PW SR, RR

• Input trigger pulse setting at PW SNR and PW SR

• Sutter mode MANU, SS, E.TRG

• E.TRG mode

Move up down
by pushing
MENU UP, DOWN

Select the desired
value by pushing
DATA UP, DOWN

(a) Changing the polarity of inputting trigger pulse setting

Move the "

→

" to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.

Select either

by pushing [DATA UP], [DATA DOWN] buttons.

Note:

The longer the storage time with extended exposures, the more visible certain characteristics of CCD
cameras become: fixed pattern noise, white pixels, etc.

(1. 3. 4)

Changing the setting in PW SR mode

(1. 3. 5)

Changing the setting in RR mode

(a) Changing the partial scanning setting
