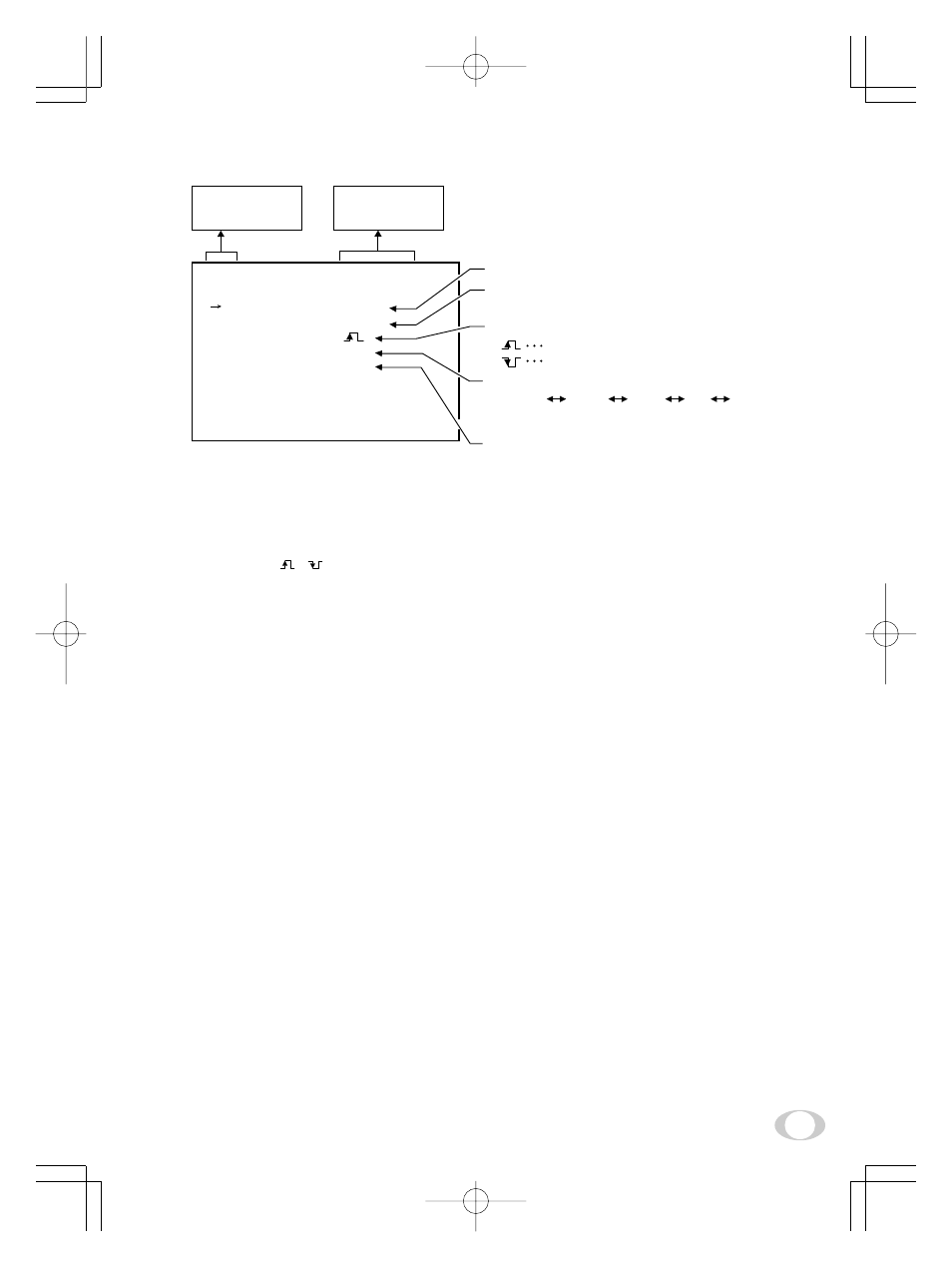

-- SHUTTER --
MODE E.TRG
E.TRG 1P SR
TRG.P
EXP.
16ms
PART OFF
0.01 ms 0.02 ms 0.4 ms 1 ms 16 ms
• E.TRG mode
• Partial scanning switch
OFF/90fps/115fps/120fps/160fps/180fps/240fps/
E90fps/E115fps/E120fps/E160fps/E180fps/E240fps
1P SNR, 1P SR, PW SNR, PW SR, RR
• Input trigger pulse setting at 1P SNR and 1P SR
• Exposure time setting at 1P SNR and 1P SR
• Sutter mode MANU, SS, E.TRG
Input trigger pulse : positive polarity
Input trigger pulse : negative polarity
Move up down
by pushing
MENU UP, DOWN Select the desired
value by pushing
DATA UP, DOWN
0.01 ms
step
0.02 ms
step
0.1 ms
step
1 ms
step
(1. 3. 2) Changing the setting in 1P SR mode
(a) Changing the polarity of inputting trigger pulse setting
1 Move the "
→
" to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.
2 Select either , by pushing [DATA UP], [DATA DOWN] buttons.
(b) Changing 1P SR exposure time setting
1 Move the " → " to EXP. by pushing [MENU UP], [MENU DOWN] buttons.
2 Select the exposure time by pushing [DATA UP], [DATA DOWN] buttons.
(c) Changing the partial scanning setting
1 Move the "
→
" to PART by pushing [MENU UP], [MENU DOWN] buttons.
2 Select the mode by pushing [DATA UP], [DATA DOWN] buttons.
