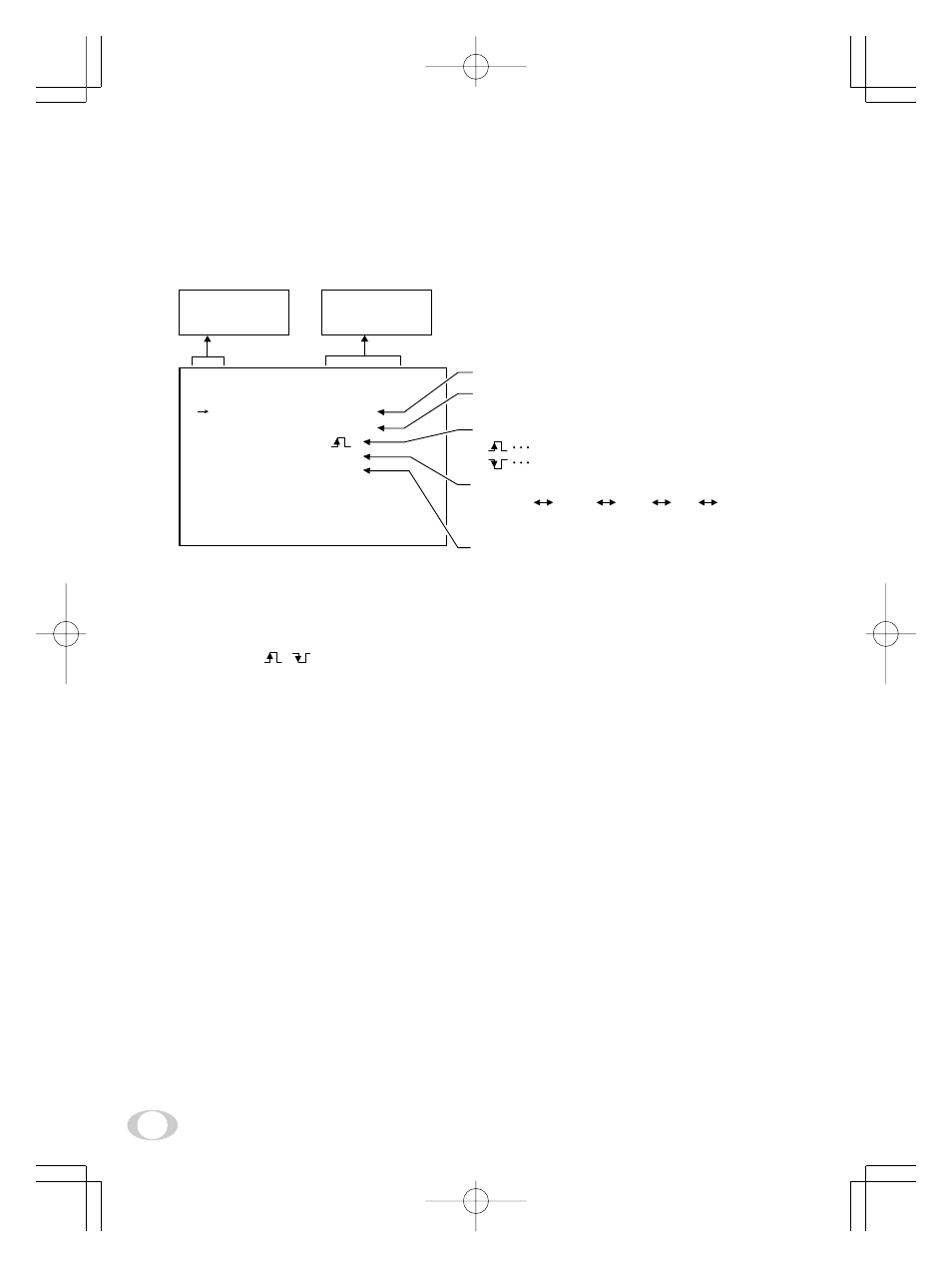

-- SHUTTER --
MODE E.TRG
E.TRG 1P SNR
TRG.P
EXP.
16ms
PART OFF
• E.TRG mode
• Partial scanning switch
OFF/90fps/115fps/120fps/160fps/180fps/240fps/
E90fps/E115fps/E120fps/E160fps/E180fps/E240fps
1P SNR, 1P SR, PW SNR, PW SR, RR
0.01 ms 0.02 ms 0.4 ms 1 ms 16 ms
0.01 ms
step
0.02 ms
step
0.1 ms
step
1 ms
step
• Input trigger pulse setting at 1P SNR and 1P SR
Input trigger pulse : positive polarity
• Exposure time setting at 1P SNR and 1P SR
• Sutter mode MANU, SS, E.TRG
Input trigger pulse : negative polarity
Move up down
by pushing
MENU UP, DOWN Select the desired
value by pushing
DATA UP, DOWN
(1. 3) Changing the setting in E.TRG mode
The E.TRG has five modes; 1P SNR, 1P SR, PW SNR, PW SR, RR.
First move the "
→
" to MODE and select E. TRG, then move the "
→
" to E.TRG and select the desired E.TRG
mode.
(1. 3. 1) Changing the setting in 1P SNR mode
(a) Changing the polarity of inputting trigger pulse setting
1 Move the "
→
" to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.
2 Select either , by pushing [DATA UP], [DATA DOWN] buttons.
(b) Changing 1P SNR exposure time setting
1 Move the "
→
" to EXP. by pushing [MENU UP], [MENU DOWN] buttons.
2 Select the exposure time by pushing [DATA UP], [DATA DOWN] buttons.
(c) Changing the partial scanning setting
1 Move the "
→
" to PART by pushing [MENU UP], [MENU DOWN] buttons.
2 Select the mode by pushing [DATA UP], [DATA DOWN] buttons.
