5. If the web browser reports that it cannot find the access point, then recheck the following:-

a) The correct IP address has been entered into the web browser.

b) Ensure that the IP address of the PC is in the same subnet.

c) Execute a PING test from the PC to the IP address of the access point. If the test returns as

Request Timed Out, then there is no connection between the PC and the access point.

d) Check that a cross-over style Ethernet cable is used between the PC and the access point.

The cable shipped with the access point should be suitable.

e) The browser proxy settings are correct.

6. Enter the default user name of admin and the default password of iktpw into the log-in prompt.

The password is case-sensitive and is an abbreviation of the phrase “I know the password”.
Note that the password can be changed in the System > Administrator Settings screen. The
access point will need to be reset after changing the password. If the screen shows a message
“Login Error”, then use the Back button of the browser to return to the log-in screen.

7. The access point main/home screen should be displayed similar to the image below:-

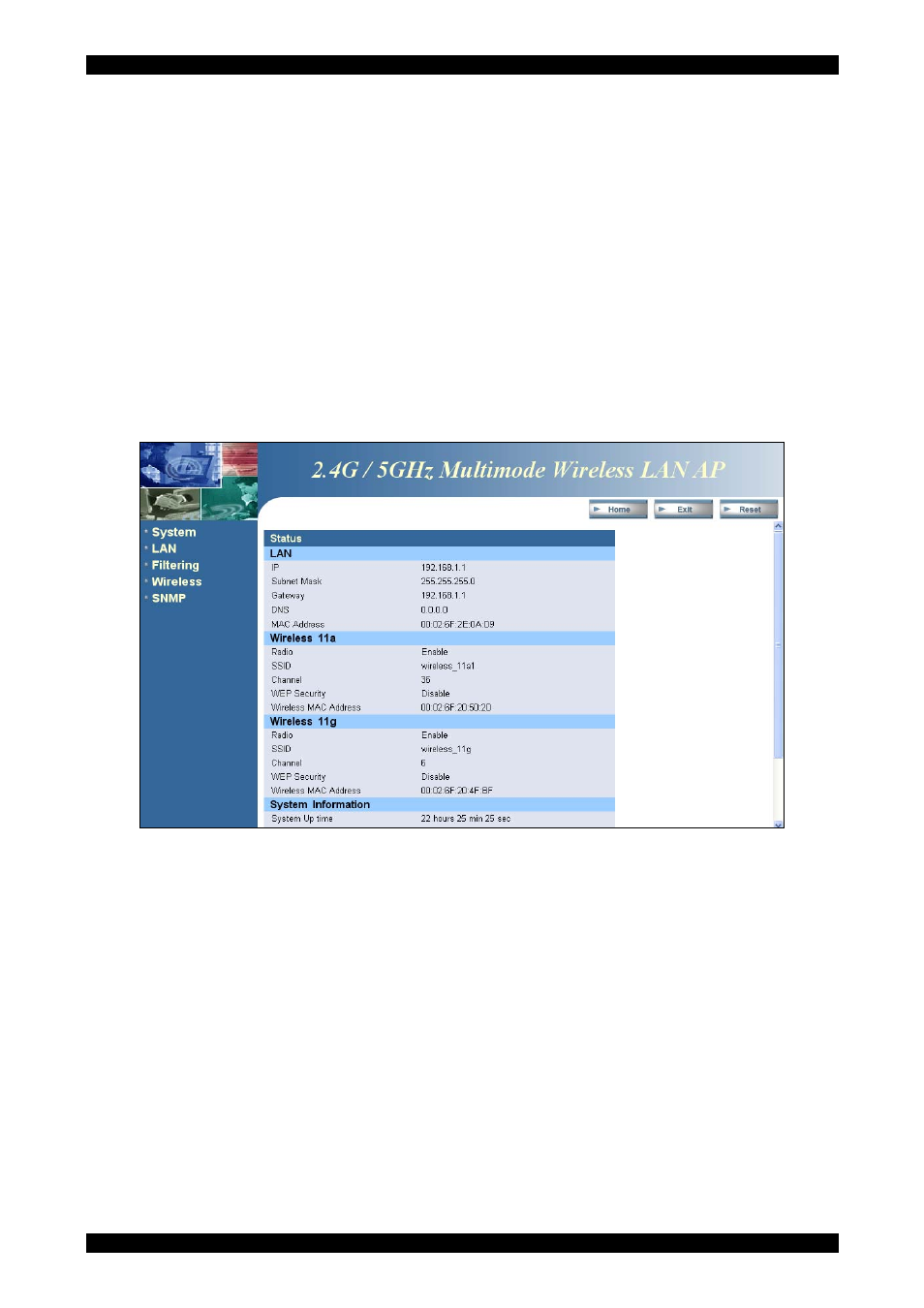

Figure 7 - Access Point Main Screen

8. This screen has a navigation bar on the left hand side and three action buttons in the top right

hand corner. The action buttons are:-

• Home – this always returns the web browser to the main screen
• Exit – this button forces a log-out from the session
• Reset – this button resets the access point and will slowly flash red to signal that the

access point needs to be reset to implement the requested changes. This reset can be
done after all required changes have been made.

9. Select

the

System > Status menu to view a summary of the access point.

10. The web browser session with the access point will timeout after about 10 minutes of no

activity to ensure that the configuration session cannot be accidentally left open creating a
security risk.
