Additional battery strings can be daisy-chained to the UPS internal battery system via a unique connector inside the UPS battery

compartment (Figure 3.10a).

A 15-ft. BP240EXTNDR15DL cable is required to connect the first battery cabinet to the UPS system (Figure 3.10b). Cabling for all

additional built-to-order cabinet installations is the sole responsibility of the electrician performing the installation.

To connect the cable to the UPS, remove the cover plate (Figure 3.10c) and insert the Delta connector into the slot until it is seated

firmly. After removing the cover plate, run the ring terminal ends through the opening and connect to the breaker (see section 6.2).

Make sure to use the correct electrician-provided strain relief at the cover plate.

Warning: When connecting to the breaker, make sure that you maintain proper polarity (positive to positive, etc.). Failure to do so

may result in damage to your UPS and will void your warranty claim.

3. Battery Cabinet Installation

(continued)

3.10 Daisy-Chaining Multiple Battery Cabinets

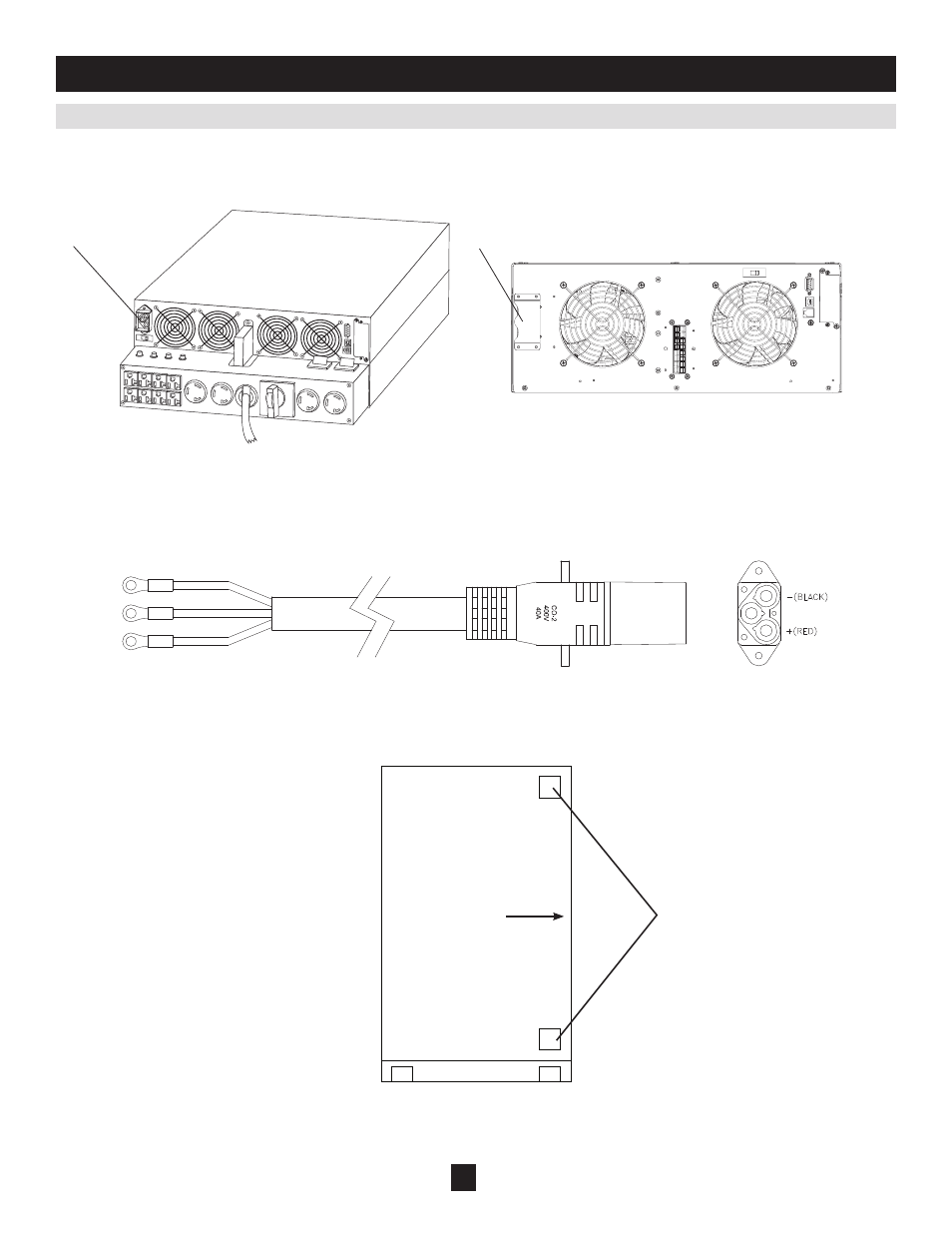

Figure 3.10a

Front of

Cabinet

Conduit

Knockouts

Battery

Connection

Battery

Connection

Figure 3.10b

Figure 3.10c
