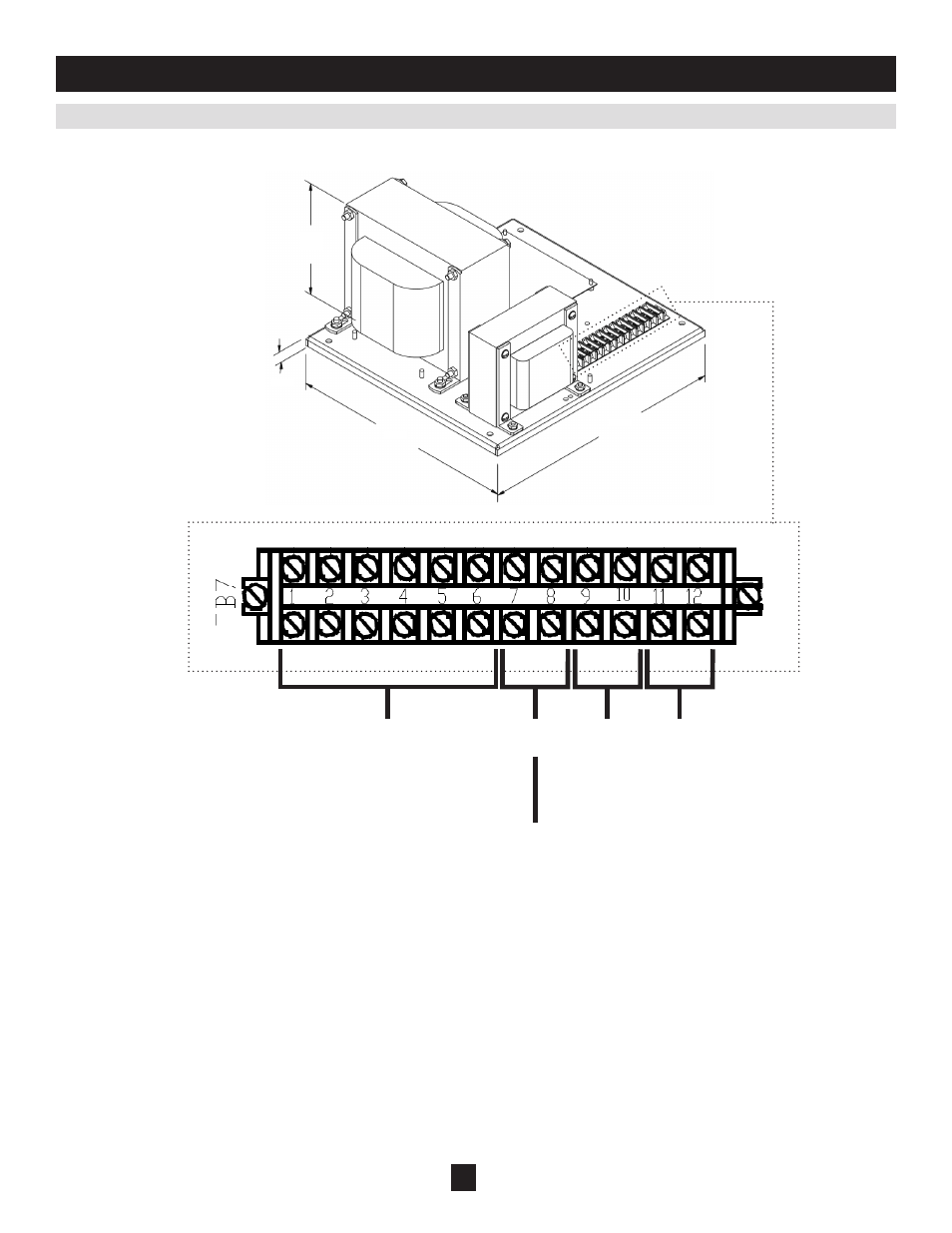

6.3 Integrated Battery Charger (Select Models)

6. Diagrams

(continued)

6.25

MAX

0.5

12.5

13.5

Notes:

• All dimensions are in inches.

• AC input is preset with fuses for 120V 30 A, but can be rewired for 208 and 240 VAC, 60 Hz by a qualified electrician.

• Constant voltage output.

• Electronic current limiting and high voltage shutdown.

• Temperature compensation with remote battery temperature sensor.

• Auxiliary output circuit for “Charger OK” indicator.

AC

Input

Warning: Do not connect the battery charger

AC input to the UPS system output. The battery

charger requires a separate AC supply circuit.

L N

120 VAC

Output

- +

Output

Input Voltage Selection

For 120 VAC Jumper:

2 & 3, 3 & 4, 5 & 6

For 208 VAC Jumper:

1 & 2, 4 & 5

For 240 VAC Jumper:

2 & 3, 4 & 5
