2.3 Installing a hard drive
32 Chapter 2: Setting up

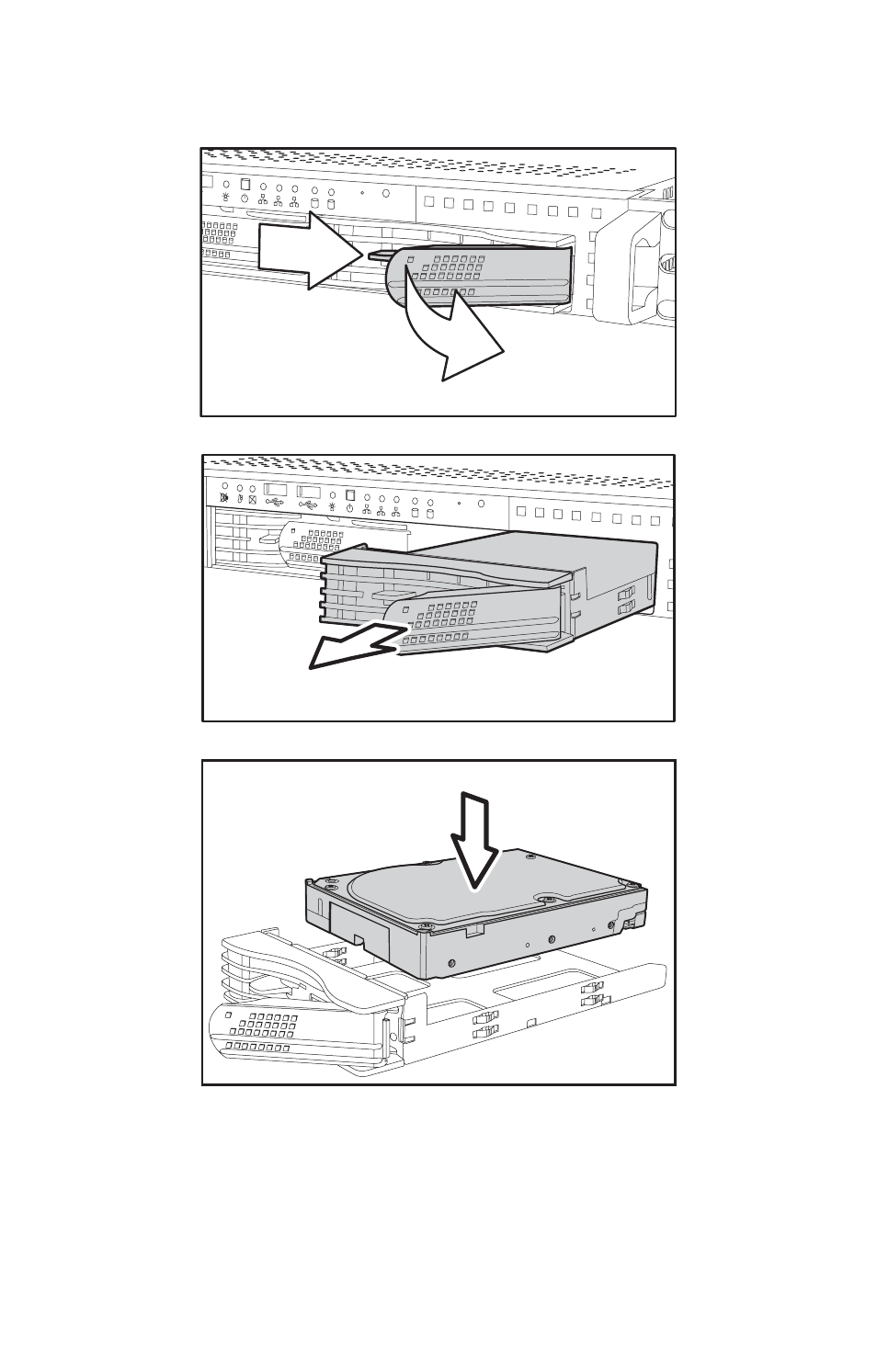

2. Press the drive bay locking latch in the direction of the
arrow (1) and pull the locking lever open (2).
3. Slide the drive bay out.
4. Insert a SCSI hard drive in the drive bay.
Note: If you are replacing an existing HDD,
you will need to remove the four screws that
secure it in the drive bay and remove it.
1 2 3
1 2 RST
1
2
1 2 3
1 2 RST
