SERVICE PARTS AND ILLUSTRATIONS
73
Oven Door Parts
84. NGC-3067*
Door, NGC, Generic*
NGC-3067-2*
Door, NGC, SBK*
85. NGC-3021
Kit, Shunt Plate
86. NGC-1061
Hinge Block
87. 102750
Handle, Door, Generic
NGC-1216
Handle, Door, SBK
88. NGC-1076-2
Actuator, Door
89. NGC-1132
Shim, Door Latch
90. 102945
Bolt, 1/4”-20 x 1.00
91. NGC-1138
Label, Precaution
92. 102809
#8-32 x 3/8” CSK 100°
93. NGC-1165
Label, Caution Empty
94. NGC-1125-1
Door Insulation 1
NGC-1125-2
Door Insulation 2
95. NGC-1127
Channel, Door Handle
96. 102748
Screw, #8-32 x 3/8”, Torx
Security
97. 101688
Screw, #8 x 1/2” PTH
98. 102698
Tape, Aluminum
99. NGC-1155
Name Plate, TurboChef
100. 101293
Nut, Push, 1/8”
101. NGC-1170
Label, Service
* Includes items 85 - 101.

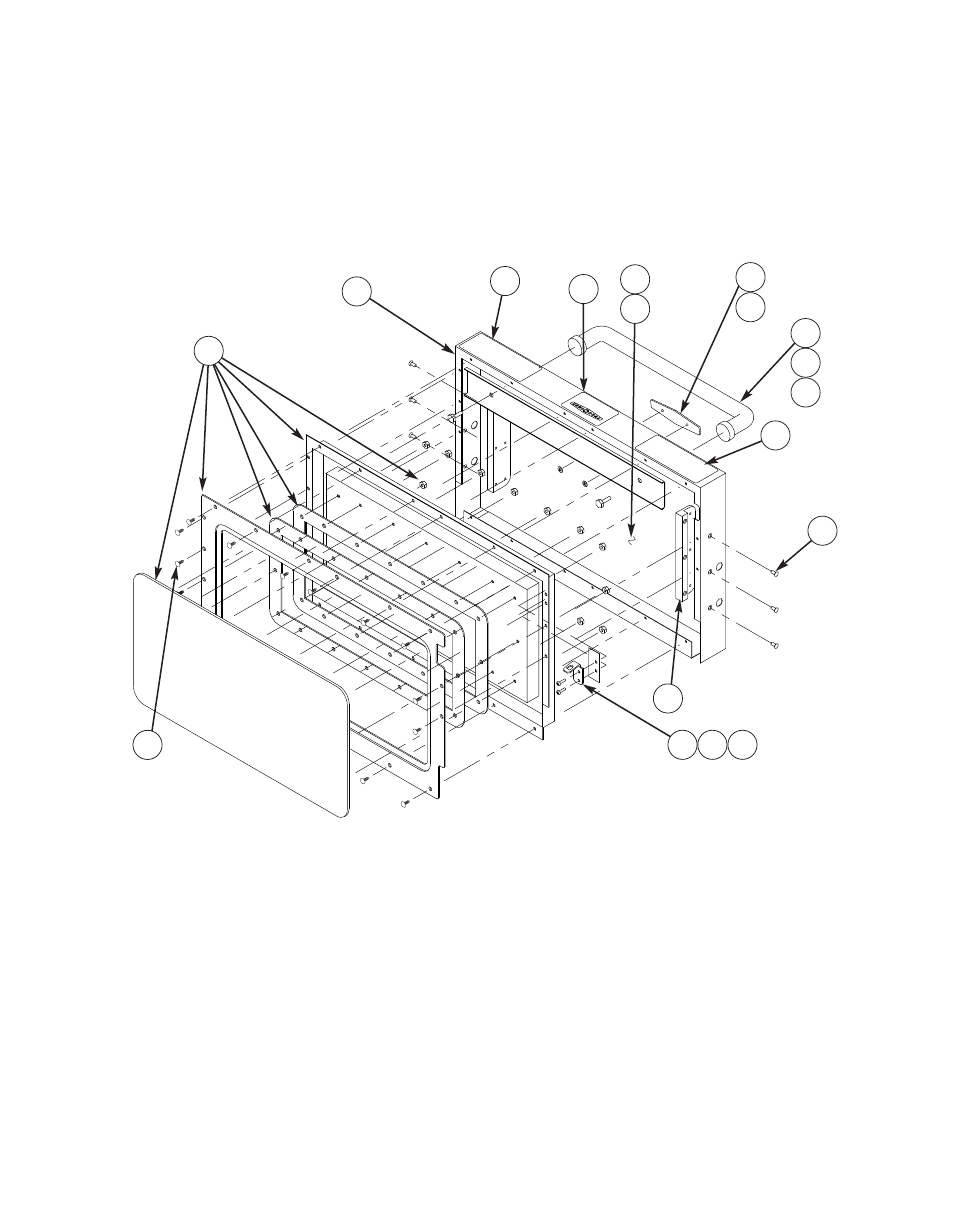

FIGURE 35: OVEN DOOR ASSEMBLY
Chapter 6: The Oven Door - Page 44
