SERVICE PARTS AND ILLUSTRATIONS

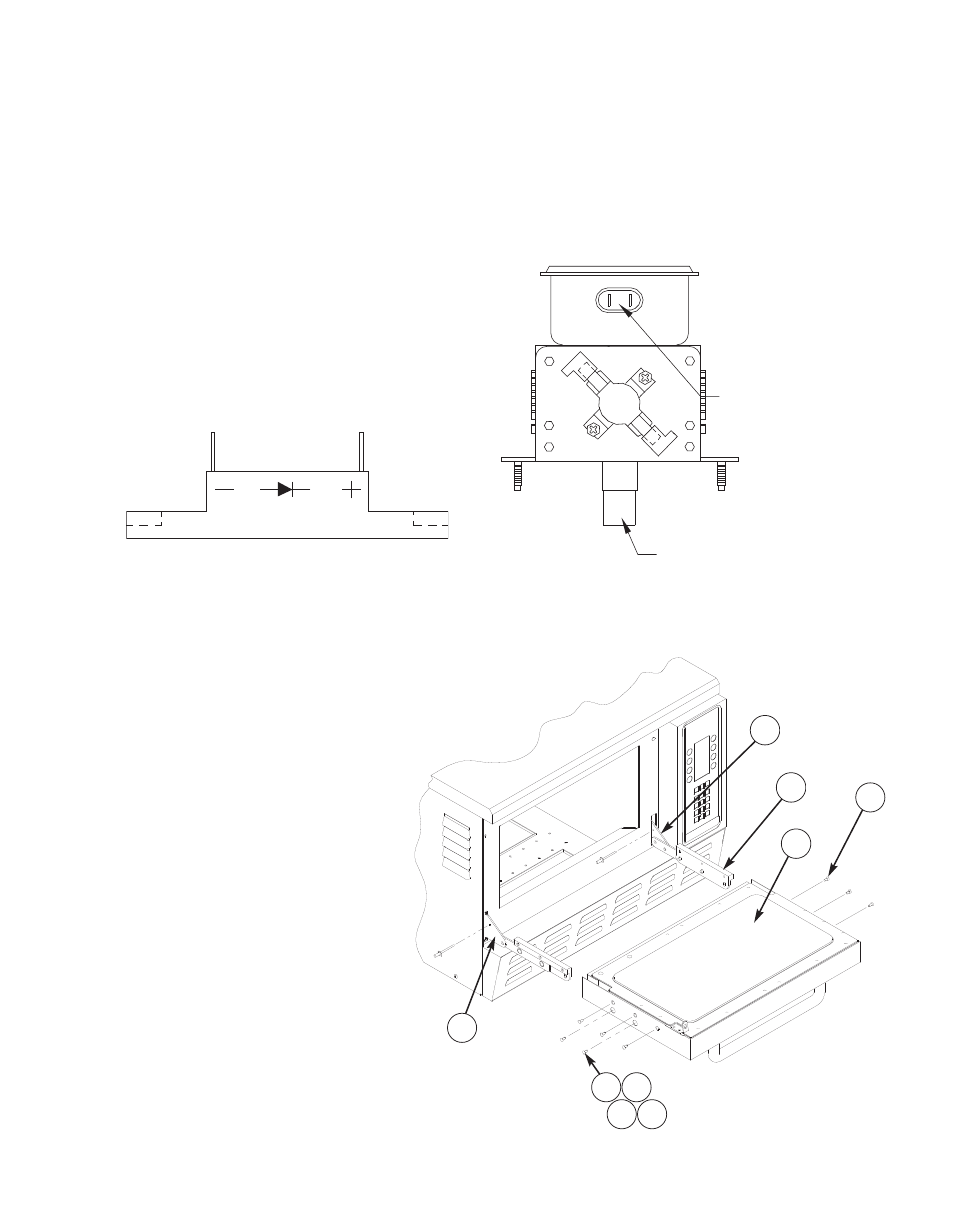

FIGURE 24 & 25: HIGH VOLTAGE DIODE AND MAGNETRON
Chapter 5: The Microwave System - Page 32
69
ANTENNA
F FA
FILAMENT AND
HIGH VOLTAGE
TERMINALS
Cook Door Parts
38. 102809 #8-32 x 3/8” PFH CSK
39. NGC-3067 Assy, Oven Door
(Traditional)
NGC-3067-2 Assy, Oven Door
(SBK)
40. NGC-1061 Hinge Block
41. 102804 Right Hinge
42. 102805 Left Hinge
43. 101381 #10-32 x 1/2” Hex SS
44. 102140 #10 Flat
45. 102350 #10 Split Lock
46. 101191 Cap, Hole
38
39
40
41
42
43 44
45 46
FIGURE 26: OVEN DOOR REMOVAL AND PARTS
Chapter 6: The Oven Door - Page 37
