Commander Installation Guide
Page 42 of 81 Trilogy Communications Limited Issue 9
5.6 500-43-50 12 WAY ROTARY ENCODER EXPANSION PANEL
These may only be connected to panels from the 500-xx--5x range.
Information about the following legacy panel types is also provided here:
• 500-43-51 1U, 8 REN level control panel
5.6.1 SPECIFICATION
Dimensions 485mm wide x 44.5mm high x 150mm deep
(excluding connectors) 200m approx. (including
mating connectors)
19” x 1RU rack mounting
Mains Input 90 – 260 V ac, 50-60Hz
Current Consumption 150mA @ 90V ac, 50mA @ 250V ac.

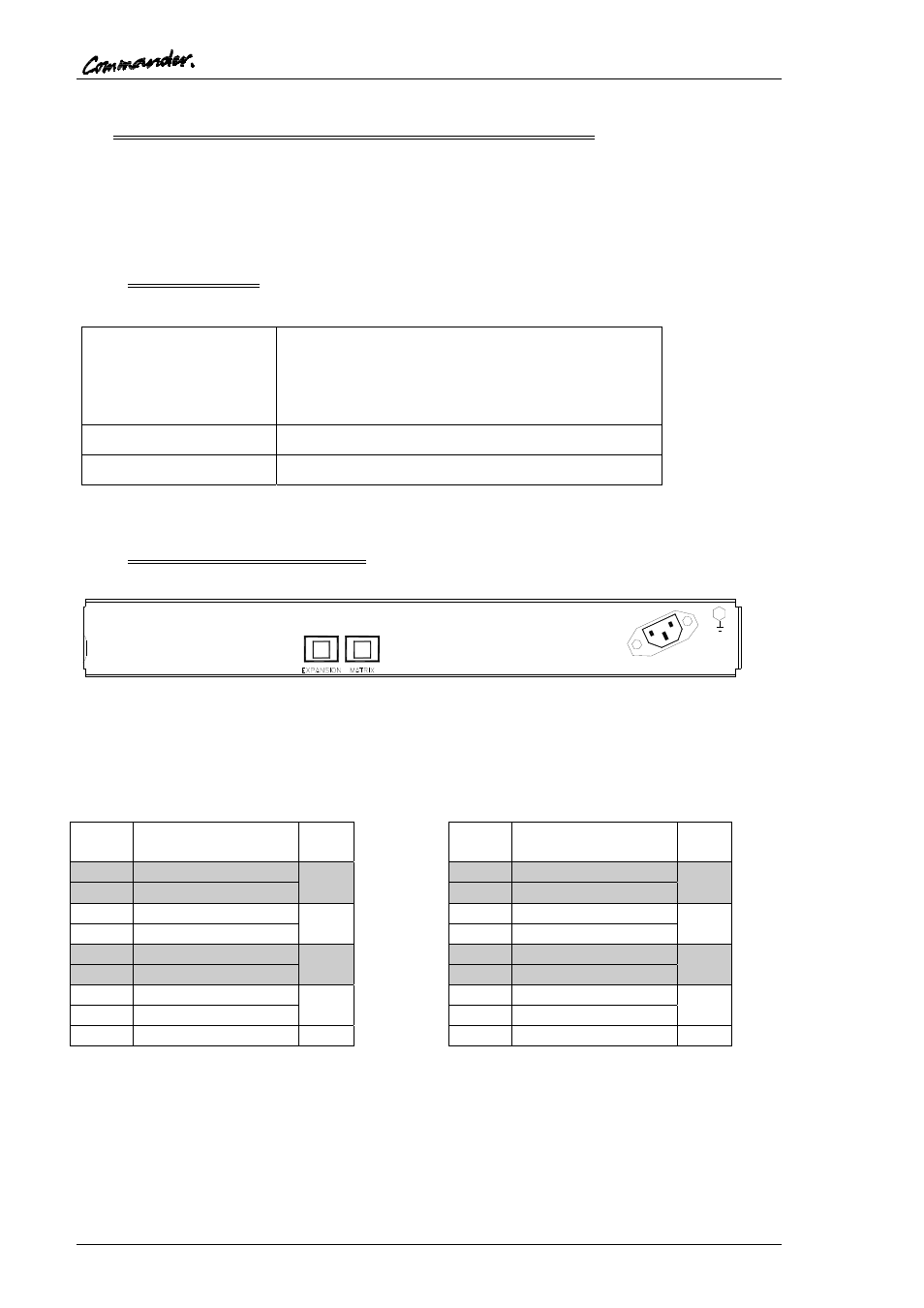

5.6.2 REAR CONNECTOR LAYOUT
The “expansion in” and “expansion out” connections are provided on RJ45 sockets. The pin-
out format of these connectors is given below.
Expansion in (Matrix) – RJ-45 fixed
socket on panel
RJ-45
Pin Function
1 Panel Data out + Pair
1
2 Panel Data out -
3 Panel Data In + Pair
2
6 Panel Data In -
5 Panel Audio out + Pair
3
4 Panel Audio out -
7 Panel Audio in + Pair
4
8 Panel Audio in -
Cable Screen
Expansion out (Expansion) – RJ-45
fixed socket on panel
RJ-45
Pin Function
1 Panel Data in + Pair
1
2 Panel Data in -
3 Panel Data out + Pair
2
6 Panel Data out -
5 Panel Audio out + Pair
3
4 Panel Audio out -
7 Panel Audio in + Pair
4
8 Panel Audio in -
Cable Screen
