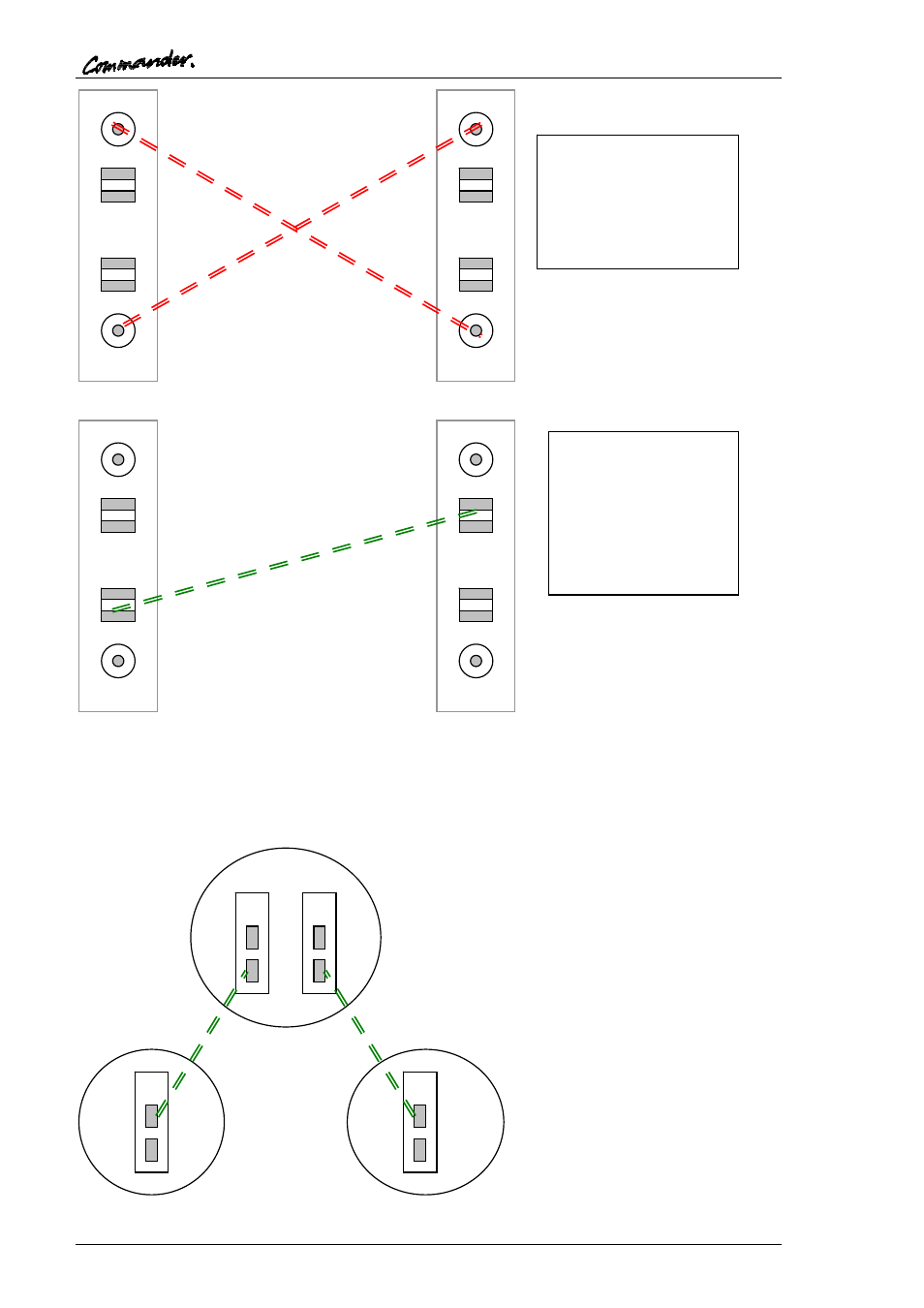

A simple 3 matrix LAN is shown below. The MCR matrix is fitted with two Network Cards.
Routes from Studio A to Studio B are made via the matrix in MCR. For clarity, only the RJ45
connections are shown.
Or
Connect a single
CAT5 cable (non-
crossover) between
two RJ45 sockets.
Either
Using two 50R co-axial
cables via the BNC
connectors.
A
MCR
B
