Toshiba TDP-MT200 - Manual (Page 42)

42
Specifications (Continued)

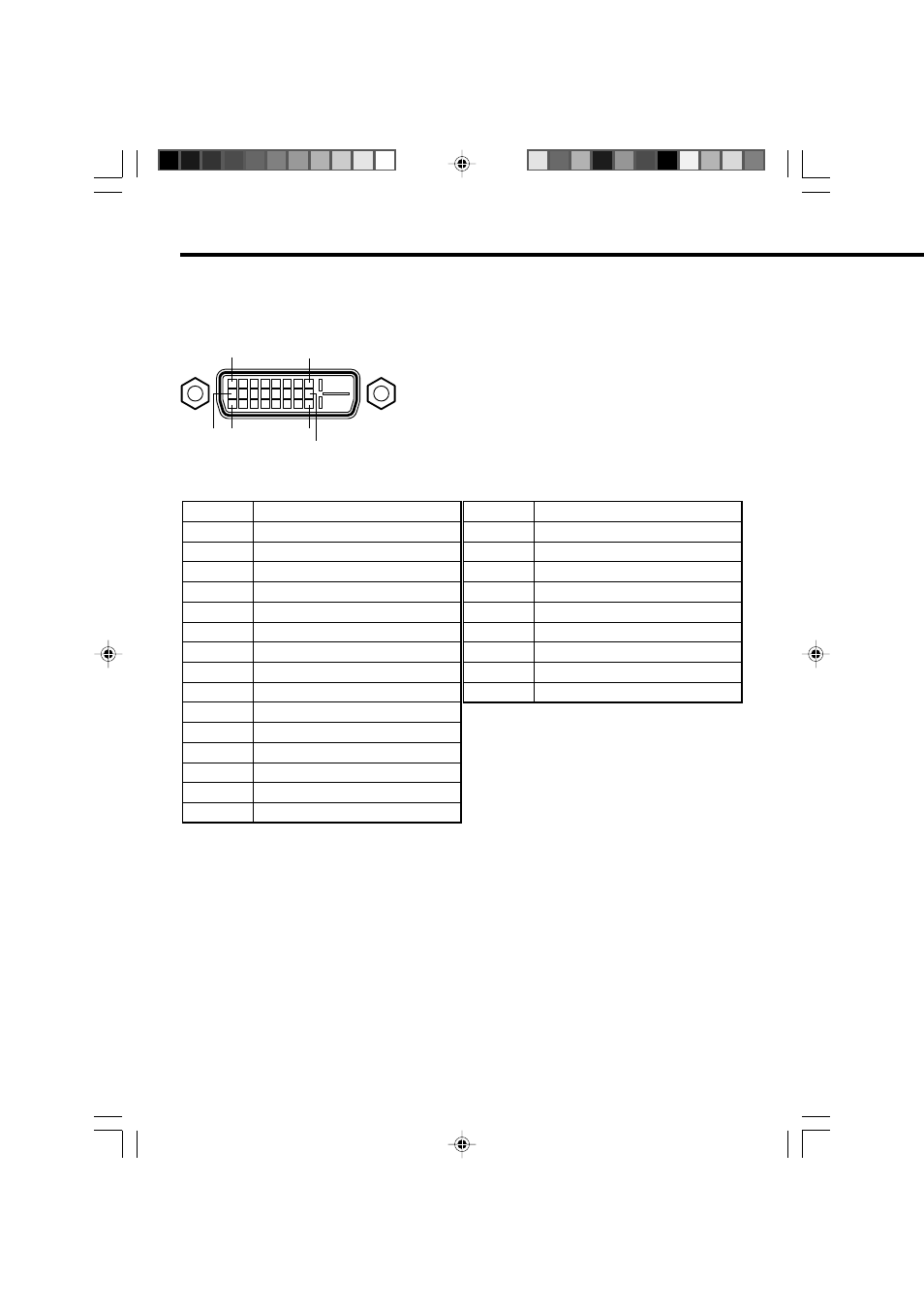

■ Pin arrangement for the DVI-D terminal
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
P i n d e s c r i p t i o n
T.M.D.S. data 2–
T.M.D.S. data 2+
T.M.D.S. data 2/4 shield
T.M.D.S. data 4–
T.M.D.S. data 4+
DDC clock
DDC data
Analog vertical sync signal
T.M.D.S. data 1–
T.M.D.S. data 1+
T.M.D.S. data 1/3 shield
T.M.D.S. data 3–
T.M.D.S. data 3+
+5V power supply
GND(+5V, H Sync & V Sync)
P i n d e s c r i p t i o n
Hot plug detection
T.M.D.S. data 0–
T.M.D.S. data 0+
T.M.D.S. data 0/5 shield
T.M.D.S. data 5–
T.M.D.S. data 5+
T.M.D.S. clock shield
T.M.D.S. clock+
T.M.D.S. clock–
Pin No.
16
17
18
19
20
21
22
23
24
D V I - D
24
8 1
16
17 9
DVI DIGITAL connector
