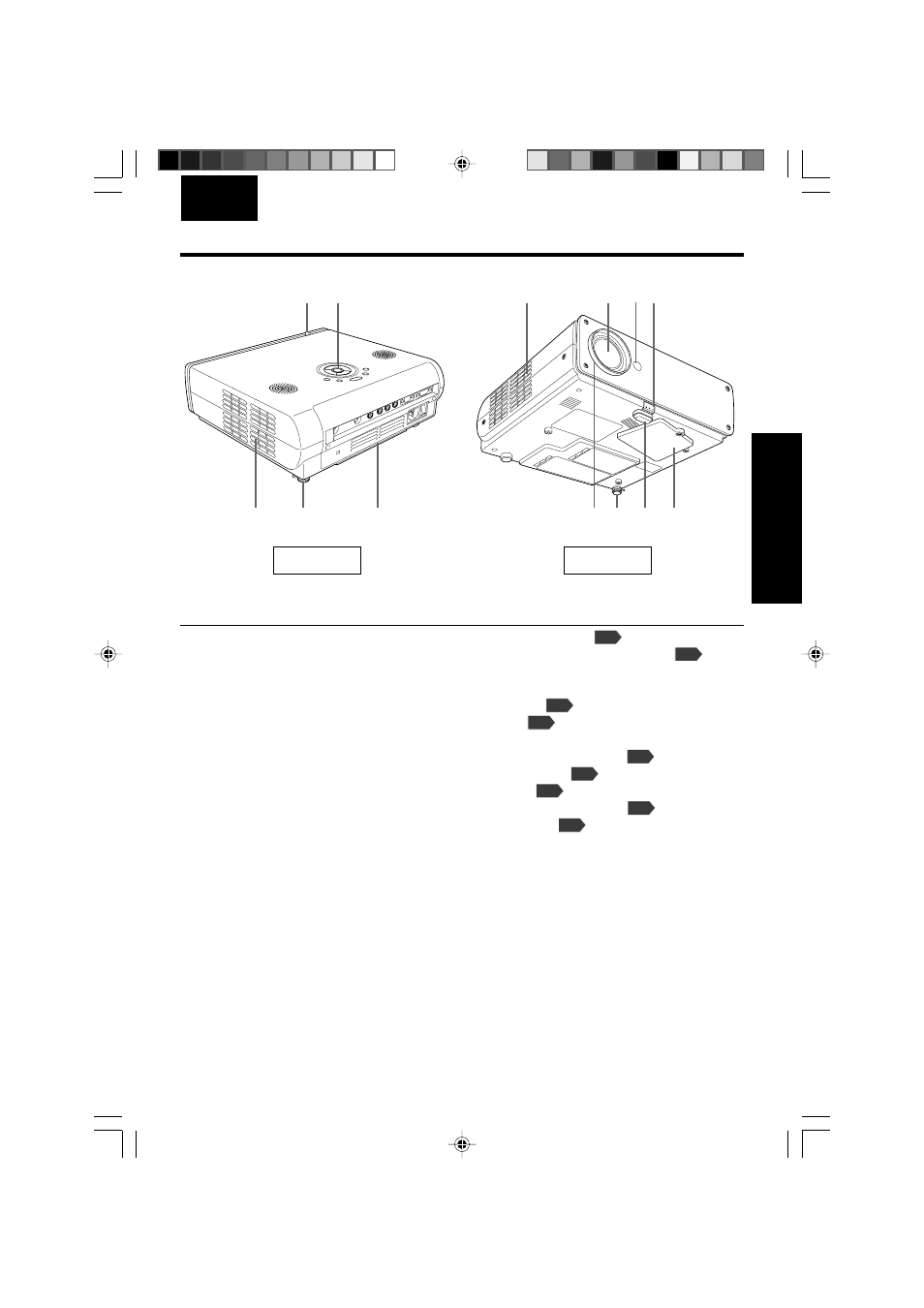

Names of each part on the main unit

Name

: Function

(1) Foot adjuster release button : Press to stow the foot adjuster.

p.24

(2) Infrared remote sensor

: Senses commands from the remote control.

p.18

(3) Lens

: Projects expanded image.

(4) Air intake

: Draws in air from outside the projector.

(5) Control panel

: Operates the projector.

p.16

(6) Zooming lever

: Adjusts screen size.

p.24

(7) Air exhaust

: Expels air that has grown hot inside the projector.

(8) Tilt adjuster

: Adjusts the projector’s horizontal tilt.

p.24

(9) Rear panel

: Connects external devices.

p.17

(10) Focusing lever

: Adjusts screen focus.

p.24

(11) Foot adjuster

: Adjusts the vertical projection angle.

p.24

(12) Lamp cover

: Remove to replace lamp.

p.34

Back

Front

(9)

(10)

(8)

(11)

(7)

(12)

(8)

(5)

(1)

(4)

(3) (2)

(6)
