19
Preparations
English Français Español Deutsch Italiano Português Svenska

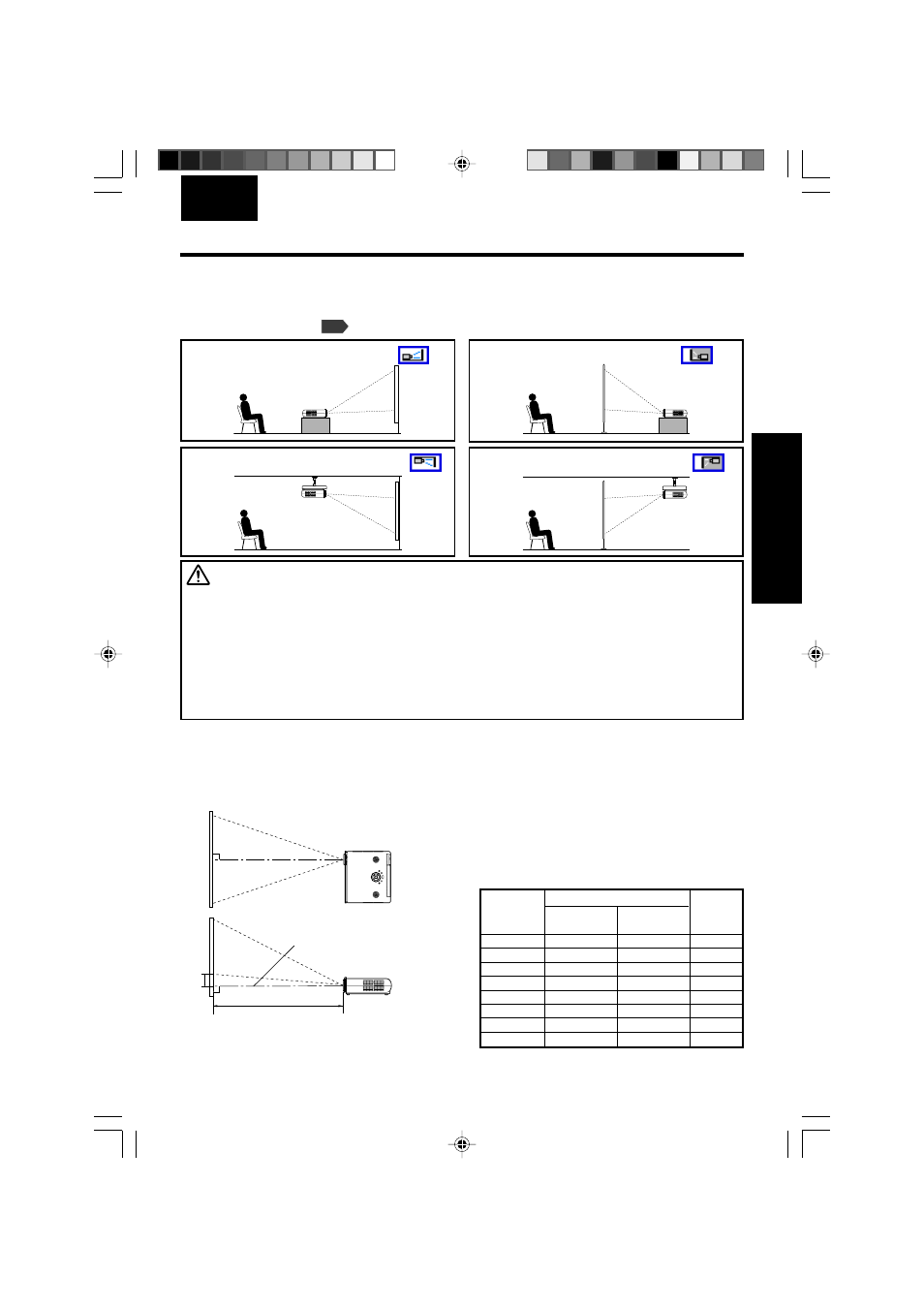

Projection Distance and Size
Use the figures, tables, and formulas below to determine the projection size and projection distance.
(Projection sizes are approximate values for full-size picture with no keystone adjustment.)
Placement Styles
As shown in the figures below, this device can be placed in 4 different styles.
The factory setting is “floor-mounted front projection.” Set the Projection mode in the
default setting menu
p.31 , in accordance with your needs.
Placement
Floor-mounted front projection
WARNING
• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit.
Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus
resulting in injury.
• If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the
projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge.
Improper mounting could cause the projector to fall, resulting in an accident.
• If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let
everyone involved with the use of the projector know that fact.
Floor-mounted rear projection
Ceiling-mounted front projection Ceiling-mounted rear projection
Screen As seen from above
Lens center
As seen from the side
a (min length) = projection size (inches) × 0.0414
a (max length) = projection size (inches) × 0.0498
a is the distance (m) between the lens and the
screen, and corresponds to a range of 1.20 m to
12.00 m. H is the height from the image bottom to
the center of the lens.
90 °
H
a
90 °
projection
projection distance a (m)
height (H)
min length max length
size (cm)
(zooming max) (zooming min)
(cm)
24.1 (61) — 1.20 16
40 (102) 1.66 1.99 27
60 (152) 2.48 2.99 40
80 (203) 3.31 3.98 53
100 (254) 4.14 4.98 67
150 (381) 6.21 7.47 100
200 (508) 8.28 9.96 134.4
290 (736) 12.00 — 195
