Step 6. Remove the two screws holding the Encoder Head Assembly. Then, while
feeding the associated cables through the Rear Plate cutout, Remove the Encoder
Head (see Figure 5-27).
980264-001 Rev. B
5-27
CHAPTER 5

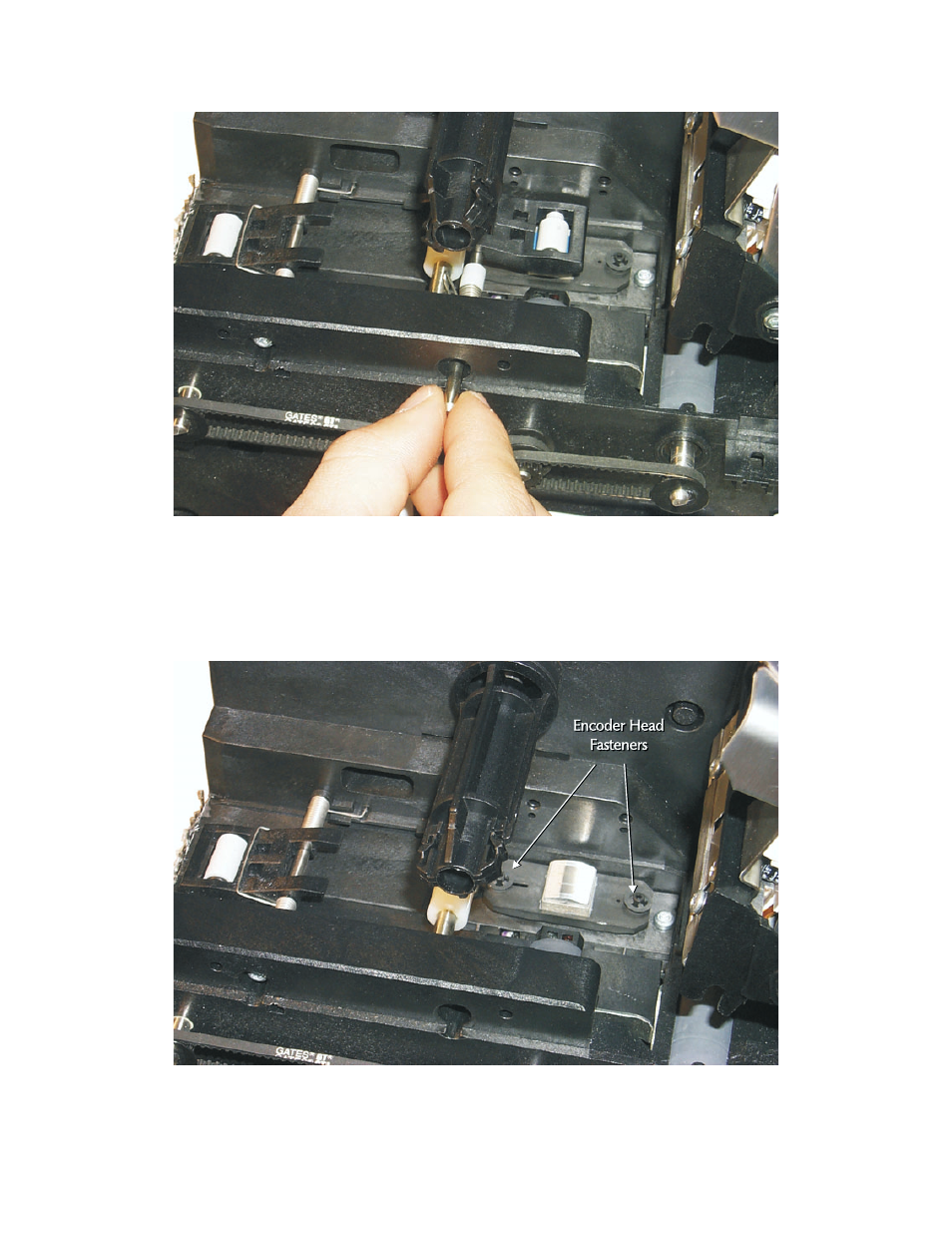

Figure 5-26. Pressure Roller Rod Removal.
Figure 5-27. Encoder Head Fasteners.
