5.2.9 Front Belt Removals
Figure 5-13 shows the Front Belts. These belts transport cards downstream from the Platen
Roller. Proceed as follows:
Step 1. Remove the Rear and Front Case Members (see Sections 5.2.1 and 5.2.2).
Step 2. Slide the belt(s) off of the respective pulley(s). Note that the belt on the right
requires removal to gain access to the pulley for the belt on the left.
980264-001 Rev. B
5-15
CHAPTER 5

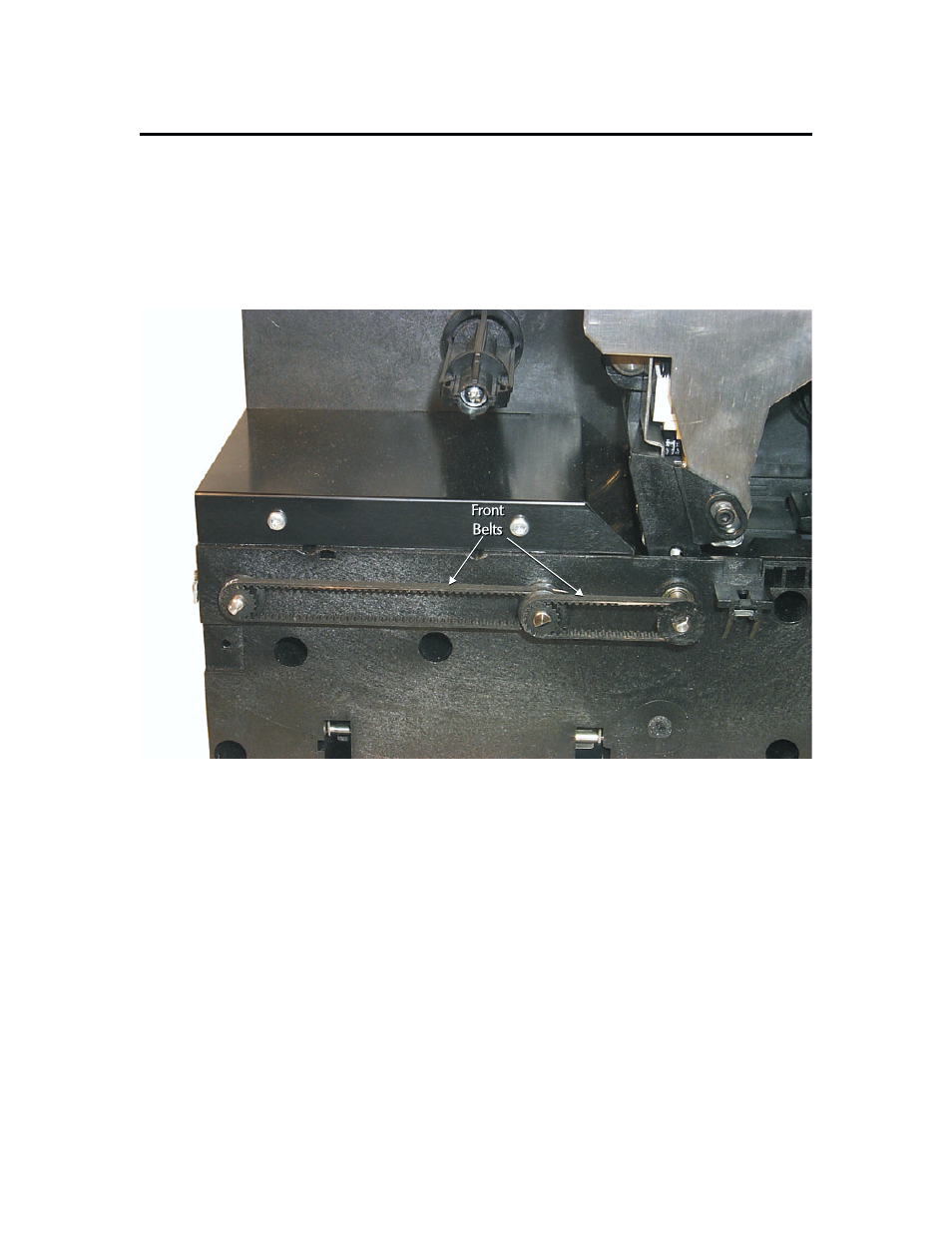

Figure 5-13. Front Belts.
