24 Port Stackable Managed Switch – User Guide Page 7

LED Indicators

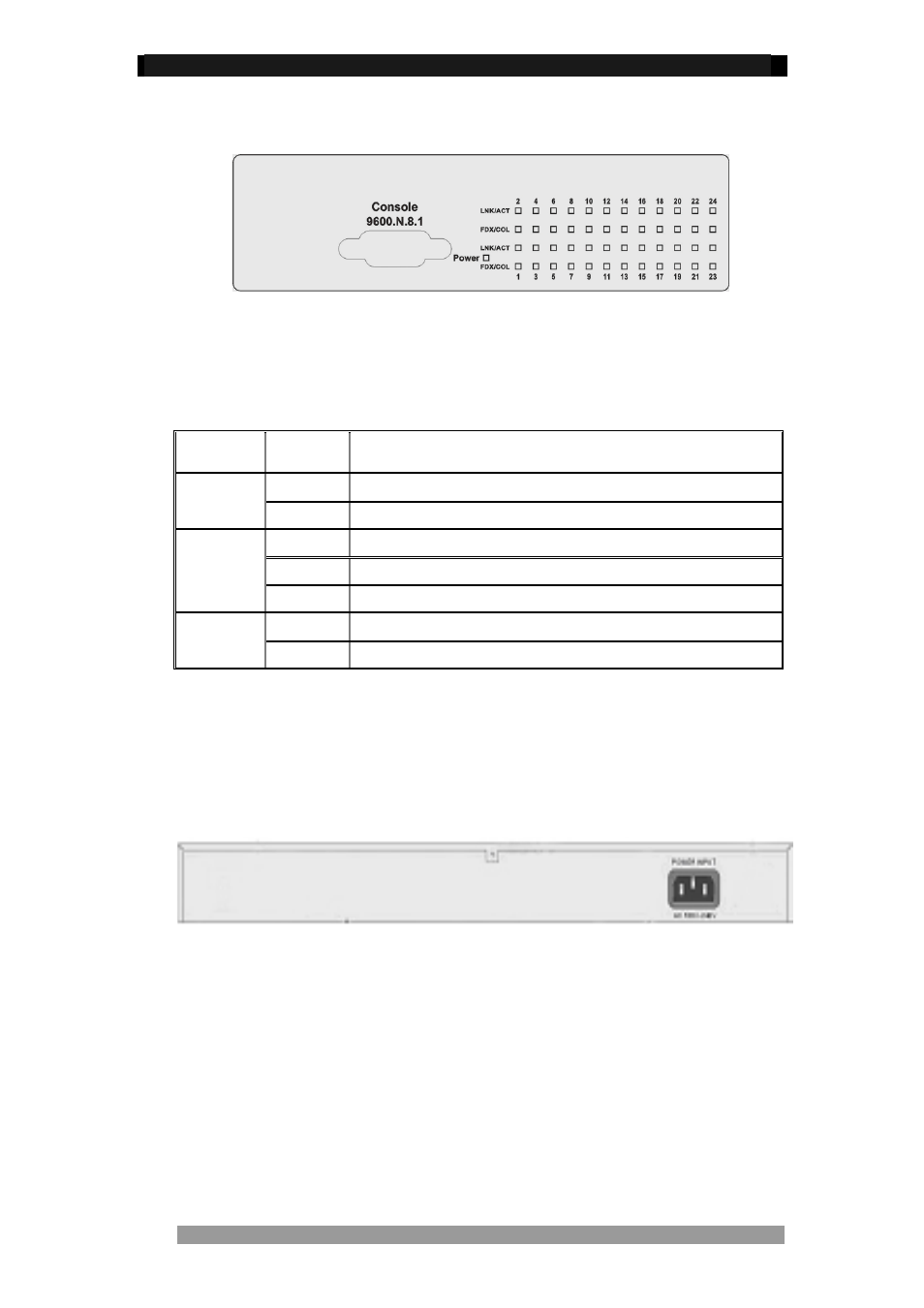

Figure3. LED indicators

All LED indicators are located on the front panel of the 24 Port Stackable Managed Switch
and provide a real-time indication of Switch condition and operational status. The following
table details the LED states:

LED

Status

Description

Green Power

Power

Off

Power is Off.

Green

The port is connected to an Ethernet device.

Blinks

The port is receiving or transmitting data

LNK/ACT

Off

No device is attached

Orange

The port is operating in Full-duplex mode

FDX/COL

Blinks

Collisions are occurring on the port (Half-duplex only)

Table 1. Descriptions of LED Indicators

Rear Panel

The 3-pronged power socket is located at the rear panel of the Switch. The Switch operates in
a range between 100-240V AC, 50-60Hz without adjustment

Figure 4. The Rear Panel of the 24 Port Stackable Managed Switch
