24 Port Stackable Managed Switch – User Guide Page 17
Administration Configuration
The Administration Configuration screen, selected from the Switch Configuration menu,
allows the configuration of device information, IP address, login username and password.

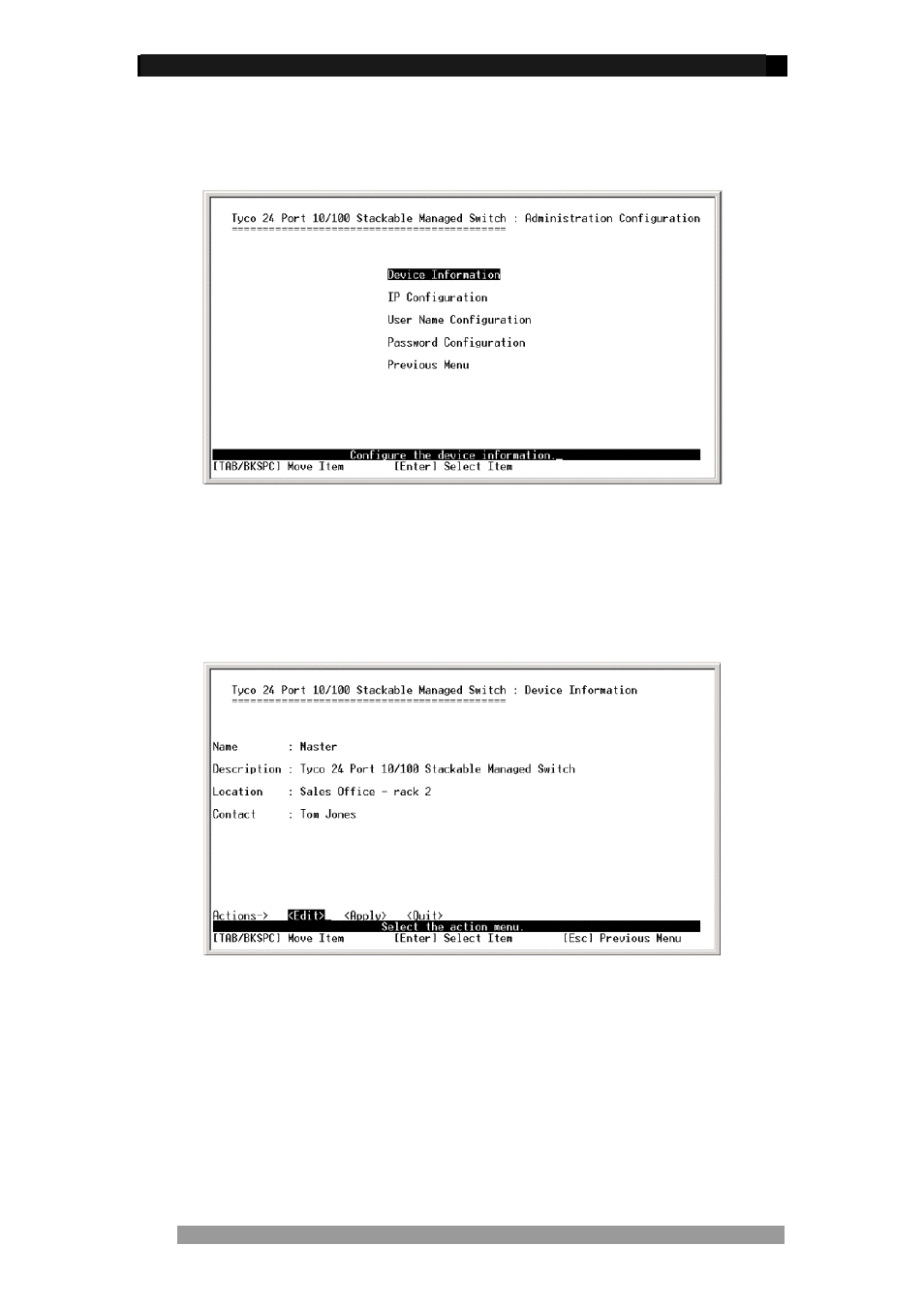

Figure 17. Administration Configuration Screen
Device Information
In this menu you can change device name, description, location and contact details. Select
the mode from the action line and edit the required fields, use the key to move
to the next field. When configuration is complete use the key to move back to the
action line and the changes.
Figure 18. Device Information Screen
Product Number 0-1591099-x © Tyco Electronics 2005 Issue 1
