24 Port Stackable Managed Switch – User Guide Page 13
Status and Counters
In Status and Counters, you can view port status, counters, and system information. Press the
to choose item, and press key to select item.

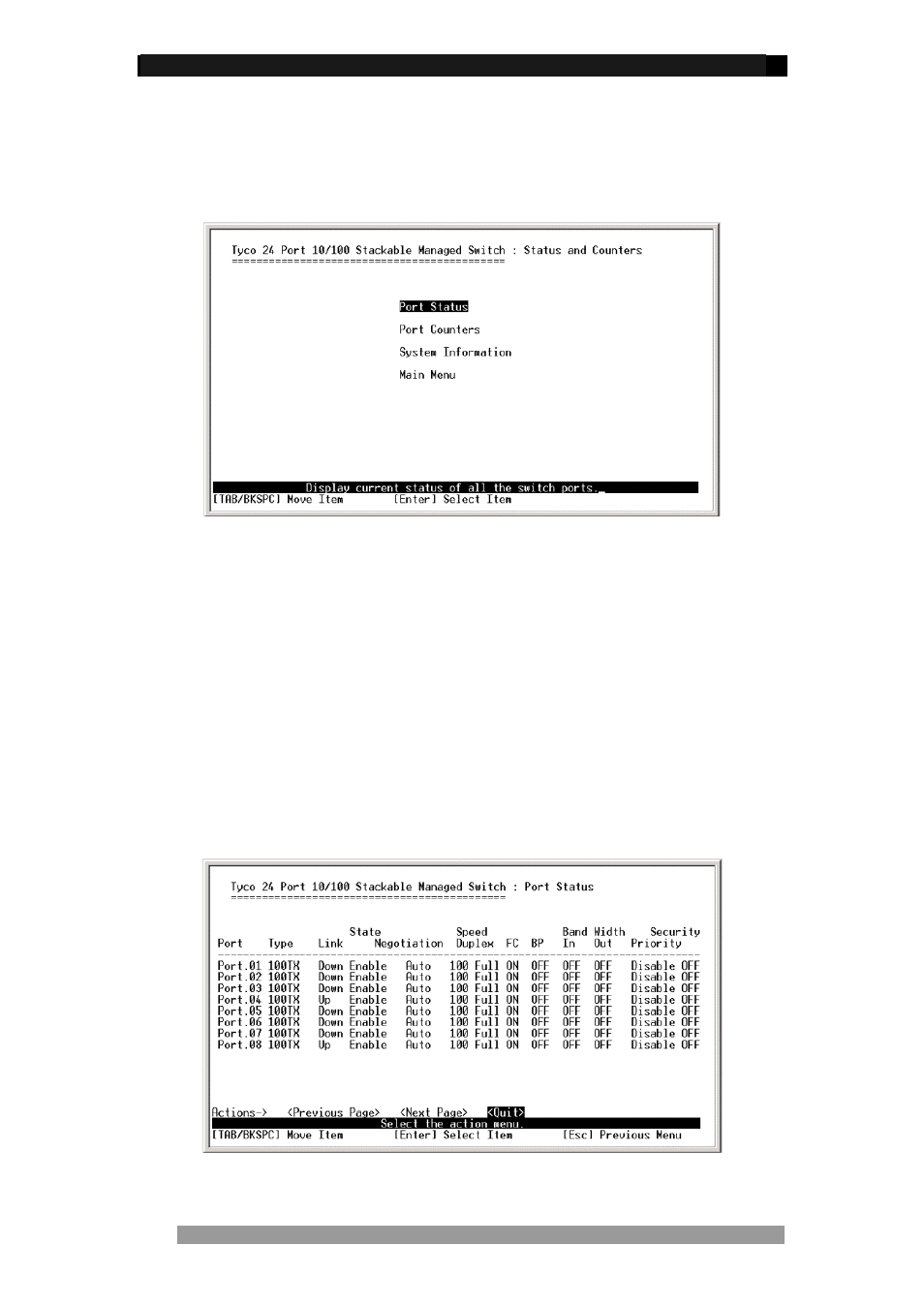

Figure 12. Status and Counters main configuration screen
Port Status
This read-only screen lists the status of every port. Select the and page> to scroll through the full port list.
• Type: Displays the port type.
• Link: Displays link status. UP is a valid working link, and Down is no link.
• State: Displays if port is Enabled or Disabled by management
• Negotiation: Displays the auto negotiation status.
• Speed Duplex: Displays port speed and duplex mode.
• FC: Displays the flow control status – On or Off
• BP: Displays backpressure status – On or Off
• Bandwidth In/Out: Displays bandwidth In/out control status.
• Priority: Displays the port priority status. Enabled or Disabled.
• Security: Displays the port security status. On or Off.
Figure 13. Port status Screen
