Having selected working ports from the LACP Configuration screen the above is displayed.
Select from the action line and enter the number of ports to be working port. Press
to return to the action line and to save the configuration.
State Activity
If a LACP trunk has been configured it is possible to set the port to the following modes:
•
Active (default) – The port automatically sends LACP packet to the neighbor device
to establish a trunk connection
•
Passive – The port waits for a LACP packet from the neighbor device before
establishing a LACP trunk connection.
NOTE: One or both ends of the trunk link must be set to ‘Active’ .

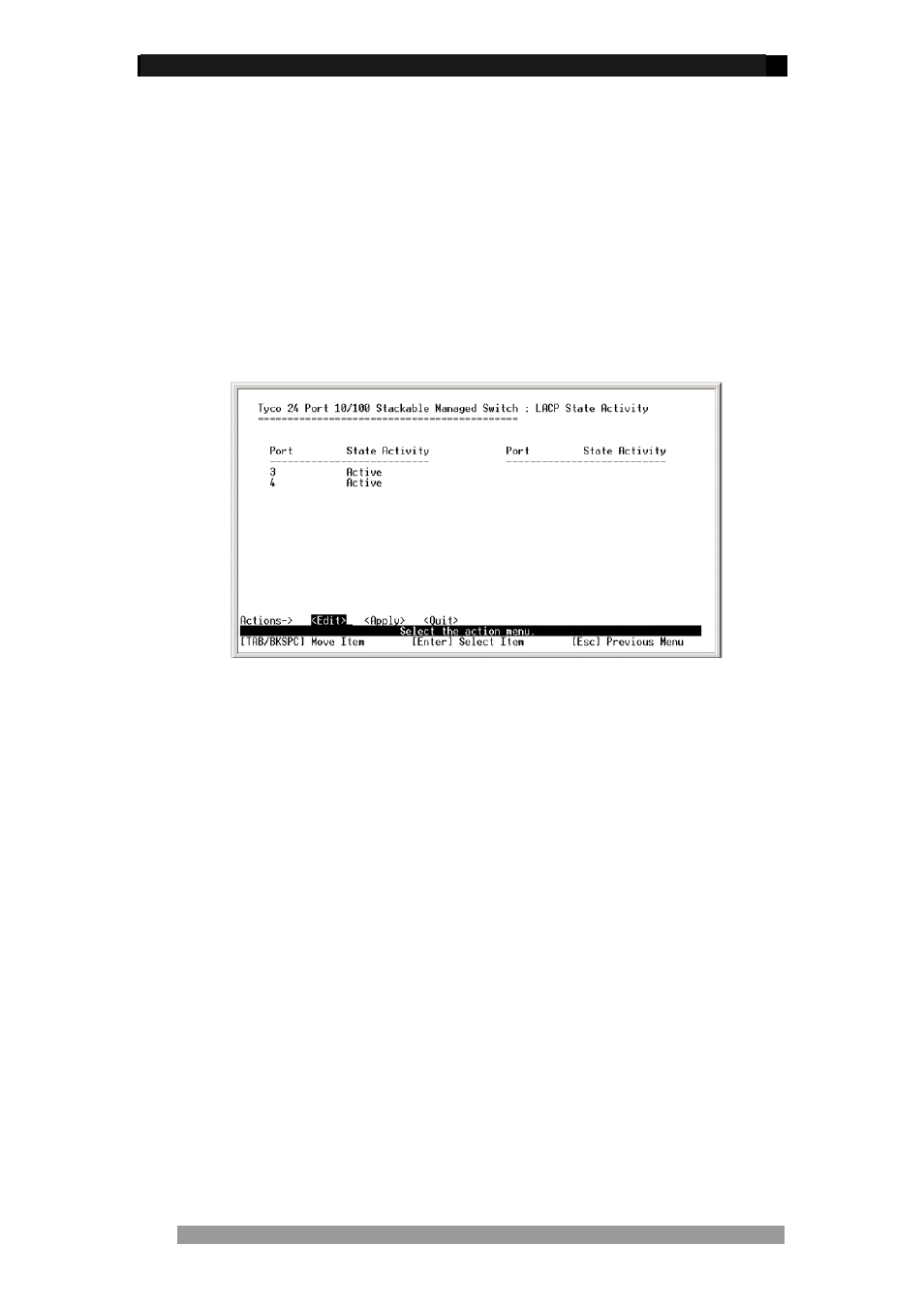

Figure 33. LACP State Activity Screen
After selecting this option from the LACP configuration the screen above will appear. Now
select from the action line. Use the key to highlight the port to be modified and
press the to toggle between Active and Passive modes. Having made the
selection press to return to the action line and to save the configuration.
