Edit/Delete VLAN Group
This menu section is selected from the VLAN Configuration menu and allows an existing
VLAN group to be edited or even deleted. When this option is selected, all existing VLAN
groups on the Switch are displayed. Use the key to navigate to the field or
field in the action line and then use the key to select the option.
If was selected, the cursor now moves to the VLAN group are. Use the key to
select the required group to edit and make the required changes. Use the key to return
to the action line and then the changes.
If was selected, the cursor now moves to the VLAN group. Select the required
group using the and then to delete the VLAN group. Use the key to
return to the action line and then the changes.
NOTE: The Default VLAN cannot be deleted.
Group Sorted Mode
This menu controls the order VLANS are listed in the ‘Edit/Delete VLAN Group’. The VLANS
can either be sorted using VLAN ID (Numerically) or by VLAN Name (Alphabetically). Select
from the action line and use the to toggle between VLAN ID and Name.
Having selected the required order method, use the key to return to action line and
then the changes.

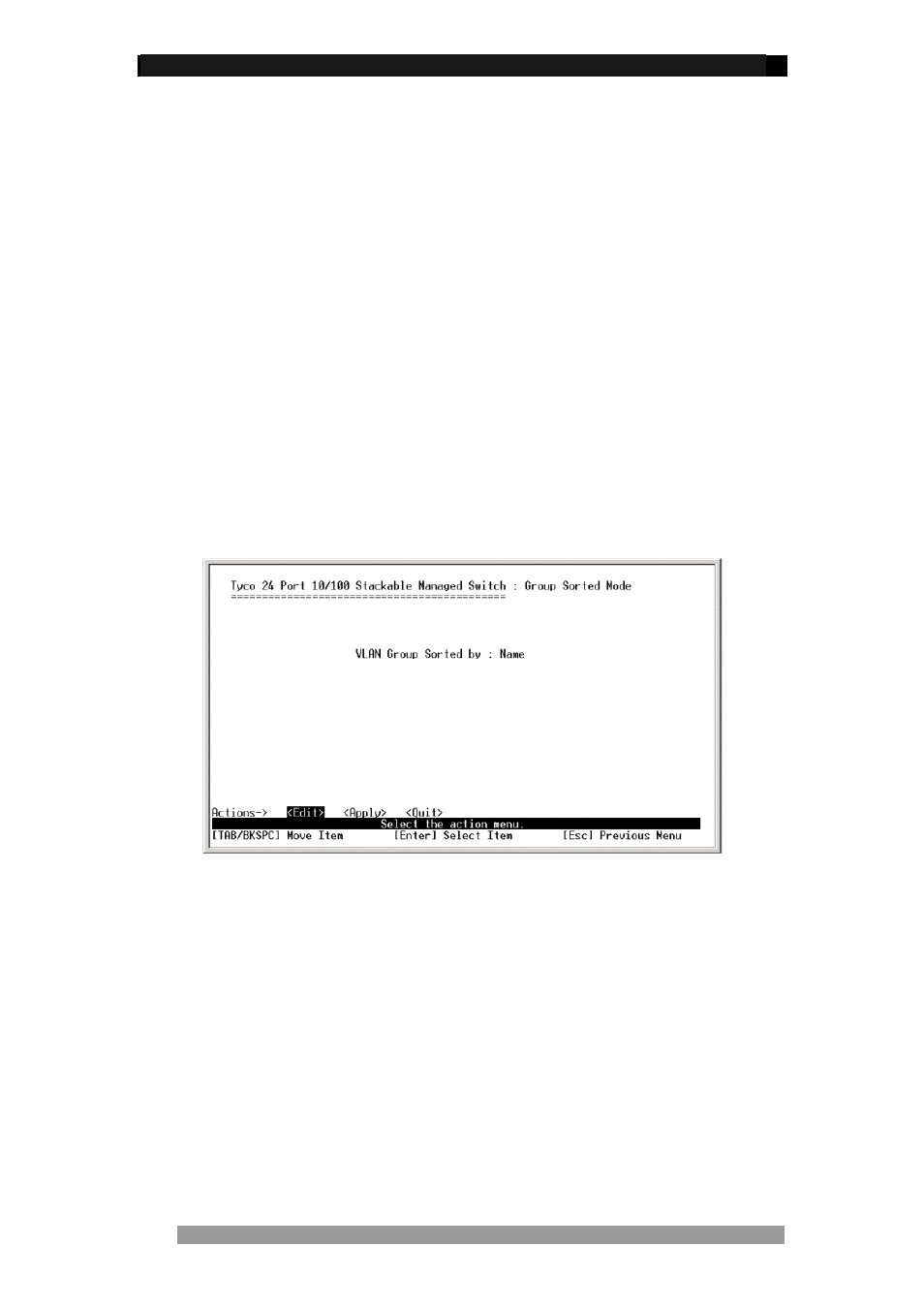

Figure 27. Group Sorted Mode Screen
