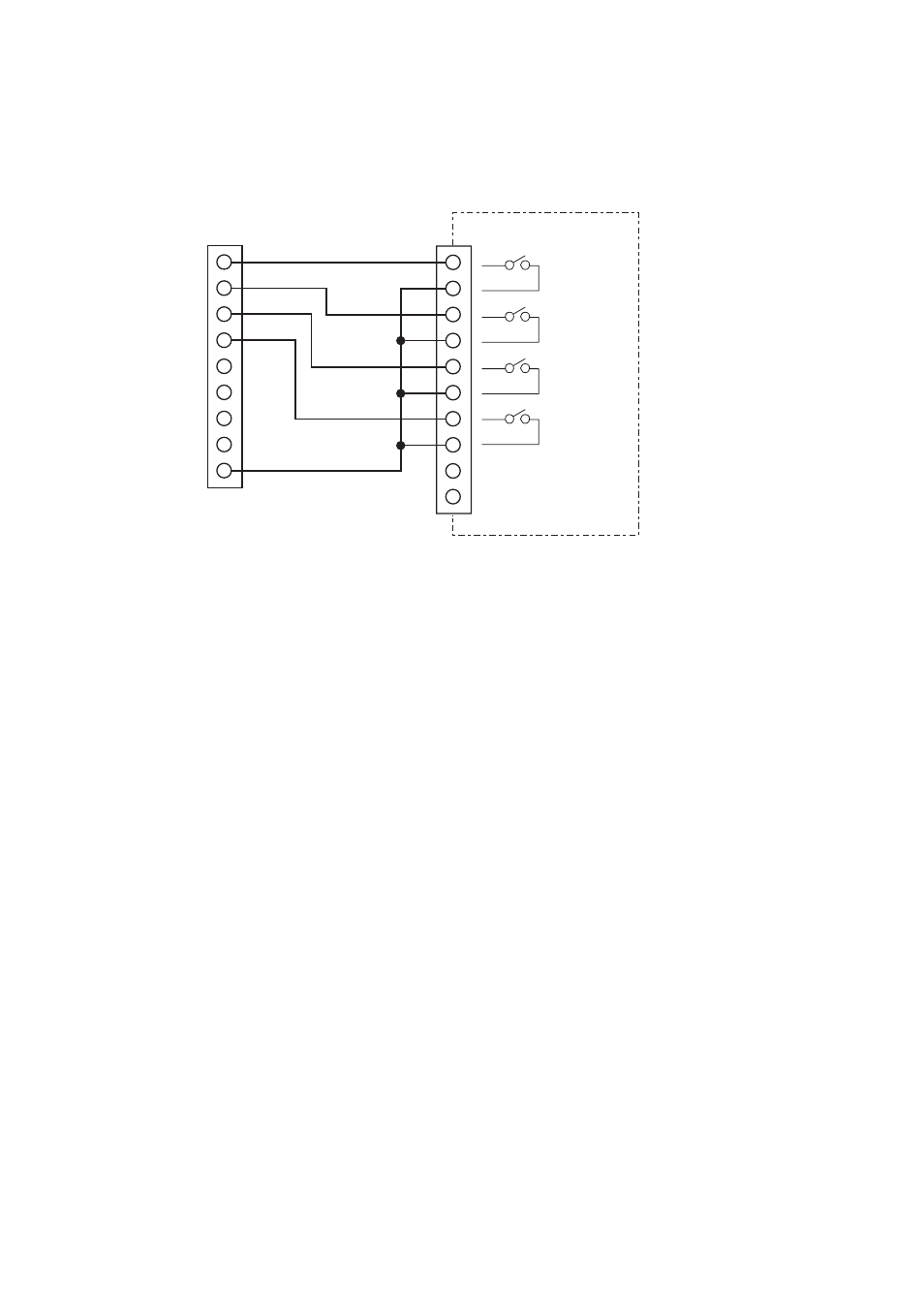

16.3.4. Connecting the SS-9001
The control input terminals of SS-9001 are polarized non-voltage contact inputs. With the interlock output
terminal setting in the Event setting, the SS-9001's internal relays can be activated. Make necessary
connections depending on applications.
