Key lock function setting flow chart, P. 79) – TOA Electronics A-9060S User Manual
Page 79
79

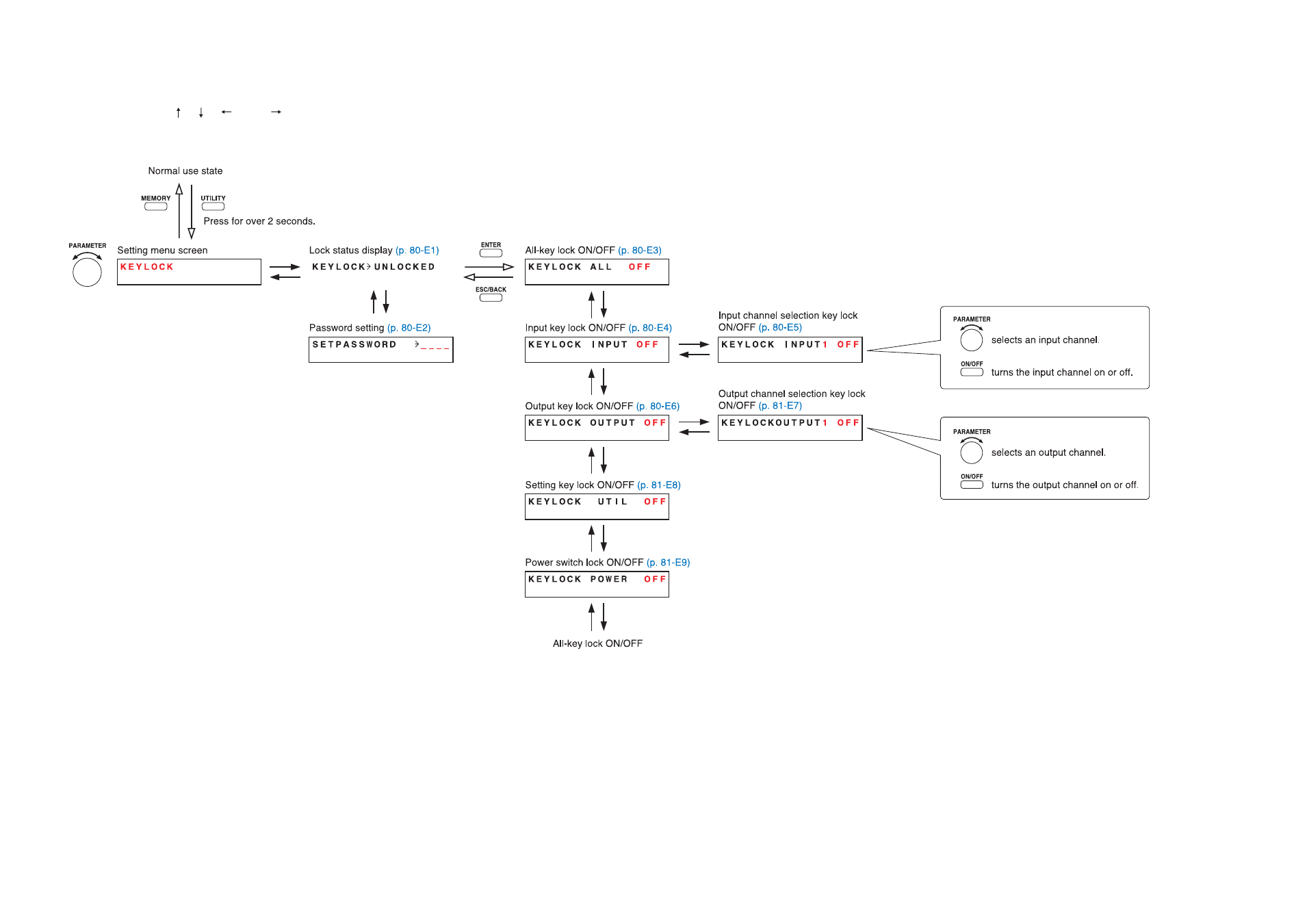

13.9.2. Key lock function setting flow chart
The screen display examples shown below may differ from actual displays.
The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting
contents to be selected with the Parameter setting knob, input channel selection key or other designated keys.
The indications of the [ ], [ ], [
], and [
] arrows represent that the screen is switched with the Screen
shift key.
Unless otherwise specified, use the Parameter setting knob for each parameter selection.
Note
The selectable output channel in
the 1-channel output operation
method is OUTPUT 1 only.
