13.8.3. Adjustment mode setting items
E V E N T
0 1
– R O U T E
O N
FAULT
KEYLOCK
EMERGENCY
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8

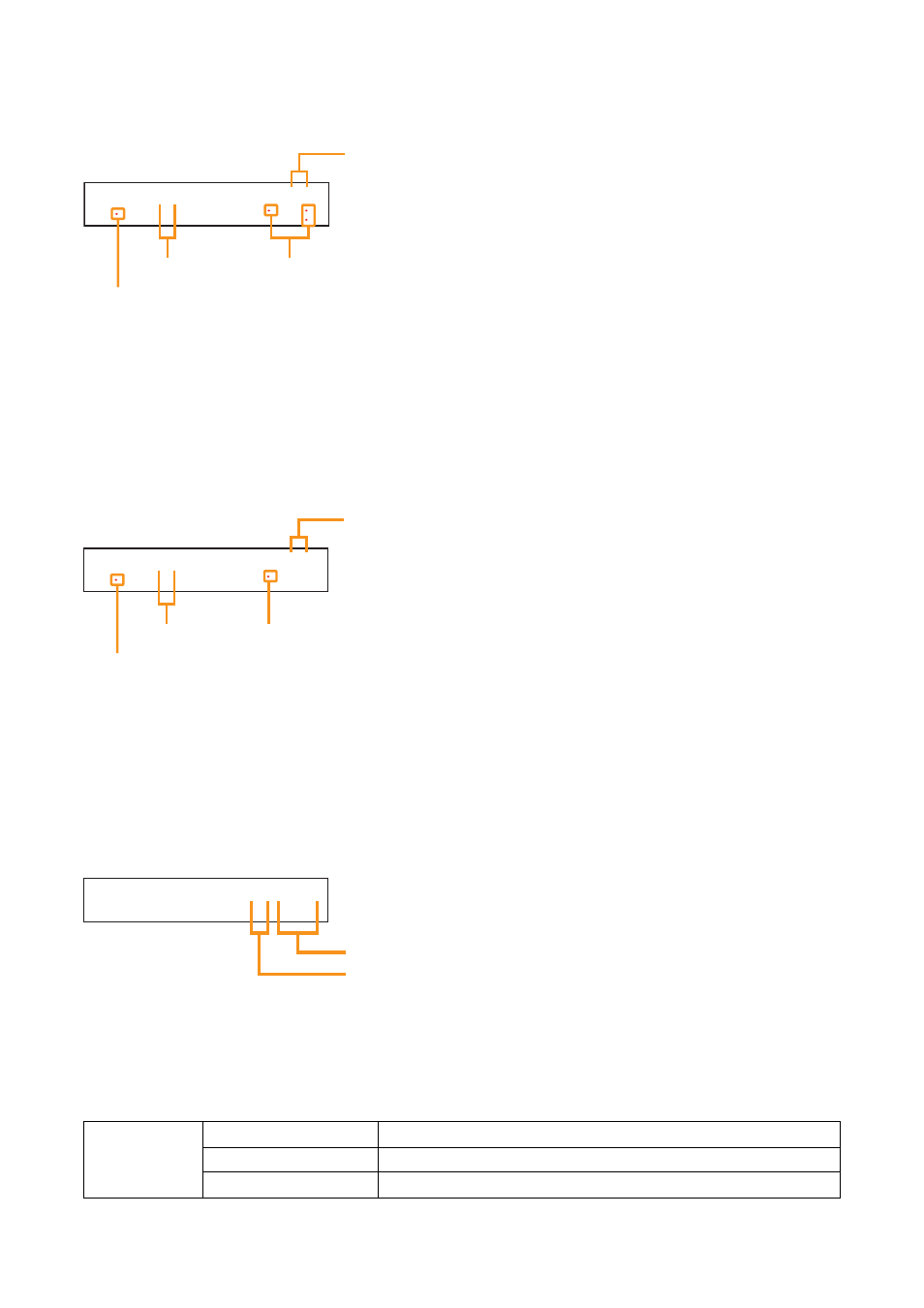

Event No.
Output channels set in Event setting
Input channel set in Event setting
Event activation ON/OFF
(D1) Event selection (In the
normal matrix operation)
Rotate the Parameter setting knob to obtain the Event No. of which settings are desired to be adjusted.
The ON or OFF indication shows the corresponding Event activation status when the unit enters the
Adjustment mode.
To adjust the Event's setting, turn the Event activation ON using the input channel ON/OFF key.
Select the Event here and press the Right shift key to make the Event-related adjustments.
You cannot activate the selected Event if the assigned input channel is off.
Unless otherwise specified, use the Parameter setting knob for each parameter selection.
I N P U T
0 1
O N
FAULT
KEYLOCK
EMERGENCY
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Channel No.
Output channel set on the basis of the operation method
Input channel
Input channel ON/OFF
(D2) Input channel selection (In
the 1-channel or 2-channel
output operation)
Rotate the Parameter setting knob to select the input channel No. for which you want to make relevant
settings.
The ON/OFF indication shows each channel status when the unit enters the Adjustment mode.
To adjust the input channel's setting, turn the input channel ON using the input channel ON/OFF key.
Select the input channel here and press the Right shift key to make its related adjustments.
I N 1 – I N 1
O N + 1 0 0
.
:
Input gain
Input ON/OFF
(D3) Input gain setting
Adjust the input gain with the input volume control.
To stop the sound output temporarily, press the input channel ON/OFF key.
The input channel, even when set to OFF in the Adjustment mode, automatically turns ON when the unit
returns to the normal use state.
Any input channel can be selected for adjustment no matter which Event or input channel is set on its
selection screen.
1 – 8 (default: 1)
ON (default), OFF
–∞, –70.0 dB to +10.0 dB (default: 0.0 dB), 0.5 dB steps
Setting Range
Input Channel Selection
Channel Control
Channel Gain
