A-9060dh and a-9120dh, A-9240sh, A-9120dl – TOA Electronics A-9060S User Manual
Page 97
97
70 V
OUT 1
70 V
OUT 2

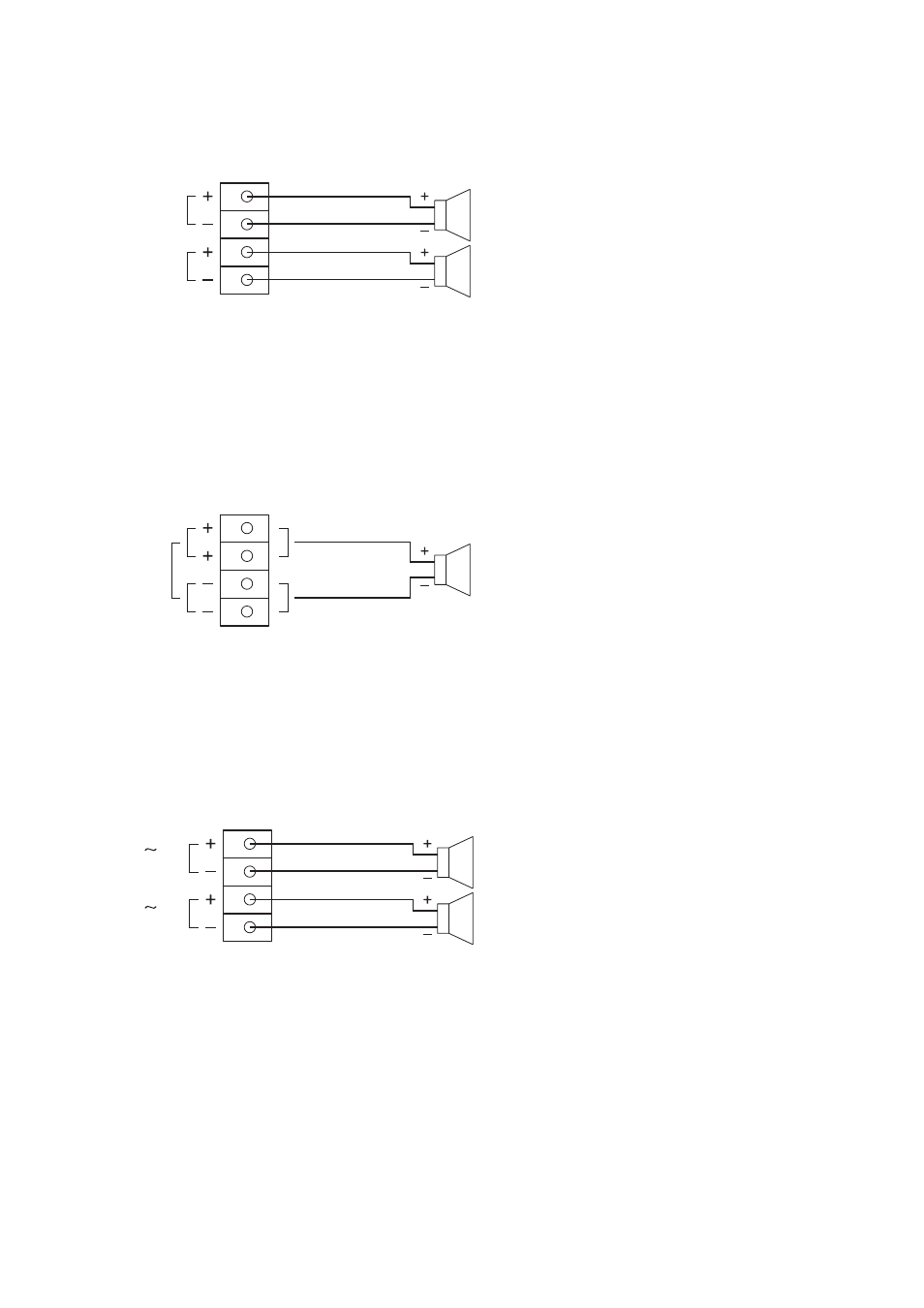

16.2.2. A-9060DH and A-9120DH
The speaker output terminals of the A-9060DH and A-9120DH are designed for 70 V line applications.
Both CH 1 and CH 2 outputs are provided on the 4P terminal block.
Connect the speaker cables to each positive terminal (+) and negative terminal (–) individually.
70 V
16.2.3. A-9240SH
The speaker output terminal of the A-9240SH is designed for 70 V line applications.
CH 1 output is provided on the 4P terminal block.
Connect the speaker cables to the positive (+) and negative (–) terminals.
4 16Ω
1
4 16Ω
2
16.2.4. A-9120DL
Connect the speaker of 4 – 16 Ω to the speaker output terminals of the A-9210DL.
Both CH 1 and CH 2 outputs are provided on the 4P terminal block.
Connect the speaker cables to each positive terminal (+) and negative terminal (–) individually.
