20 EN

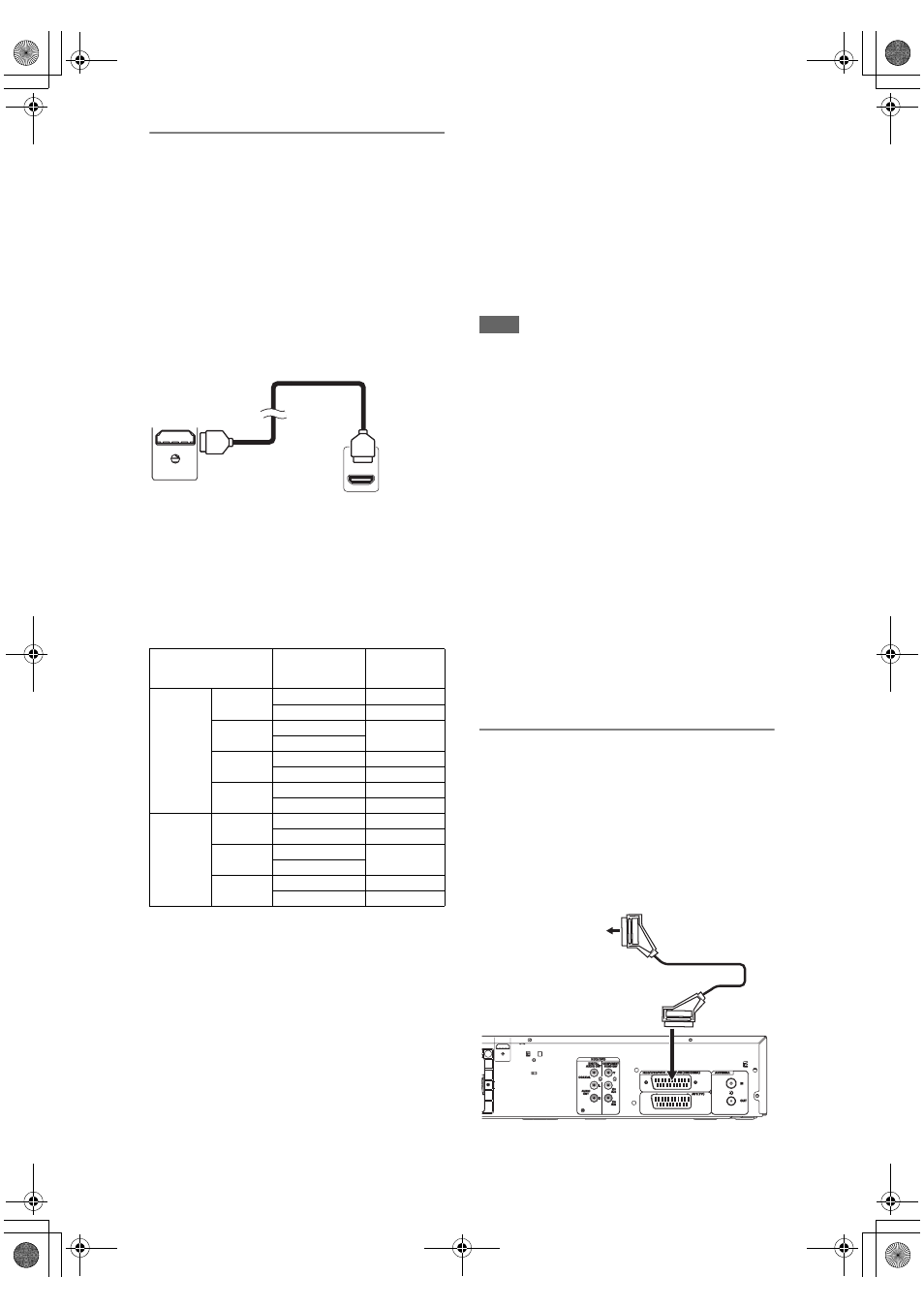

Connecting to a TV with an HDMI
Compatible Port
[HDMI CONNECTION]
A simple 1-cable connection with a device having an
HDMI (high-definition multimedia interface) connector
allows digital transfer of both digital video signals and
multi-channel audio signals. This is the best method
to connect this unit. It can minimise the deterioration
of image quality.
Use the HDMI cable (commercially available) for
connection.
Connect the HDMI output jack of this unit to the HDMI
input jack of TV.
Selecting HDMI mode
Press [HDMI] to select the HDMI output mode. The
output mode changes as follows every time [HDMI] is
pressed. 576p (PAL) / 480p (NTSC)
J 720p J 1080i
J 1080p (An HDMI mode that is not supported by the
display device will be skipped.)
Actual Output Modes by Media
For Audio CD, Video CD and MP3 files, 2 channel
PCM will be output regardless of the “Dolby Digital”
setting.
If the connected device is not compatible with HDMI
BITSTREAM, audio will be output as PCM even if you
select “Stream” in “Dolby Digital” setting.
(See page 75.)
Copyright protection system
To play back the digital video images of a DVD via an
HDMI connection, it is necessary that both the player
and the display device (or an AV amplifier) support a
copyright protection system called HDCP (high-
bandwidth digital content protection system). HDCP is
copy protection technology that comprises data
encryption and authentication of the connected AV
device. This unit supports HDCP. Please read the
operating instructions of your display device (or AV
amplifier) for more information.
* HDMI: High Definition Multimedia Interface
Note
• Because HDMI is an evolving technology, it is
possible that some devices with an HDMI input may
not operate properly with this unit.
• When using an HDCP-incompatible display device,
the image will not be viewed properly.
• This unit does not support Regza link or CEC
control.
• The audio signals from the HDMI connector
(including the sampling frequency, the number of
channels and bit length) may be limited by the
device that is connected.
• Among the monitors that support HDMI, some do
not support audio output (for example, projectors).
In connections with device such as this unit, audio
signals are not output from the HDMI output
connector.
• When this unit’s HDMI connector is connected to a
DVI-D compatible monitor (HDCP compatible) with
an HDMI-DVI conversion cable, the signals are
output in digital RGB.
• If the connected equipment is not compatible with
HDMI BITSTREAM, DTS sound will not be output.
• When the power failure occurs, or when you unplug
the unit, some problems in the HDMI setting might
occur.
Please check and set the HDMI setting again.
Connecting to an External Equipment
This unit has four input terminals which can be
selected using [INPUT SELECT
F] on the remote
control, AV1 or AV2 on the rear panel and AV3 or
AV4 on the front panel. Be sure that all the units are
switched off before making connections.
Recording from a DVD player, VCR, Satellite
Box or other Audio-Video equipment with a
Scart output socket (AV2)
Audio recording format
of the disc
Dolby Digital /
DTS / MPEG
setting of this unit
Actual output
DVD-video
Dolby
Digital PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
DTS
ON DTS
OFF -
MPEG
PCM 2channel PCM
Stream MPEG
DivX ®
Dolby
Digital PCM 2channel PCM
Stream Dolby Digital
MP3
PCM
2channel PCM
Stream
MP2
PCM 2channel PCM
Stream MPEG
HDMI IN
HDMI OUT
TV
To HDMI
input jack
this unit
HDMI cable (not supplied)
HDMI OUT
AV output jack
(Scart)
Scart cable (not supplied)
AV2 (DECODER)
