DIN Rail Mounting
Hardware Installation
To mount the B051-000 on a DIN rail:
1. Screw the mounting bracket to the back
of the B051-000 as described in Steps 1
and 2 of the Rack Mounting Section.
2. Use the larger screws supplied with the
Rack Mount Kit to screw the DIN rail

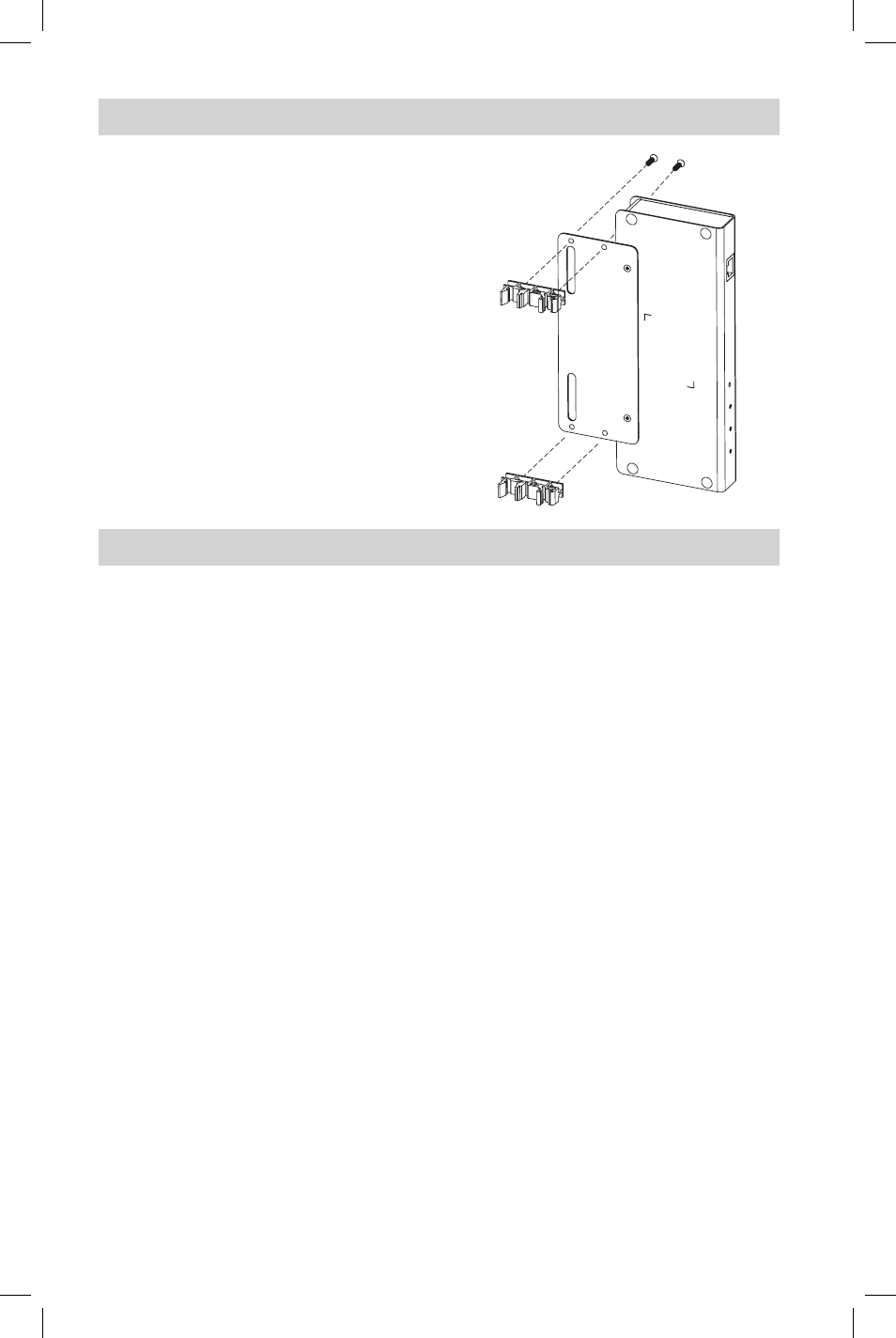

brackets to the mounting bracket – as
shown in the diagram:
3. Hang the unit on the DIN rail.
To install the B051-000, refer to both the installation diagrams on the next page and the
following steps:
1. To add a local console, connect the included USB – PS/2 Console connector kit to
the B051-000 Console port. Connect the local keyboard, monitor and mouse to the
connector ports on the USB – PS/2 Console connector kit.
Note: You can use any combination of keyboard and mouse connections. For example, you can use a PS/2
keyboard with a USB mouse.
2. The B051-000 comes with both a PS/2 and a USB KVM cable kit, allowing you to
connect to a KVM switch or server with either type of connector. Connect the Yellow
HD15 connector of the included PS/2 or USB KVM cable kit to B051-000 PC/KVM
port. Plug the connectors on the other end of the KVM cable kit into the keyboard, video
and mouse ports of the server or KVM switch that you are installing.
Note: The diagram shows a connection to a KVM switch with PS/2 mouse and keyboard ports using a PS/2
KVM cable kit.
3. If you want to use the virtual media function, plug the USB 2.0 Virtual Media Cable
provided with this package from a computer/server’s USB port into the B051-000
Virtual Media port.
Note: Virtual Media will not work if the cable is plugged into a USB port on a KVM switch that is used for
keyboard/mouse functionality, it must be connected to a computer/server or a KVM USB port that is strictly a
Hub port.
4. Plug a Tripp Lite Cat5e (N001- or N002-Series) or Cat6 (N201-Series) cable into the
B051-000 LAN port and then connect the other end to your network jack.
5. Plug the power adapter cable into the B051-000 power jack, and then plug the power
adapter into an AC power source.
Note: It is recommended that you plug the unit into a Tripp Lite Surge Suppressor, UPS or Line Conditioner to
help protect your system from sudden, transient increases and decreases in electrical power.
