The VXA-320 tape drive uses four LEDs to indicate its operational status, as
shown in
.
Note:
The LEDs are numbered 1 through 4 from left to right.

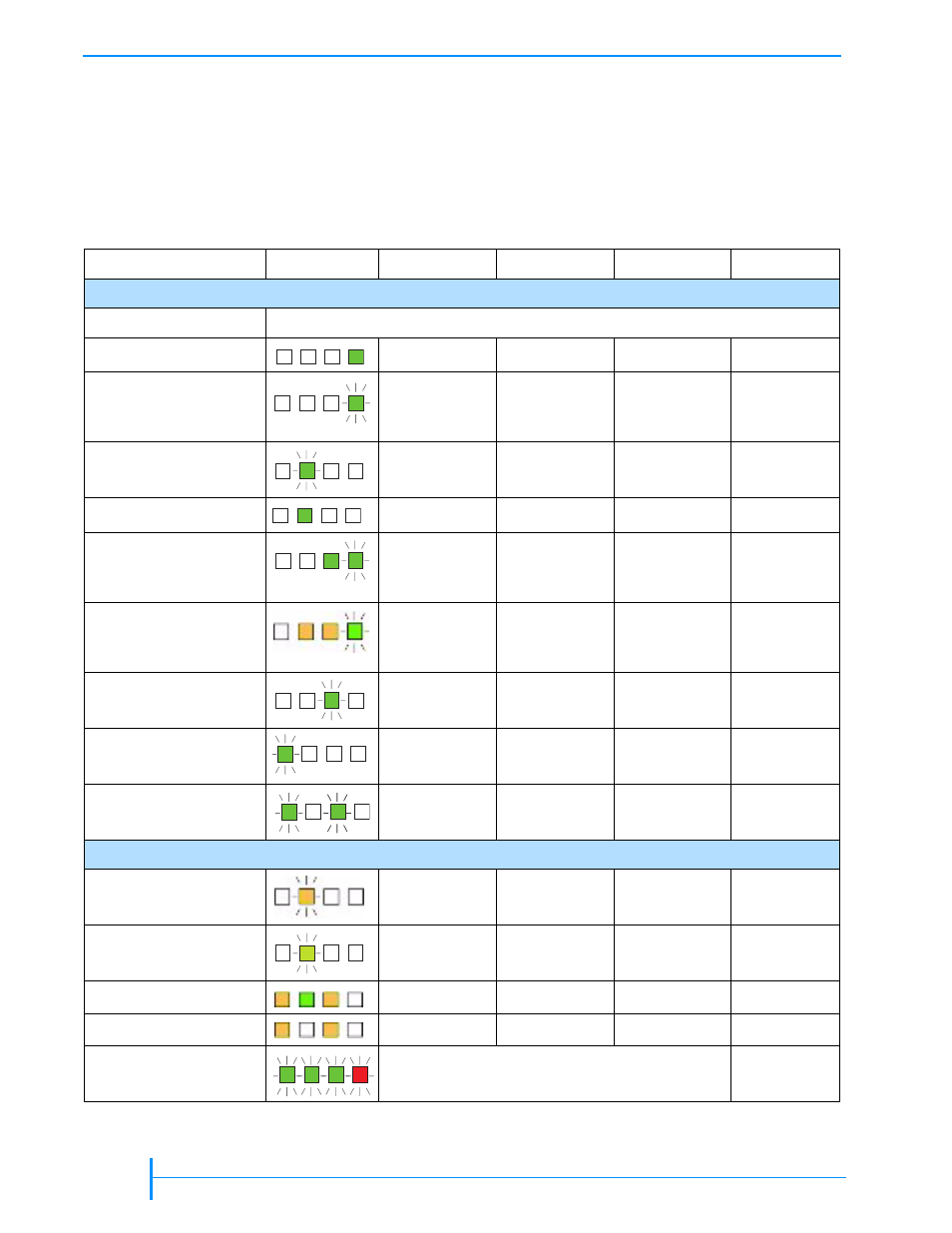

Table 3-1 LED states
Operation
LED Pattern
LED #1
LED #2
LED #3
LED #4
Operational Conditions
Power-on self-test
LEDs illuminate sequentially
a
No tape loaded
Off
Off
Off
Green
Interface activity; (LED
4 may flash with other
LED operations)
Off
Off
Off
Flashing
Green
Tape loading or
unloading
Off
Flashing
Green
Off
Off
Tape ready; idle
Off
Green
Off
Off
Reading
Off
Off
Green
Off or
Flashing
Green
Writing
Off
Amber or
Green
b
Amber
Off or
Flashing
Green
Space forward
Off
Off
Flashing
Green
Off
Space reverse or
rewinding
Flashing
Green
Off
Off
Off
Cleaning in process
Flashing
Green
Off
Flashing
Green
Off
Service Notification
Cleaning required
Off
Flashing
Amber
Off
Off
Cleaning tape used up
Off
Flashing
Green/Amber
Off
Off
Recoverable error
c
Amber
Green
Amber
Off or Green
Unrecoverable error
c
Amber
Off
Amber
Off or Green
Factory service
required
d
Flashing Green or Amber
Flashing Red
