12 PTAC-SVX01C-EN
Installation
Installation Procedure
WARNING
Hazardous Voltage w/
Capacitors!
Disconnect all electric power,
including remote disconnects before
servicing. Follow proper lockout/
tagout procedures to ensure the
power cannot be inadvertently
energized. For variable frequency
drives or other energy storing
components provided by Trane or
others, refer to the appropriate
manufacturer’s literature for
allowable waiting periods for
discharge of capacitors. Verify with
an appropriate voltmeter that all
capacitors have discharged. Failure
to disconnect power and discharge
capacitors before servicing could
result in death or serious
injury.Install components in this
order.
1. Remove rear closure panel from
wall sleeve.
2. Install drain kit (optional).
3. Install outdoor air grille in wall
sleeve.

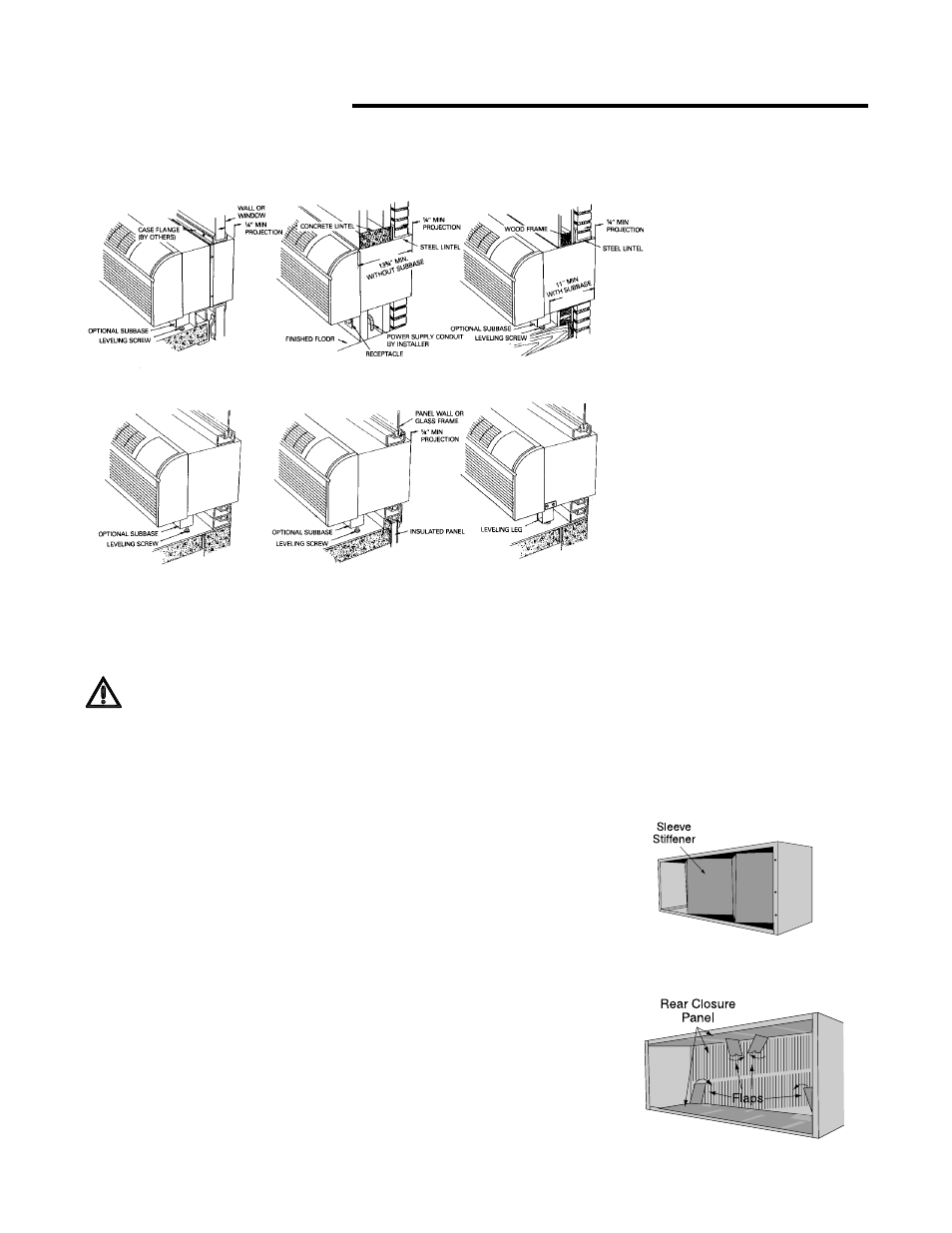

Figure 9. Panel wall installation
4. Install wall sleeve in wall
opening.
5. Install unit chassis in wall sleeve.
6. Install unit power supply.
• Power cord
• Hard wire kit
• Subbase kit
• Electrical receptacle
• Power switch
• Cicuit breaker
7. Install unit controls.
• Display module
• Remote wall thermostat
8. Configure display module
settings.
9. Progammable settings.
Step 1. Remove rear closure
panel from wall sleeve.
1. Remove the zigzag folded
cardboard sleeve stiffener. See
Figure 10 . Remove the rear
closure panel by folding the four
flaps as indicated in
Figure 11
Figure 10. Wall sleeve stiffener
Figure 11. Sleeve rear closure
panel
